Source:Wuxi Tuanjiuhe Technology Co., Ltd Release time:2022-03-21 09:38:26 Author:610

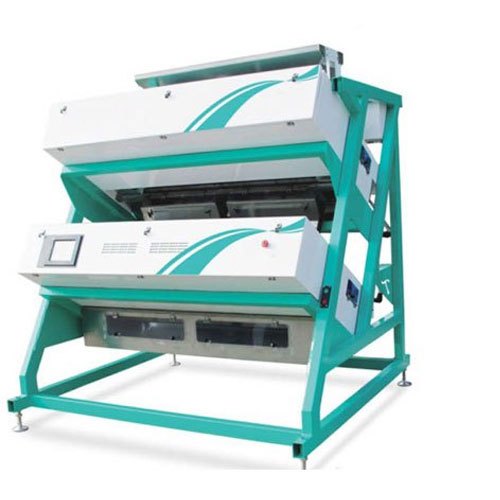

METKEY Multi-layer Tea Color Sorter is a high-tech optoelectronic machinery and equipment, which is based on the color difference between tea stalk, yellow leaf and the accepted, used high resolution CCD optical sensor to featured.
METKEY Multi-layer Tea Color Sorter used to black tea, green tea, white tea, dark tea, Tieguanyin, Pu'er tea and other varieties. It used the new anti-rust chutes, non-toxic harmless, in line with international food safety standards, used tea professional channel, not blocking material, smooth and even decline, greatly reducing the rate of broken tea, double layer sorting can achieve sorting twice, reduce the feeding time, color sorting performance more accurate, higher output. True color sensor, the best sorting equipment for the tea industry.
1.Design of mechanical-electrical integration:,The integration of sorting cabinet and electrical cabinet results in a more stable overall mechanical structure, prolonging the service life of the machine and making the maintenance much easier.
2.The original material-distributing system in the industry,The latest-designed Bridge-type material-distributor is featured with low noise, low jitter amplitude, high vibration frequency, and more even sorting, settling the problems of uneven sorting and underproduction, which are often seen in currently-used material-distributor matched with three-tier tea-sorting machine.
3. Utilization of air cooling system ,This system settles the problems of high temperature, heavy energy loss, light source instability, and short service life which are caused by a longtime-working LED light source.. In addition, the system ensures an endurable light source used in a constant temperature.
4.Solution of independent sorting mode,For each tier, a sorting solution of either color-based or shape-based can be set separately, and a combining sorting solution of color&shape-based can also be chosen. You can choose the solution freely.
5.Unique design of broadening sorting chamber,This design can solve the problem of partial tea-sorting caused by swirling air, increase the output and reduce the crashed rate during the course of tea sorting.
6.The original blowing nozzle, together with the valve-driven mode, helps to accelerate the response speed, strike more accurately, reduce the material taking-out ratio, increase the output, as well as decrease gas consumption by 20%.
7.Cloud object link system,Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.
8.The original design of intelligent LED shadowless cold light source system, having a light emitting rate is high, the use of longer and stronger anti disturbance, and easier to identify, judge more easily, don’t more precision characteristics, meet a variety of tea 360 degree of shape and color selection requirements.
9.The world’s top custom industrial CCD sensor and color selection of the lens, high-definition imaging technology, taking pictures of the selected tea images, can be selected in the different color and shape of the tea to define the color. The minimum resolution in the range of o.o8MM2, the tiny spots, black spots signal amplification processing needle.
10.The three layer structure, the integration of a combination of a complete separation, improve the color accuracy, reduce the broken rate. At the same time, convenient installation and daily maintenance, to meet the needs of different customers sorting.
Model |
T2-4 |
Output(kg/h) |
≤600 |
Carryover(bad:good) |
≥5:1 |
Accuary(%) |
≥99 |
Voltagev/Hz) |
380/50 |
Power(Kw) |
3.0 |
Air Pressure(Mpa) |
0.6-0.8 |
Consumption (L/min) |
<3000 |
weight (Kg) |
1500 |
Dimensions(mm) |
2036*1877*2700 |
Note: the above parameters to contain mixed 3% green tea as an example, the output will be based on the raw material with different rate of different; at the same time, the main external voltage of AC380/50HZ (three-phase five wire)
