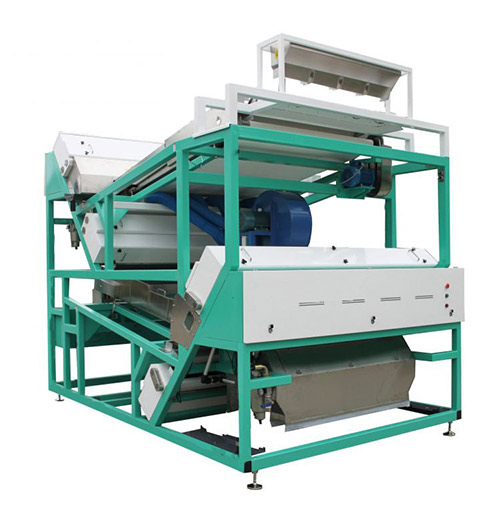

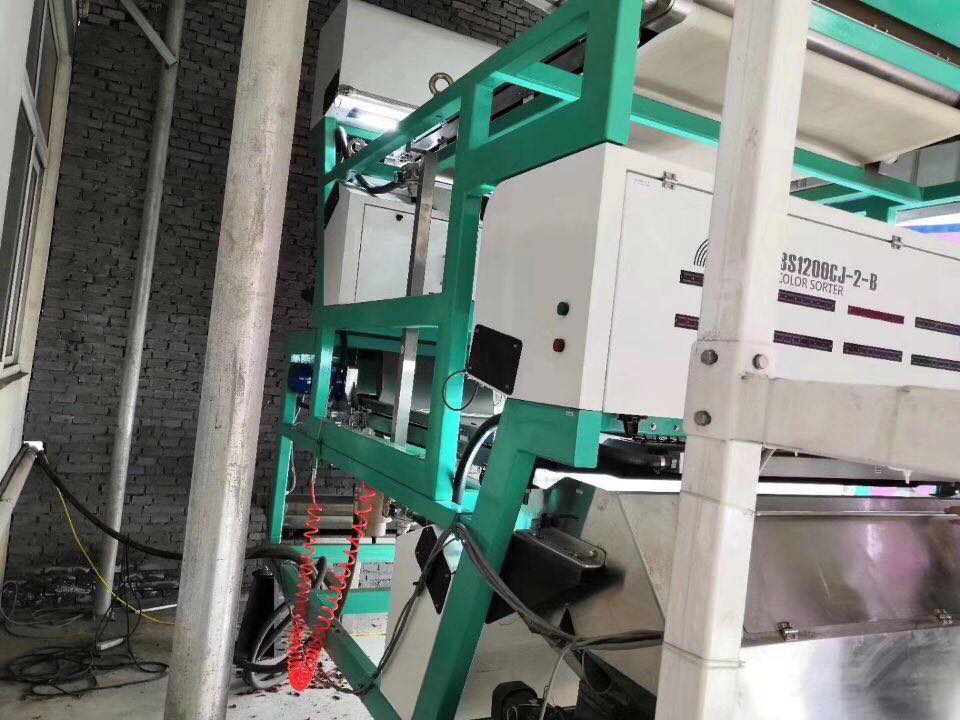

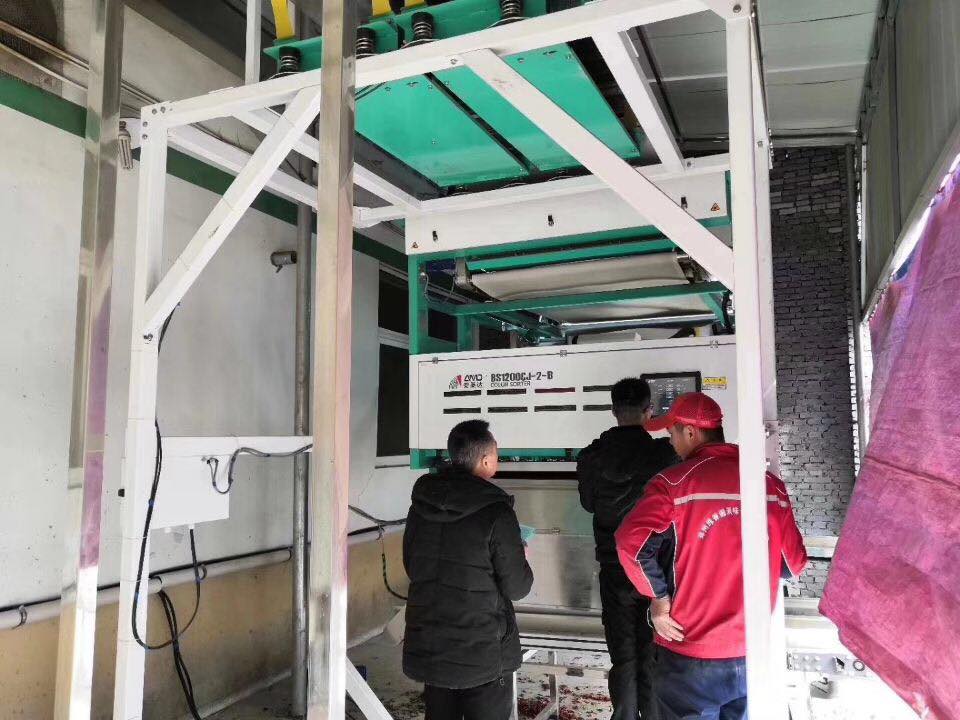

METKEY Belt Color Sorter For Red Chili is a mature and professional color sorting machine for chili pepper color sorting.
Belt Color Sorter For Red Chili Features

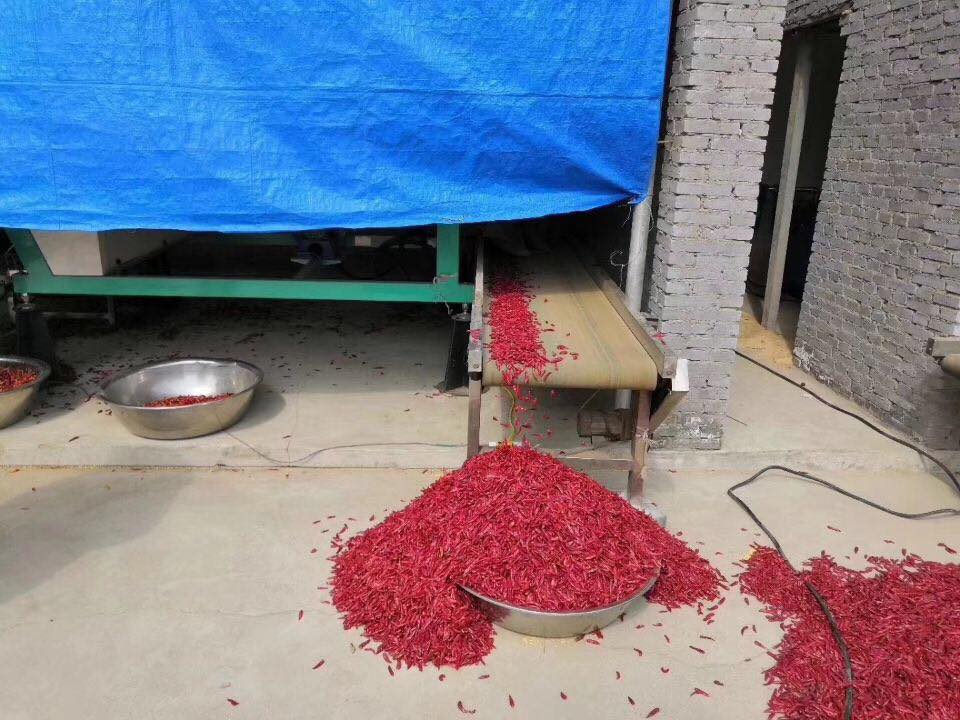

The featured belts are used to transport objects to be screened to the image acquisition area.
High Definition CCD Camera– Collecting a high range of material Red, green blue color detection with high resolution.
High Definition Sensor– Sensor uses DSP+FPGA, linear screening technology to differentiate in different colors.
Ejector Assembly– Helps to improve accuracy level, defective product rejection efficiency. SG is adopting the solenoid valves which support high-frequency sorting.
Damage Rate is Low
During the process of transporting the tracked product to the sorting area, the product remains relatively stationary between the track and the track, thereby reducing collisions between the products and reducing breakage.
Lightweight product screening
The crawler has a wide range of applications. The most unique advantages are lightweight product screening to sort light things.
The selection rate is high.
The belt conveys the material smoothly and steadily. The material is not embossed for color recognition while reducing the takeout rate.
Irregular products screening
METKEY Belt Color Sorter help to sort products with large volumes as well as irregular shapes products, However, the chute color sorter is designed according to the shape and size of the product, so the range of screening is relatively narrow.
|
Model |
MKBCS640B |
MKBCS1280B |
MKBCS1600B |
|
Output（t/h） |
1.2-6 |
2.5-12 |
3.2-15 |
|
Carryover (bad: good) |
≥15：1 |
≥15：1 |
≥15：1 |
|
Accuracy (%) |
≥99 |
≥99 |
≥99 |
|
Voltage (V/Hz) |
220V/50HZ |
220V/50HZ |
220V/50HZ |
|
Power (Kw) |
1.0-1.3 |
1.6-2.6 |
2.0-3.3 |
|
Air pressure (Mpa) |
0.6-1.0 |
0.6-1.0 |
0.6-1.0 |
|
Consumption (L/min) |
＜1024 |
＜2048 |
＜2560 |
|
Weight (Kg) |
1000 |
1360 |
1900 |
|
Dimensions (mm) |
3108*993*1680 |
3108*1986*1680 |
3108*2306*1680 |
