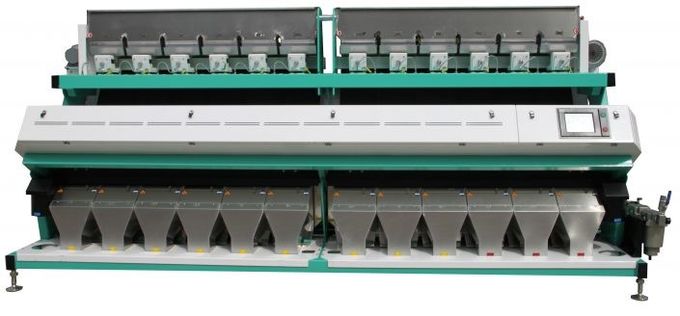

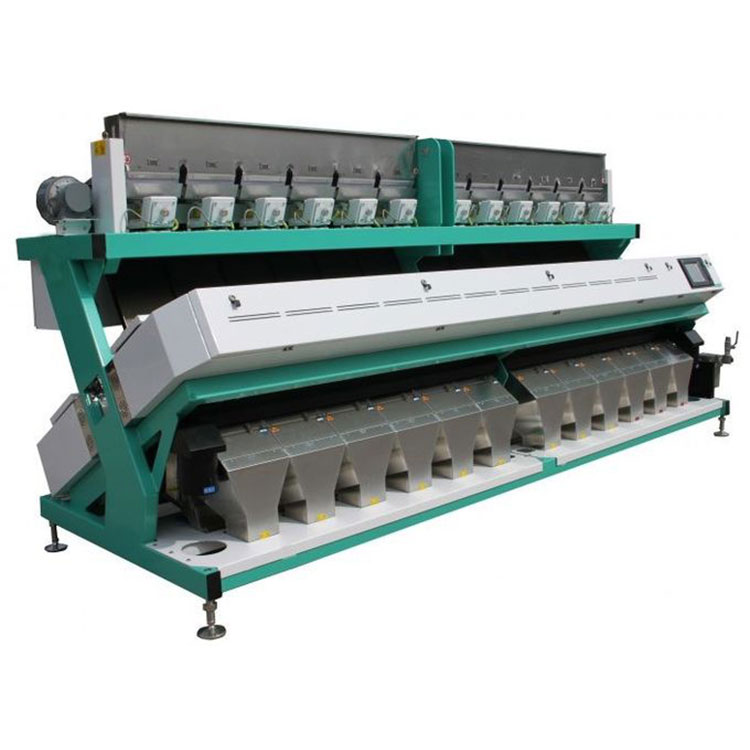

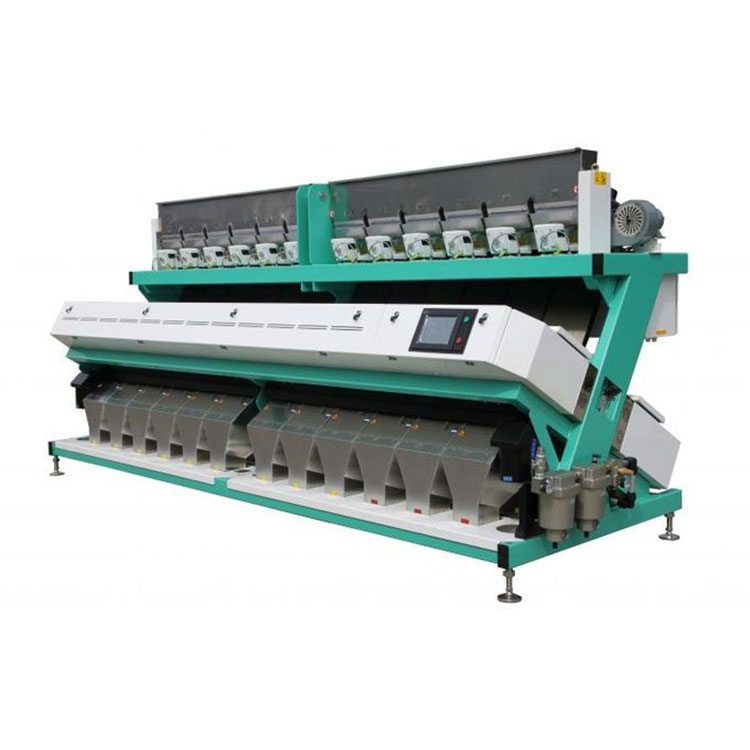

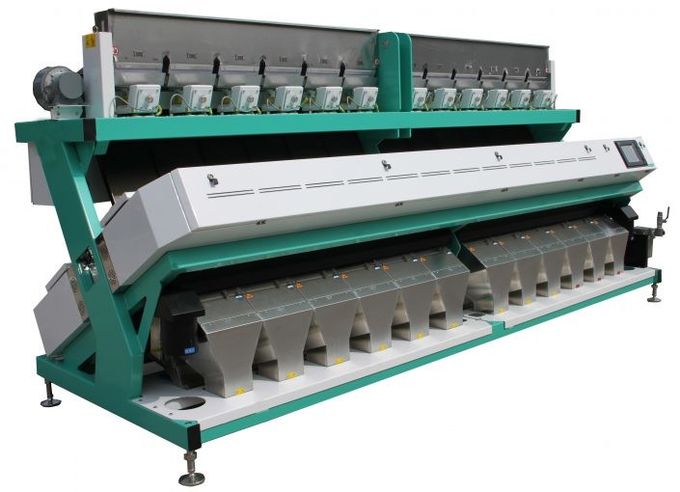

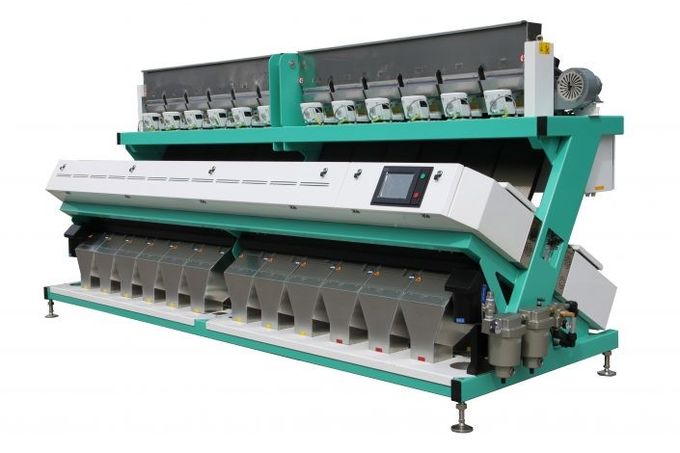

Large Capacity Rice Color Sorter

  • Large Capacity Rice Color Sorter adopts the most advanced CCD sensor technology and high-speed micro spraying value to achieve the different qualified rice grains sorting process. The whole machine is composed of a feeding system,conveying device, sorting system air-operated system, discharging device, and machine body. All parts could efficiently work together without barriers. Only do you easily operate the control cabinet, and the sorted grains will be accomplished with very high effectiveness. This machine can identify the 0.8mm scope of Heterochromatic areas for the rice of light yellow, micro color spot, and tiny black point.
Direct supply from the manufacturer
Order phone：+86-18012365661
E-mail：alexzhang@metkeycolorsorter.com

Detail


Large Capacity Rice Color Sorter Specifications:

Model

Output(T/H)

Carryover

Power(KW)

Voltage

Weight(kg)

Dimension(mm)

GS1

0.5-3

>10:1

0.3-0.5

220V/50HZ

240

975*1550*1400

GS2

1-6

>10:1

0.4-0.65

220V/50HZ

500

1240*1705*1828

GS3

1.5-9

>10:1

0.7-1.1

220V/50HZ

800

1555*1707*1828

GS4

2-12

>10:1

0.7-1.1

220V/50HZ

1000

1869*1707*1828

GS5

2.5-15

>10:1

0.7-1.1

220V/50HZ

1100

2184*1707*1828

GS6

3-18

>10:1

1.1-1.9

220V/50HZ

1350

2500*1707*1828

GS7

3.5-21

>10:1

1.1-1.9

220V/50HZ

1350

2814*1707*1828

GS8

2.5-15

>10:1

1.3-2.2

220V/50HZ

1500

3129*1707*1828

GS10

5-30

>10:1

1.4-2.3

220V/50HZ

1750

3759*1710*1828

GS12

4-25

>10:1

1.4-2.3

220V/50HZ

1900

4389*1710*1828



Large Capacity Rice Color Sorter Advantages


1. The system features a high quality reject system and premium LED light system. The CCD color sorter machine for rice is available in a variety of configurations ranging from a single chute to a 12 chute model to meet your rice processing demands.

2. High Resolution Colour CCD Image Acquisition System-The high resolution CCD system has the sensory ability of human eye with a maximum resolution is up to 0.15mm. Coupled with a high precision lens, the system captures clear images and identifies small defects and spots on raw materials.

3. Flexible Configuration & Variable Light Source-The LED lighting system has a long service life, low energy consumption and consistent performance. The light source can also be customized, based on the requirements of the customer and raw materials being processed.

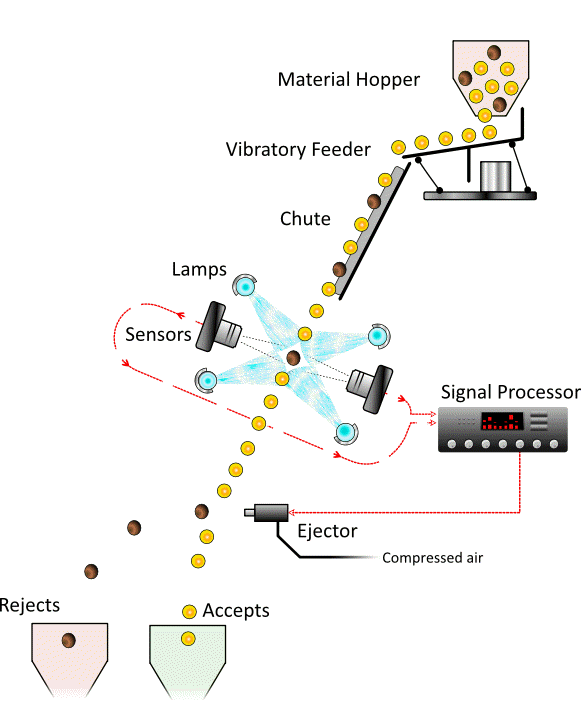

The Principle of Large Capacity Rice Color Sorter

Color sorter's working principle is according to the difference of the optical properties of the material, use photoelectric detection technology automatic sorting the heterochromatic granule from raw material.
Colour sorters or color sorters (sometimes called optical sorters or digital sorters or electronic colour sorters etc.) are machines that are used on the production lines in bulk food processing and other industries.They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.

Example of sorting
