Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.

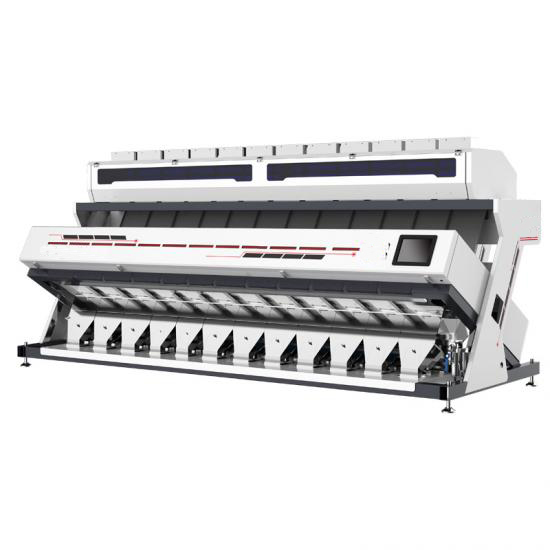

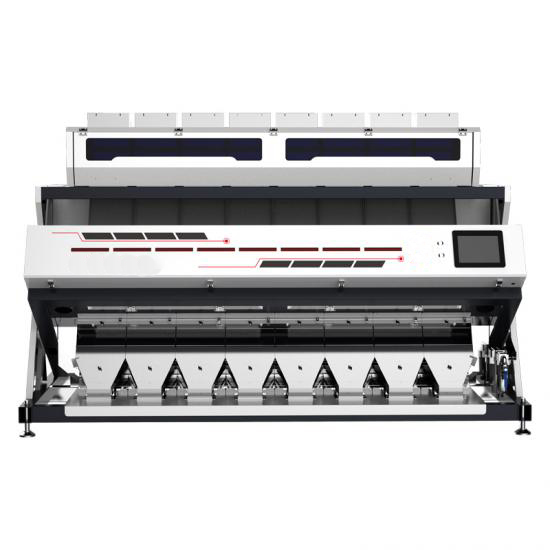

AI Smart Rice Color Sorter Introduction
Core Power
Ffth generation FPGA smart chip
Chip storage capacity increased by 100%
Chip computing unit increased by 40%
40%reductionin chip power consumption
Quality by core
Intelligent quality control
Realtime automatic capture and
analysis of raw grain
Consistent results
Smart Core
Balanced system design,optimalintegrationof hardware and software Realtime selfinspetion Seff protection,low falure and stable operation Extendedlife of componentsand complete machine
Delivery core
Industry mainstreamchips,commurnicationmodules
2020iteration new productstake thelead One step ahead,the future isexpected Reserved port,unlimited potential, utra-highvaluepreservation

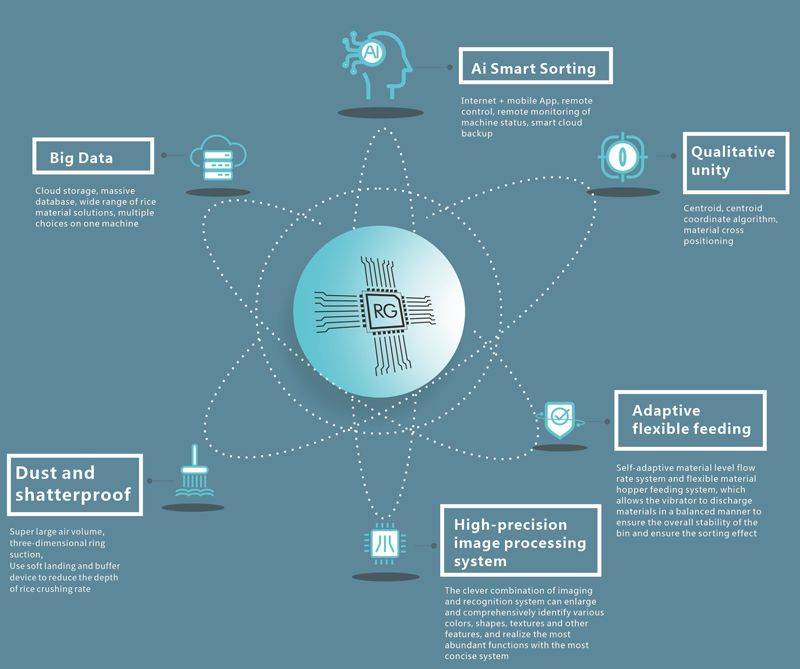

Big Data
Cloud storage,massive database,wide range of ricematerial solutions,multiple choices on one machine
Ai Smart Sorting
Internet+mobile App,remote control,remote monitoring of machine status,smart cloud backup
Qualitative unity
Centroidcentroid coordinate algorithm, material cross positioning
Dust and shatterproof
Super large air volume, three-dimensional ring suction, Use soft landing and buffer device to reduce the depth of rice crushing rate
High-precision image processing system
The clever combination of imaging and recognition system can enlarge and comprehensively identify various colors,shapes,textures and other features,and realize the most abundant functions with the most concise system
Adaptive flexible feeding
Self-adaptive material level flowrate system and flexible material hopper feeding system,which allows the vibrator to discharge materials in a balanced manner to ensure the overall stability of the bin and ensure the sorting effect
|
Model |
Output ( T/h ) |
Carryover rate (bad:good) |
Accuracy(%) |
Voltage |
Power(KW) |
Weight(Kg) |
Dimension(mm) |
|
AIS5-64X |
3-8 |
100:1 |
>99.95% |
220/50 |
3.2-4.0 |
1280 |
2201×1616×2000 |
|
AIS6-64X |
4.5-9 |
100:1 |
>99.95% |
220/50 |
4.2-4.6 |
1490 |
2516×1616×2000 |
|
AIS7-64X |
5-10 |
100:1 |
>99.95% |
220/50 |
4.8-5.5 |
1680 |
2831×1616×2000 |
|
AIS8-64X |
6-12 |
100:1 |
>99.95% |
220/50 |
5.6-6.0 |
1860 |
3146×1616×2000 |
|
AIS10-64X |
7-16 |
100:1 |
>99.95% |
220/50 |
6.5-7.5 |
2180 |
3776×1616×2000 |
|
AIS12-64X |
9-12 |
100:1 |
>99.95% |
220/50 |
7.8-8.5 |
2620 |
4406×1616×2000 |
The main specifications and parameters of the AI Smart Rice Color Sorter generation AIS series intelligent rice color sorting machine are as follows (take the rice containing 0.5% contanimation as an example, the specific indicators will change due to different rice types and impurities).
