Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
Rice Colour Sorter, Rice Color Sorter Machine, Rice Colour Sorter Machine manufacturer / supplier inChina, offering 5 Chutes 320 Channels Grain Rice Colour Sorter Machine

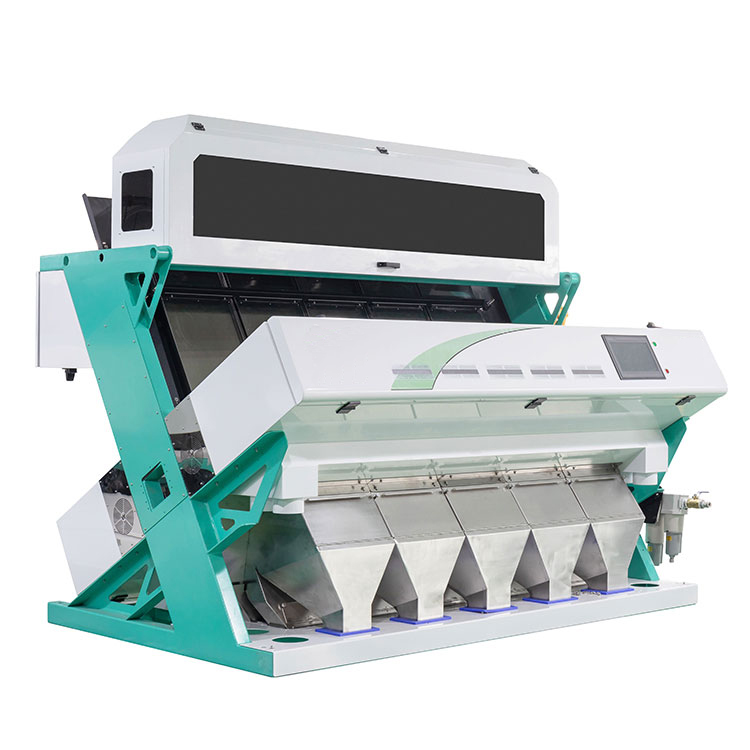

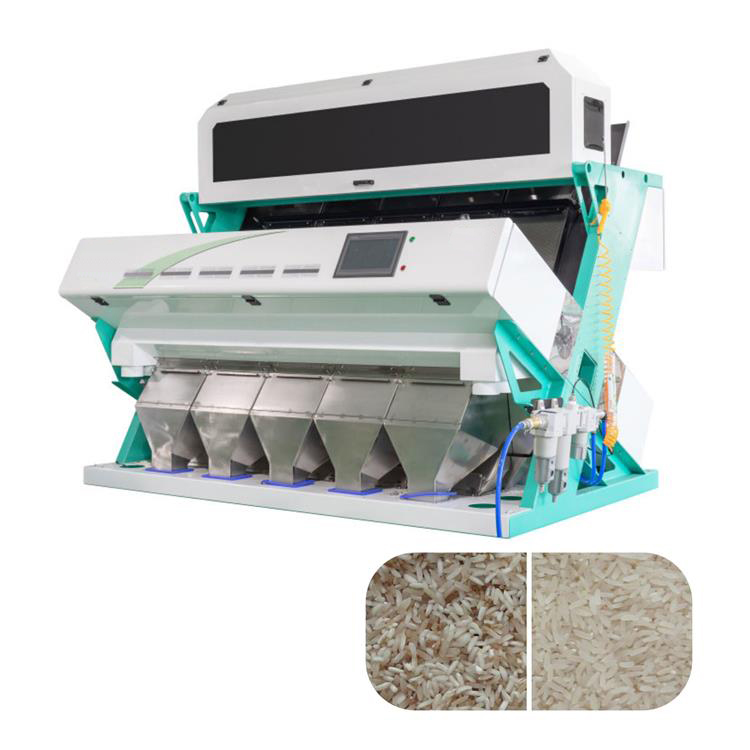

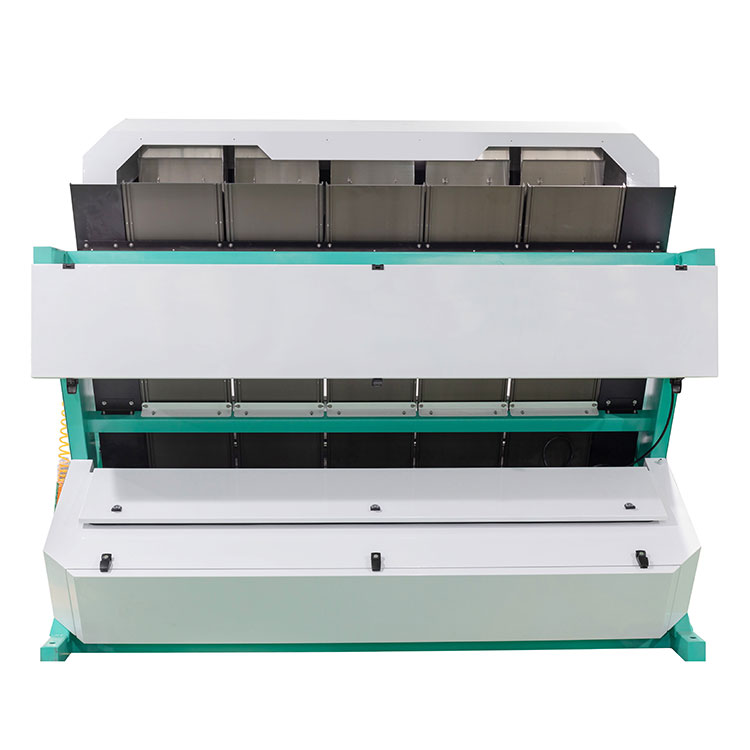

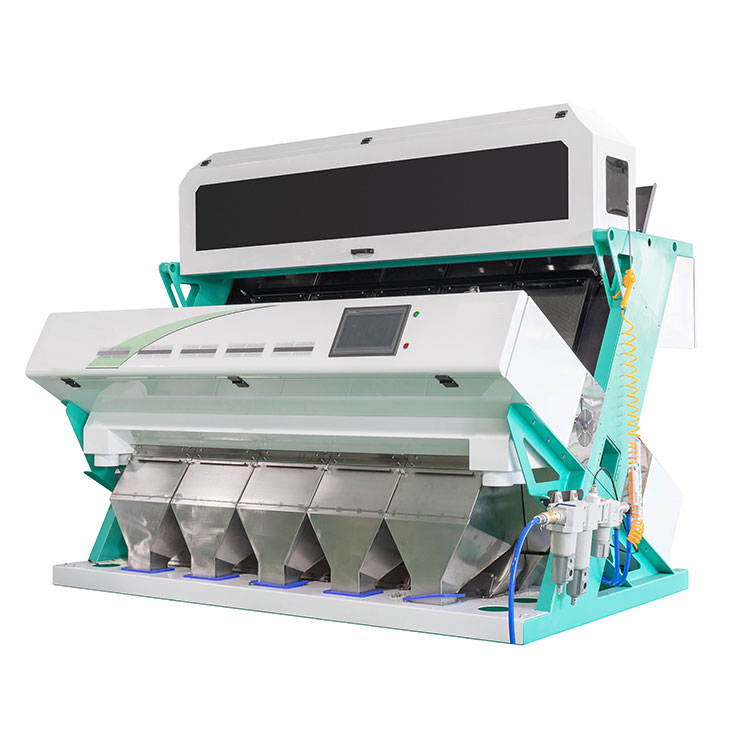

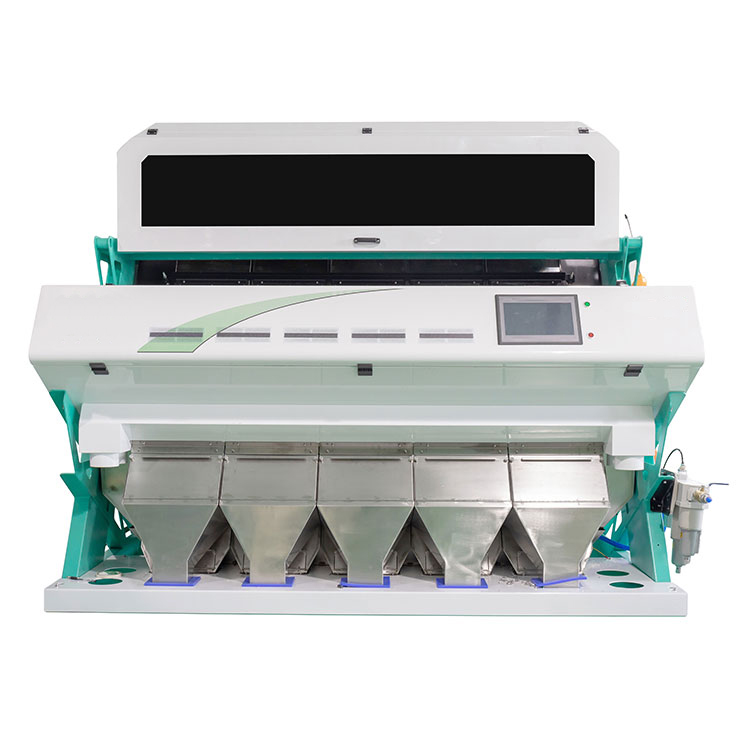

METKEY5 Chutes Rice Color Sorter adopts the most advanced CCD sensor technology and high-speed micro spraying value to achieve the different qualified rice grains sorting process. The whole machine is composed of a feeding system, conveying device, sorting system air-operated system, discharging device, and machine body. All parts could efficiently work together without barriers. Only do you easily operate the control cabinet, and the sorted grains will be accomplished with very high effectiveness. This machine can identify the 0.8mm scope of Heterochromatic areas for the rice of light yellow, micro color spot, and tiny black point.
| Model |
MRCS-68 |
MRCS-136 |
MRCS-272 |
MRCS-408 |
MRCS-612 |
MRCS-680 |
|
Output(kg/h) |
<500 |
<1000 |
<2000 |
<3000 |
<4000 |
<5000 |
|
Sorting Accuracy(%) |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
|
Voltage (v/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
|
Power Supply(Kw) |
1.0-1.3 |
1.4-1.8 |
2.5-2.9 |
4.8-5.2 |
4.8-5.2 |
8.5-10.9 |
|
Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Air Consumption(L/min) |
<1000 |
<1800 |
<3200 |
<4800 |
<4800 |
<6100 |
|
Weight(Kg) |
260 |
440 |
820 |
1180 |
1620 |
2200 |
|
Dimension(mm) |
950*1510*1428 |
1290*1510*1770 |
2010*1530*2100 |
2680*1530*2100 |
3710*1530*2100 |
4200*1530*2250 |

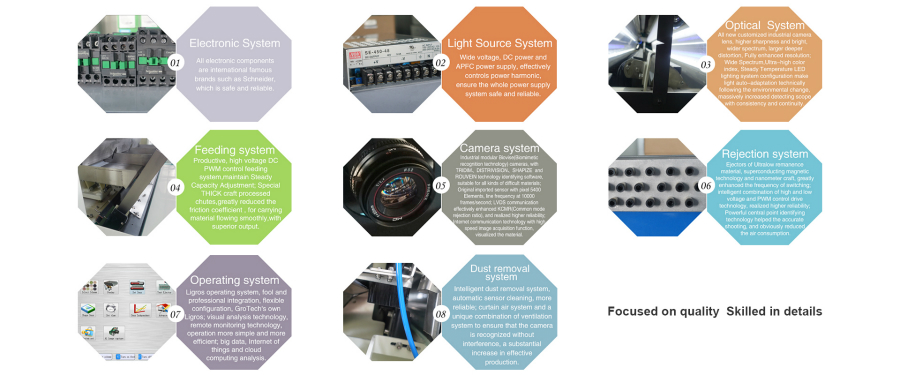

1. The system features a high quality reject system and premium LED light system. The CCD color sorter machine for rice is available in a variety of configurations ranging from a single chute to a 12 chute model to meet your rice processing demands.
2. High Resolution Colour CCD Image Acquisition System-The high resolution CCD system has the sensory ability of human eye with a maximum resolution is up to 0.15mm. Coupled with a high precision lens, the system captures clear images and identifies small defects and spots on raw materials.
3. Flexible Configuration & Variable Light Source-The LED lighting system has a long service life, low energy consumption and consistent performance. The light source can also be customized, based on the requirements of the customer and raw materials being processed.

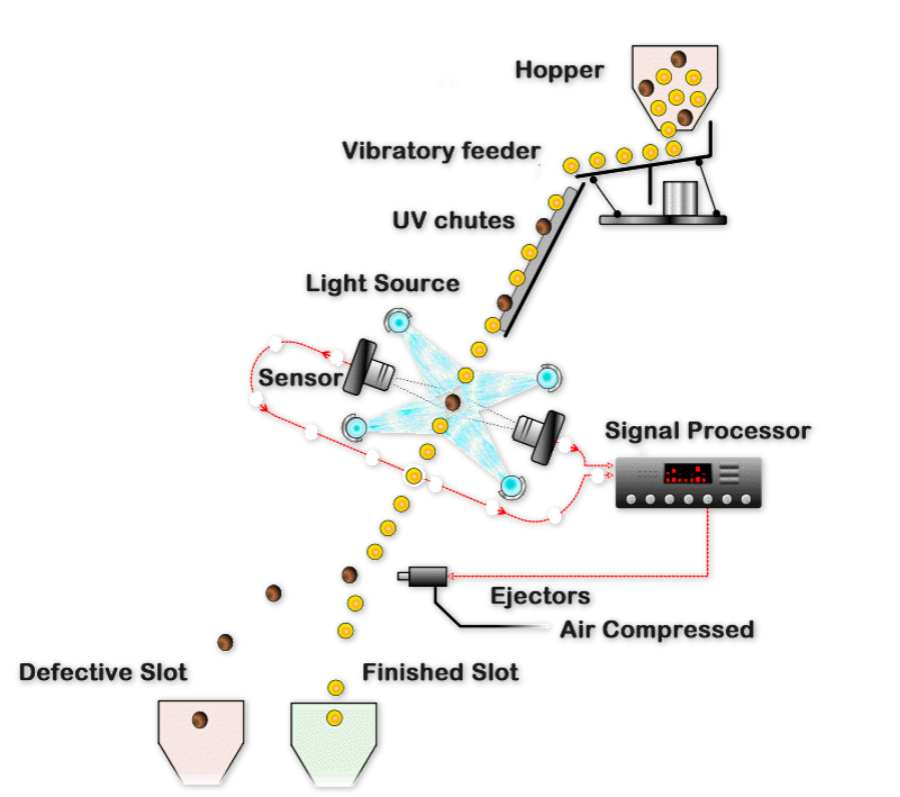

Color sorter's working principle is according to the difference of the optical properties of the material, use photoelectric detection technology automatic sorting the heterochromatic granule from raw material.
Colour sorters or color sorters (sometimes called optical sorters or digital sorters or electronic colour sorters etc.) are machines that are used on the production lines in bulk food processing and other industries.They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.
