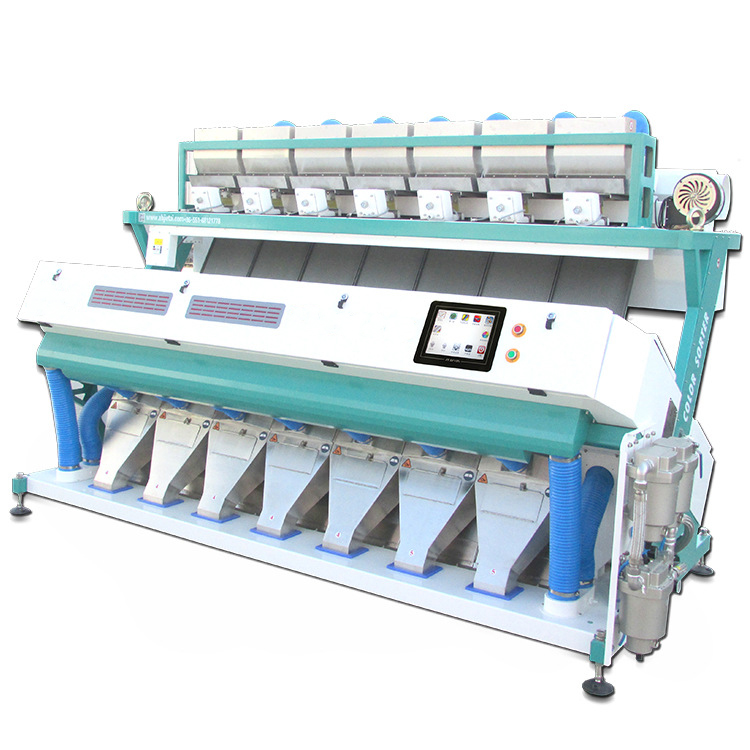

CCD Grain Colour Sorter

  • METKEY CCD Grain Colour Sorter offer industry leading accuracy and precision to help you improve product quality and maximize product output.
    The system features a high quality reject system and premium LED light system. The Grain Colour Sorter is available in a variety of configurations ranging from a single chute to a 12 chute model to meet your grain processing demands.
Direct supply from the manufacturer
Order phone：+86-18012365661
E-mail：alexzhang@metkeycolorsorter.com

Detail



CCD Grain Colour Sorter Description

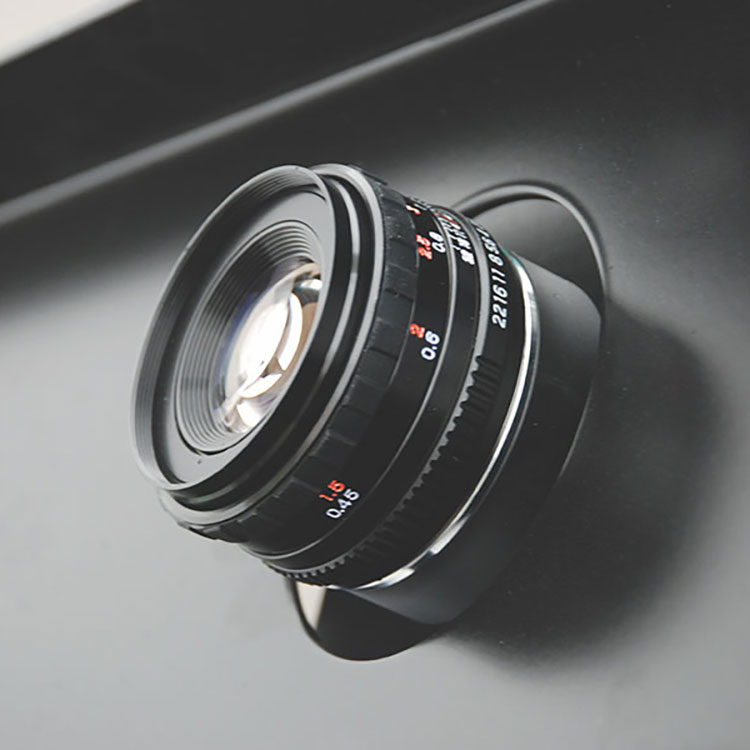

1.High Resolution Colour CCD Image Acquisition System – The high resolution CCD system has the sensory ability of human eye with a maximum resolution is up to 0.15mm. Coupled with a high precision lens, the system captures clear images and identifies small defects and spots on raw materials.
2.Flexible Configuration & Variable Light Source – The LED lighting system has a long service life, low energy consumption and consistent performance. The light source can also be customized, based on the requirements of the customer and raw materials being processed.
3.Dedicated Image Processing Algorithm – Raw product can be analyzed based on shape and colour. For materials with complex colours, the machine sorts materials more directly and accurately by using HSV-changed colour space sorting method.

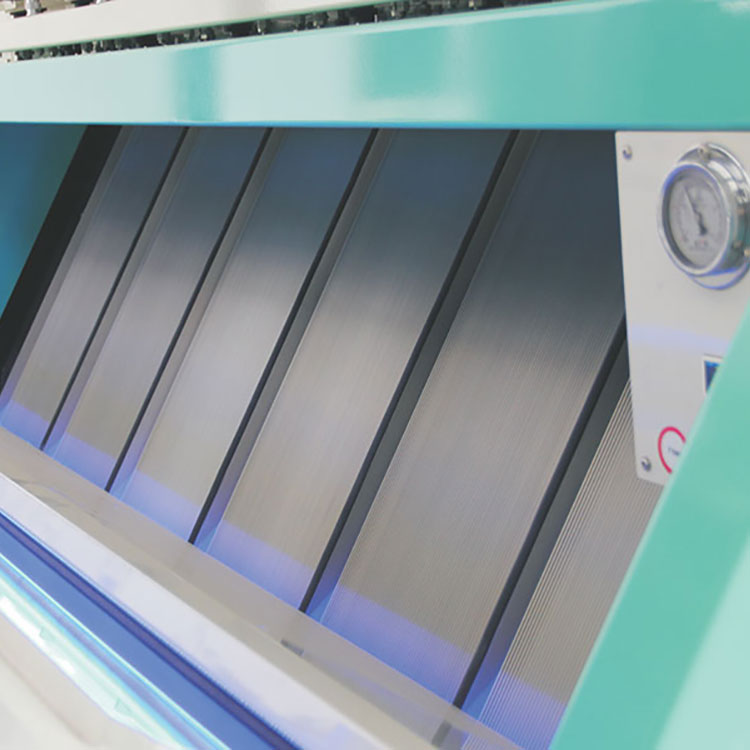

4.Unique Trough Configuration – The special anodising technology complies with international standards. The system can be equipped with cascade plate and narrow chute channel to meet the colour sorting for various materials.
5.High Quality Solenoid Valve – The high frequency ejector has a long service life and has very low air consumption, providing the highest capacity rejection output.The system is available with different sizes of solenoid valves according to the raw product being sorted.
6.Excellent Rejection Rate – The advanced image acquisition system features intelligent processing algorithms, a high quality nozzle system and excellent elimination rate.

7.Simple Easy to Use Touchscreen Interface – The graphical interface is easy to use and learn for both technicians and line operators.



CCD Grain Colour Sorter Technical parameter


Model

6SXZ-126

6SXZ-189

6SXZ-252

6SXZ-315

6SXZ-84

6SXZ-126

6SXZ-168

6SXZ-210

Product Output (t/h)

0.5~2.5

1.0~4.0

1.5~5.0

2.0~6.0

Sorting Accuarcy (%)

99.9

99.9

99.9

99.9

Optimized Carryover (Bad:Good)

8:1

8:1

8:1

8:1

Weight (kg)

617

748

890

1043

Resolution (mm2)

0.04

0.04

0.04

0.04

Power (kw)

1.4

1.8

2.2

2.6

DimensionLWH(mm)

133716362070

165116362070

196516362070

227916362070

Power Supply (V/Hz)

220/50(110/60)

220/50(110/60)

220/50(110/60)

220/50(110/60)


Model

6SXZ-378

6SXZ-441

6SXZ-630

6SXZ-750

6SXZ-252

6SXZ-294

6SXZ-420

6SXZ-504

Product Output (t/h)

2.5~7.0

3.0~8.0

3.5~9.0

4.0~10.0

Sorting Accuarcy (%)

99.9

99.9

99.9

99.9

Optimized Carryover (Bad:Good)

8:1

8:1

8:1

8:1

Weight (kg)

1170

1281

1792

2134

Resolution (mm2)

0.04

0.04

0.04

0.04

Power (kw)

3.0

4.5

6.0

8.0

DimensionLWH(mm)

259316362070

297615091945

227428242190

255028242024

Power Supply (V/Hz)

220/50(110/60)

220/50(110/60)

220/50(110/60)

220/50(110/60)



Descriptions:：

1. The above color sorting performance takes about 2% wheat as example.Specific indicator will change with different materials and impurities.

2. The product is updated without further notice, but the fact of machine will prevail.

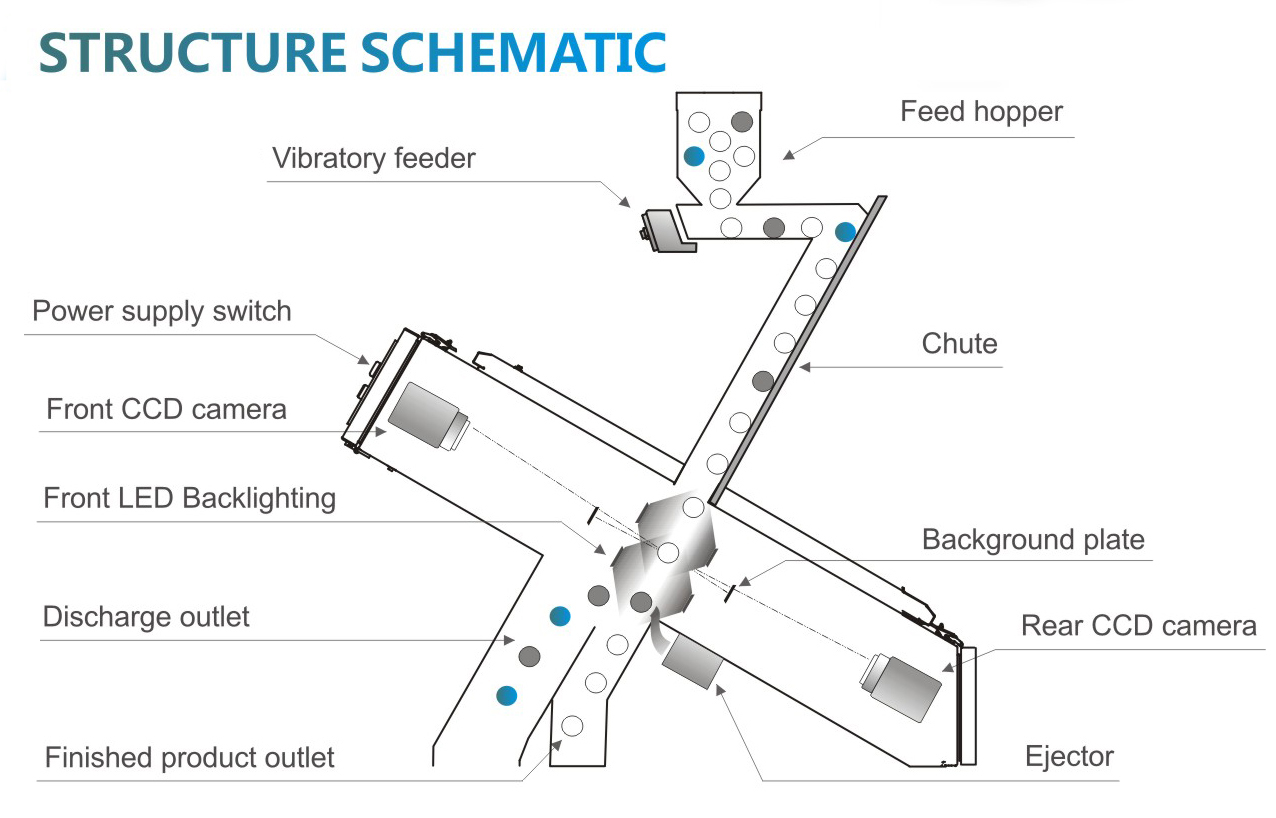

CCD Grain Colour Sorter Structure



Examples Of Sorting

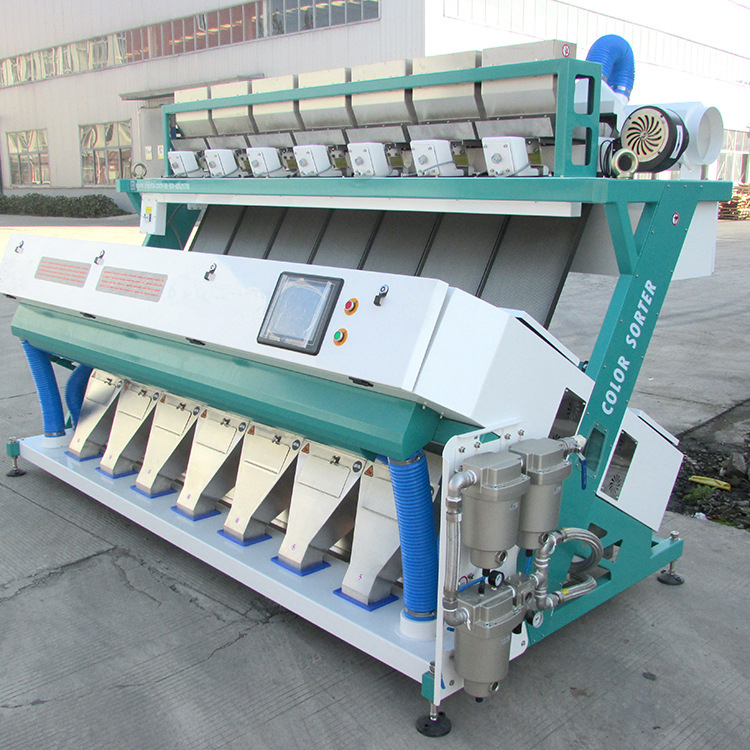

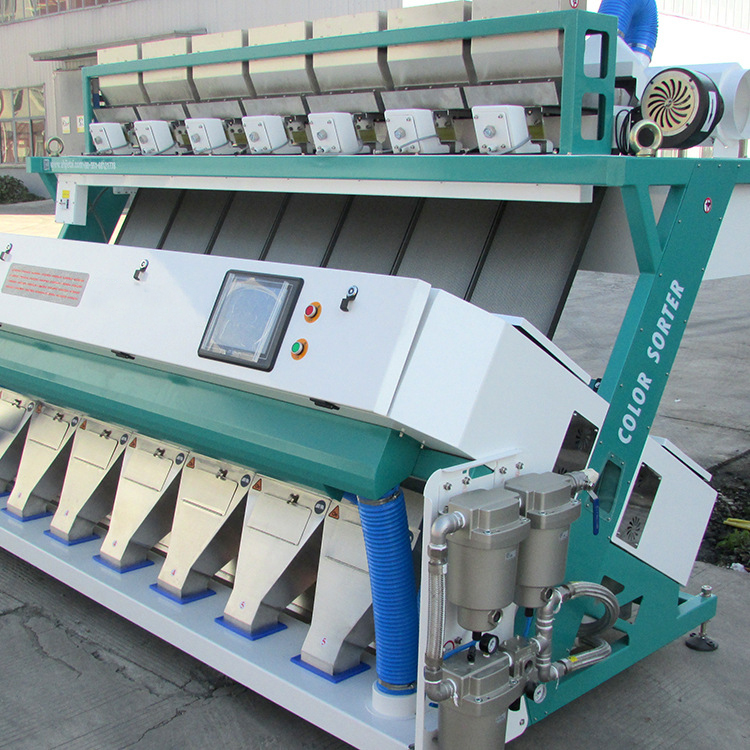

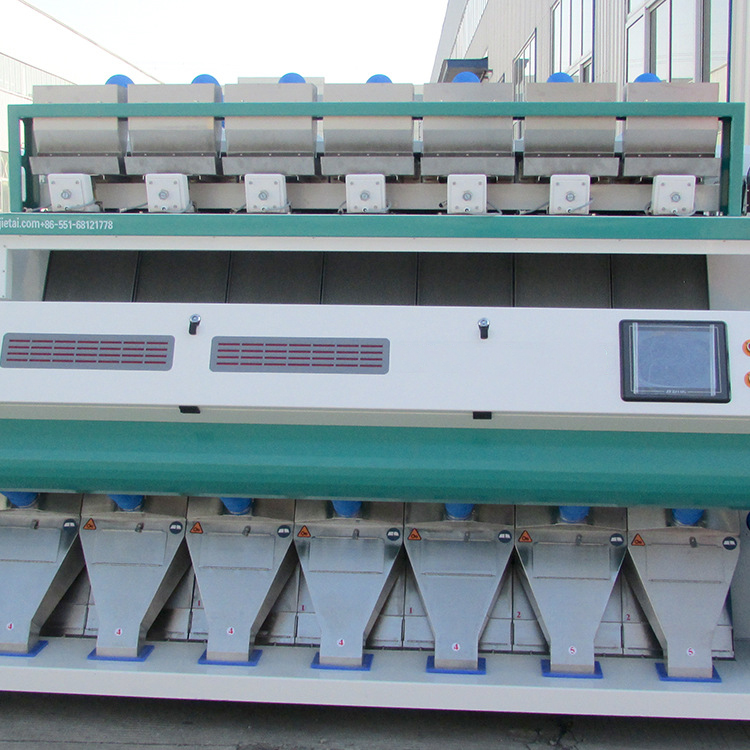

CCD Grain Colour Sorter Pictures Show
