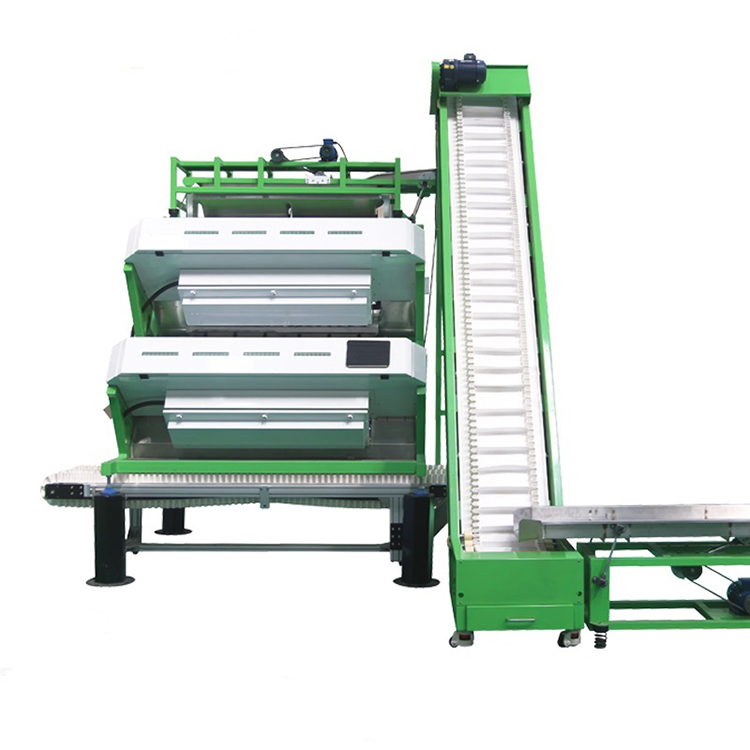

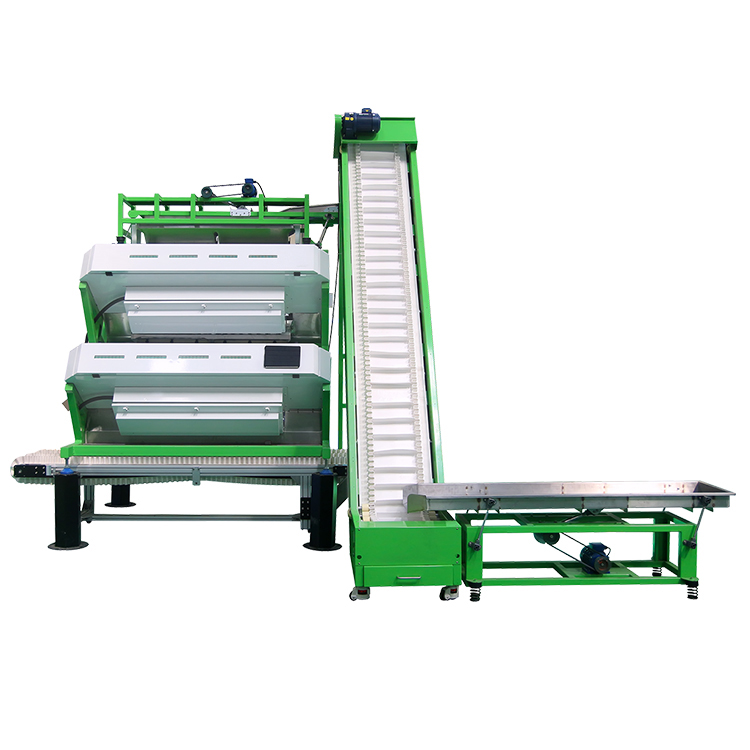

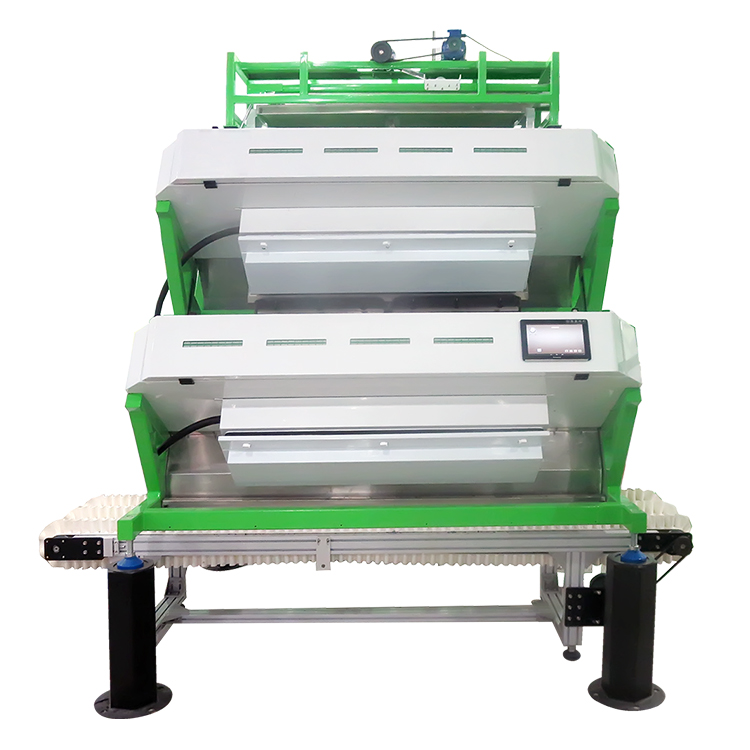

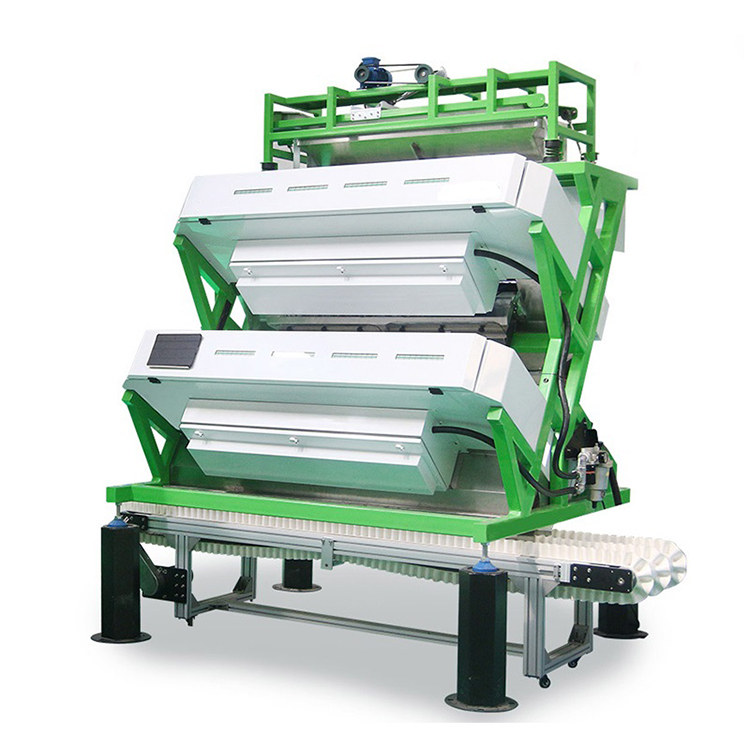

METKEY Multi-layer Tea Color Sorter is a high-tech optoelectronic machinery and equipment, which is based on the color difference between tea stalk, yellow leaf and the accepted, used high resolution CCD optical sensor to featured.

METKEY Multi-layer Tea Color Sorter used to black tea, green tea, white tea, dark tea, Tieguanyin, Pu'er tea and other varieties. It used the new anti-rust chutes, non-toxic harmless, in line with international food safety standards, used tea professional channel, not blocking material, smooth and even decline, greatly reducing the rate of broken tea, double layer sorting can achieve sorting twice, reduce the feeding time, color sorting performance more accurate, higher output. True color sensor, the best sorting equipment for the tea industry.

Technical Parameters

Model	MTCS-256S Tea Color Sorter
Output(kg/h)	<200
Carryover Rate(Bad:Good)	6:1
Sorting Accuracy(%)	≥99.0
Voltage (v/Hz)	220V 50HZ
Power Supply(Kw)	2.4-2.6
Pressure(Mpa)	0.5-0.7
Air Consumption(L/min)	<3600
Weight(Kg)	720
Dimension(mm)	1073*1934*2223

METKEY Tea Color Sorter advantages

1.Linear array CCD full color sorting technology, high resolution identify,high speed sorting, identify more precise.
2.Visible full color spectral distribution, free to adjust the spectral region.
3.Support synchronized for multi-tasking,a variety of modes of color sorting, support synchronized to meet the election, anti-election, a variety of colors at the same time sorting, the yellow film in the tea, white, black,tea stalk and other sorting success at the same time.
4.Integrates shape difference technology, improving the accuracy of tea leaves sorting quality.
5.To overcome overcome the current technology can not solve problems, such as Tieguanyin sorting etc. Achieve intelligent, mechanized.
6.Powerful intelligent software operating platform, easy to learn and understand, suitable for all levels of personnel operations.
7.Domestic unique color sorting + shape sorting mode, for the color of tea close to twisted tea and leaf foliage to carry out a better distinction, so that the sorting performance is better.
8.Double Layer 4 Chutes Tea Color Sorter has a large output with 100kg per hour, suitable for home or small and medium-sized tea processing plants.

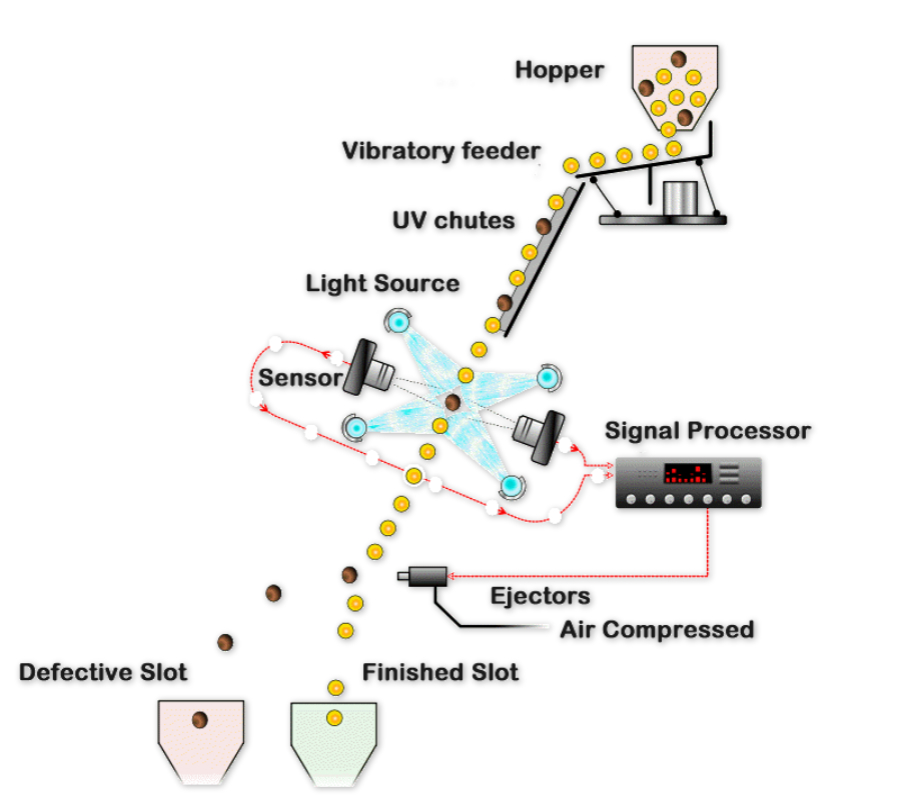

The Working Principle of METKEY Tea Color Sorter

The tea enters the machine from the top hopper, and through the vibration of the vibrator device, the selected material slides down the channel, accelerates down into the observation zone in the sorting chamber, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the output signal of the system is driven to operate the solenoid valve to blow out the colored tea leaves into the waste chamber of the receiving hopper, and the good tea leaves continue to fall into the finished cavity of the receiving hopper. Thereby achieving the purpose of sorting.

Why Chose METKEY Tea Color Sorter

1.Over 10 years experiences.focus on sorter machine.The biggest sorter machine factory.

2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and repair.

3.We have service station, cooperate reseller in more than 40 countries.

4.Quality assurance of raw materials:The raw materials we purchase are certified qualified products.

5.Quality process assurance: We pass ISO quality management system, each process of production are under strictly standard.

6.System test: Our technical engineers check the product performance, to ensure that the factory products in full compliance with customer requirements.

7.Shipping guarantee: we have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
