Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.

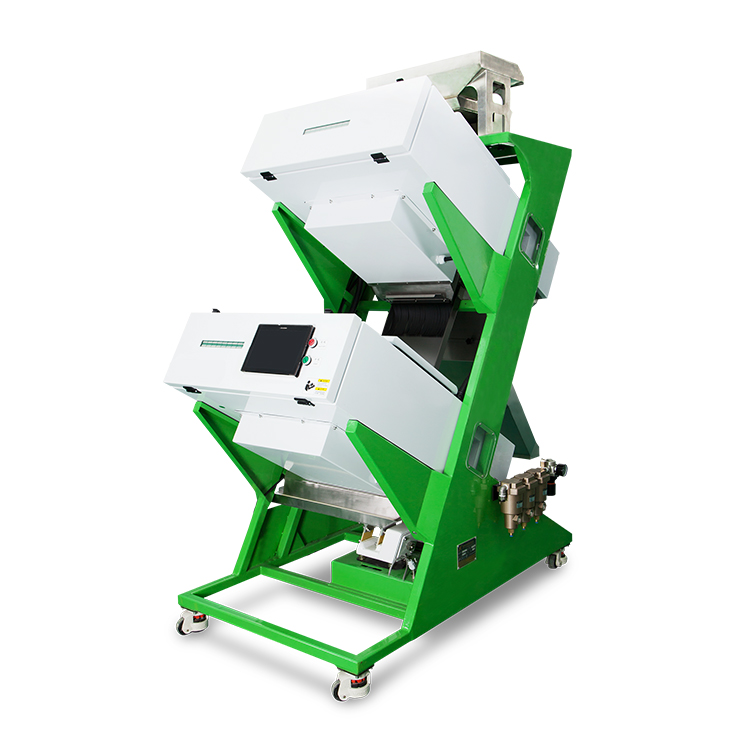

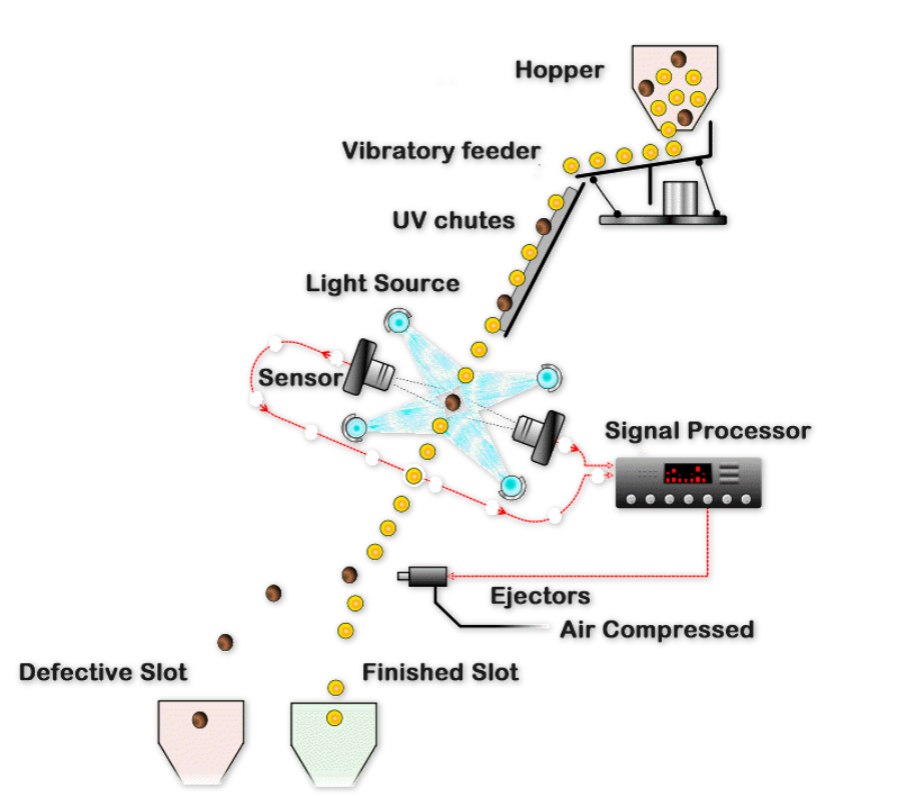

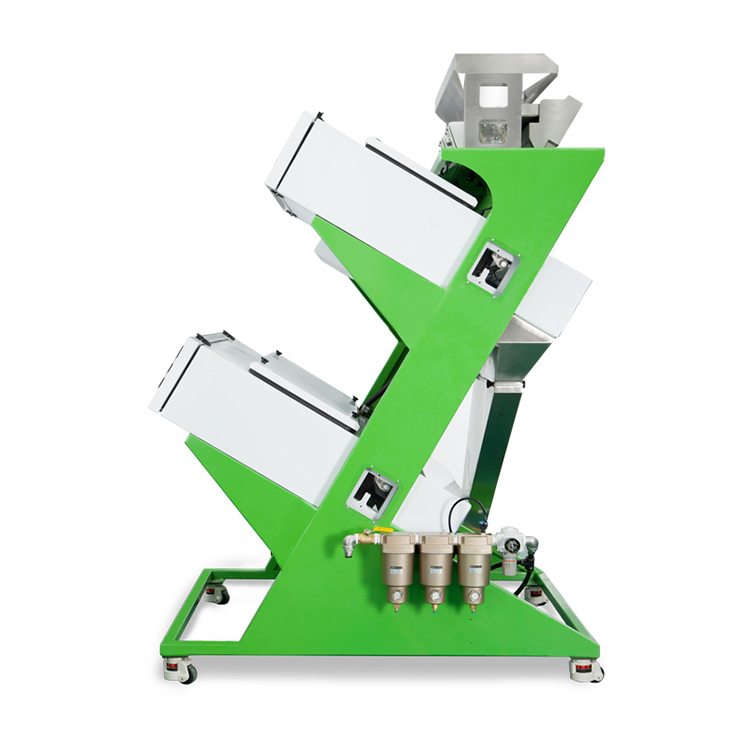

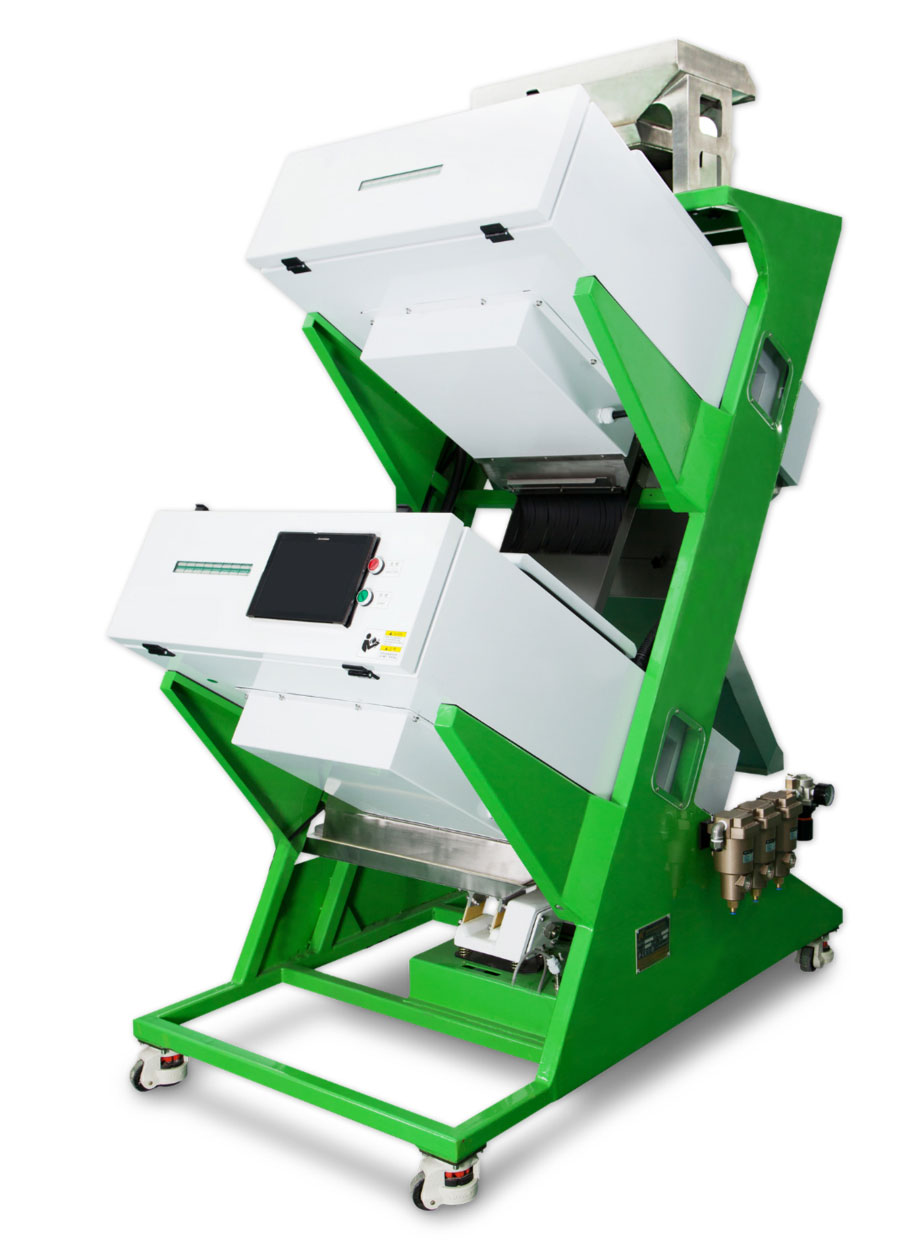

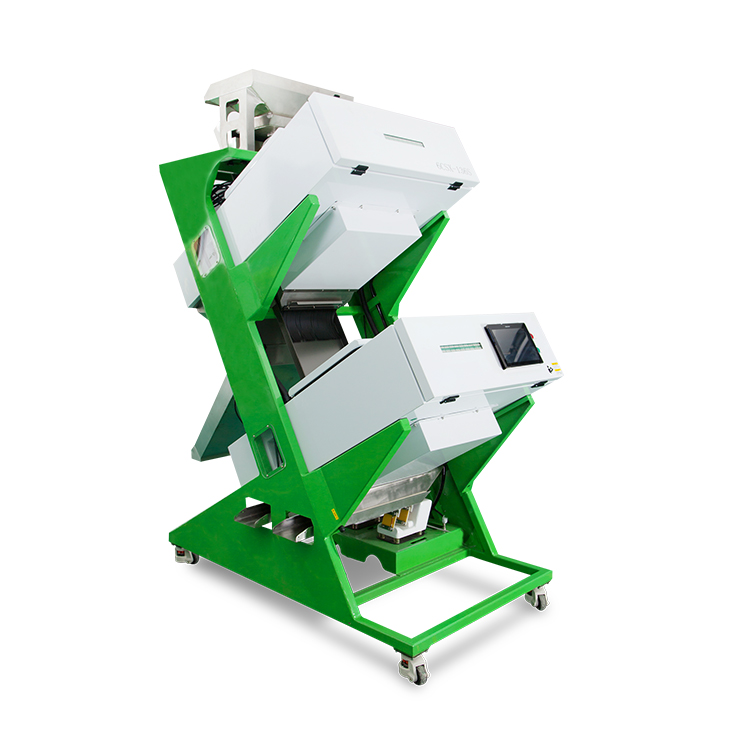

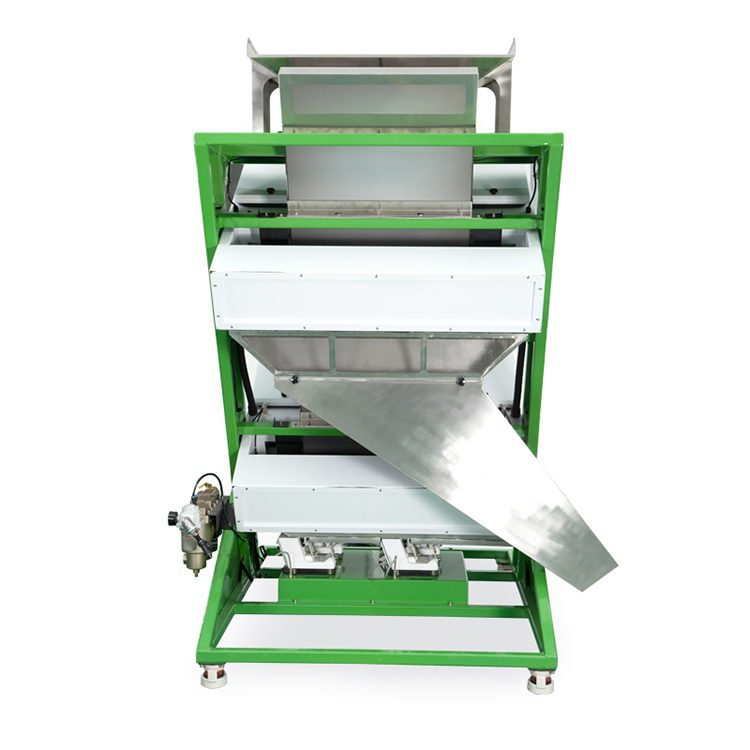

Automatic CCD Tea Color Sorting Machine is a high-tech optoelectronic machinery and equipment, which is based on the color difference between tea stalk, yellow leaf and the accepted, using high resolution full-color CCD cameras to catch it.
METKEY Tea Color Sorting Machine can be used with black tea, green tea, white tea, dark tea, Tieguanyin, Pu'er tea and other varieties. It uses new anti-rust chutes, non-toxic,harmless, in line with international food safety standards. It uses tea professional channel, not blocking material, smooth and even, greatly reducing the rate of broken tea, double layer sorting can achieve sorting twice, reducing the feeding time and making color sorting performance more accurate, with a higher output. With full-color dual cameras, making it the best sorting equipment in the tea industry.
| Model |
MTCS-136S |
MTCS-256S |
MTCS-512S |
|
Output(kg/h) |
<100 |
<200 |
<400 |
|
Carryover Rate(Bad:Good) |
10:1 |
6:1 |
6:1 |
|
Sorting Accuracy(%) |
≥99.9 |
≥98 |
≥98 |
|
Voltage (v/Hz) |
220V 50HZ |
220V 50HZ |
220V 50HZ |
|
Power Supply(Kw) |
1.2-1.6 |
2.4-2.6 |
4.8-5.6 |
|
Pressure(Mpa) |
0.5-0.7 |
0.5-0.7 |
0.6-0.8 |
|
Air Consumption(L/min) |
<1800 |
<3600 |
<5200 |
|
Weight(Kg) |
400 |
720 |
1340 |
|
Diamension(mm) |
1035*1934*2223 |
1073*1934*2223 |
2050*2050*2300 |
|
Matching power / voltage |
|
|
0.8Kw/380v50Hz |

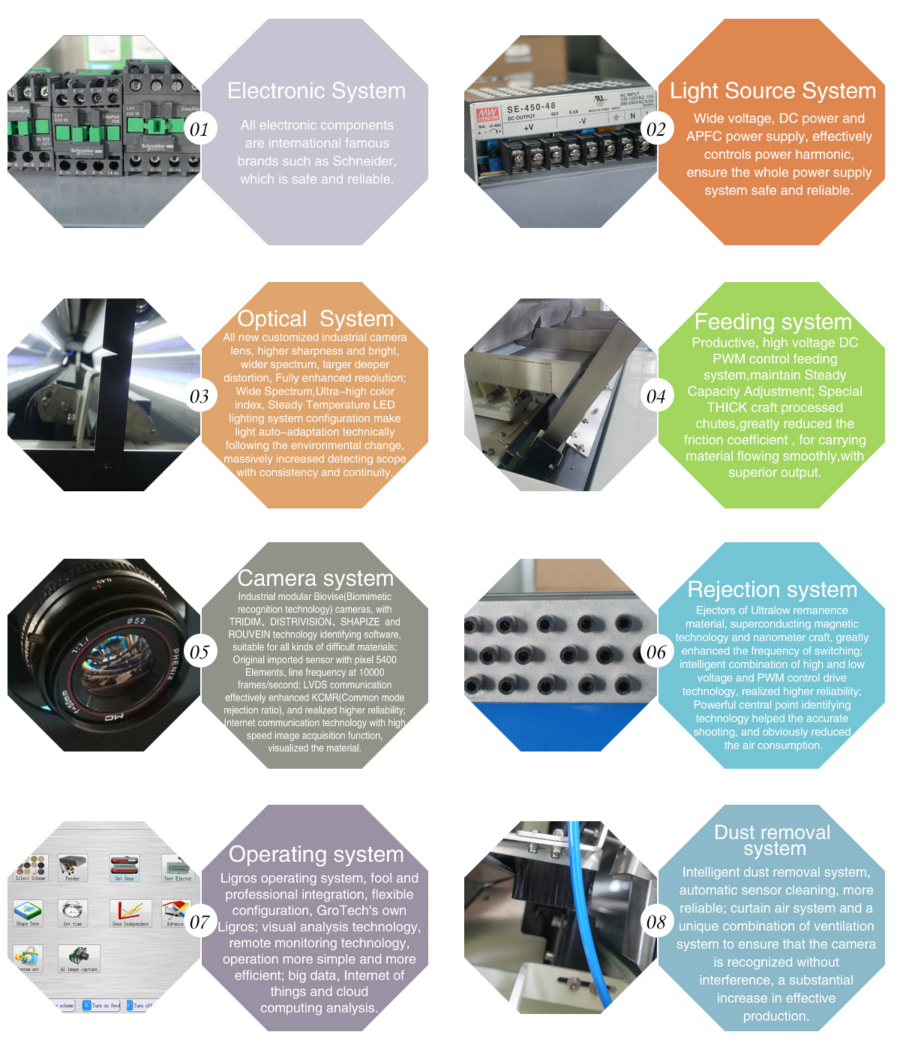

1. Linear array CCD full color sorting technology, high resolution identification, high speed sorting and more precise identification.
2. Visible full-color spectral distribution, free to adjust the spectral region.
3. Supports synchronized multi-tasking, various modes of color sorting, supports sorting, resorting, a variety of colors synchronized sorting, the yellow film in the tea, white, black,tea stalk and other sorting at the same time.
4. Integrates shape difference technology, improving the accuracy of tea leaves sorting quality.
5. Overcomes problems of current technology, such as Tieguanyin sorting, etc. Achieving an intelligent and mechanized sorting.
6. Powerful intelligent software operating platform, easy to learn and use, suitable for all levels of personnel operations.
7. Exclusive Color and Shape Sorting mode, to achieve a better performance when differenciating the color of tea, twisted tea and leaf foliage, improving sorting performance.
8. Mini Tea Color Sorter has small size, large output, about 100kg per hour, suitable for home or small and medium-sized tea processing plants.
1.Over 10 years experiences.focus on sorter machine.The biggest sorter machine factory.
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and repair.
3.We have service station, cooperate reseller in more than 40 countries.
4.Quality assurance of raw materials:The raw materials we purchase are certified qualified products.
5.Quality process assurance: We pass ISO quality management system, each process of production are under strictly standard.
6.System test: Our technical engineers check the product performance, to ensure that the factory products in full compliance with customer requirements.
7.Shipping guarantee: we have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
