Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.

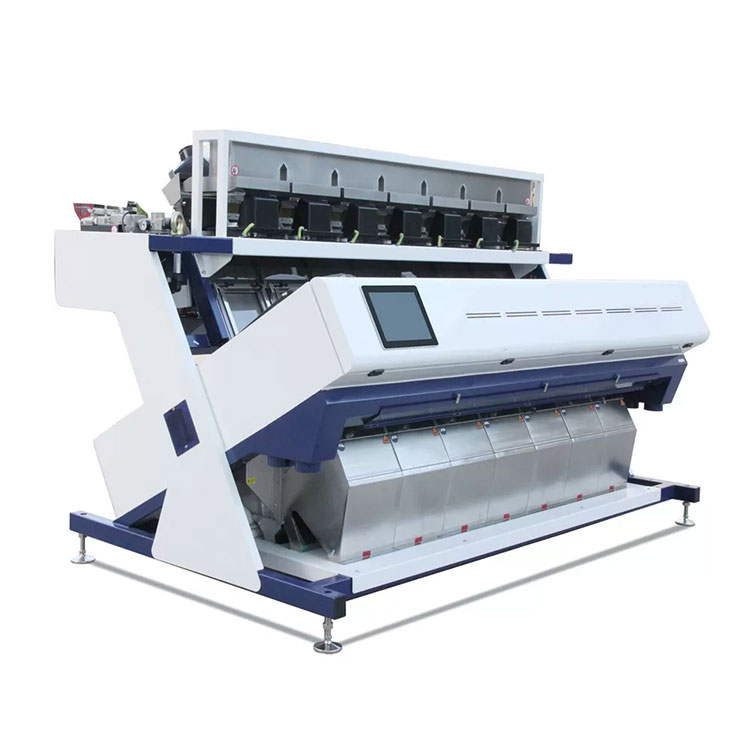

Peanut Color Sorting Machine is designed in accordance with most exacting standards of food hygiene and excel in the most difficult of food sorting applications where the strictest levels of food quality and safety are demanded.

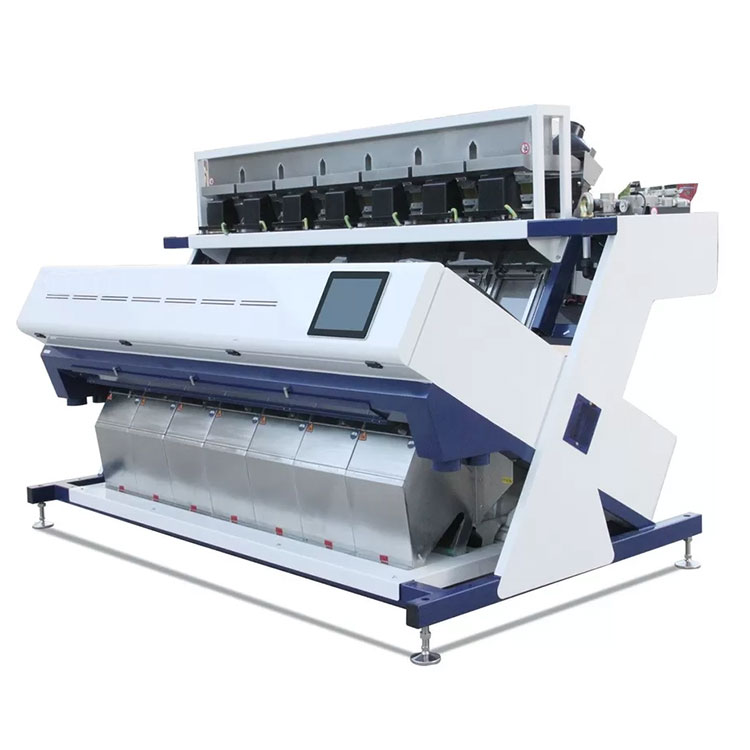

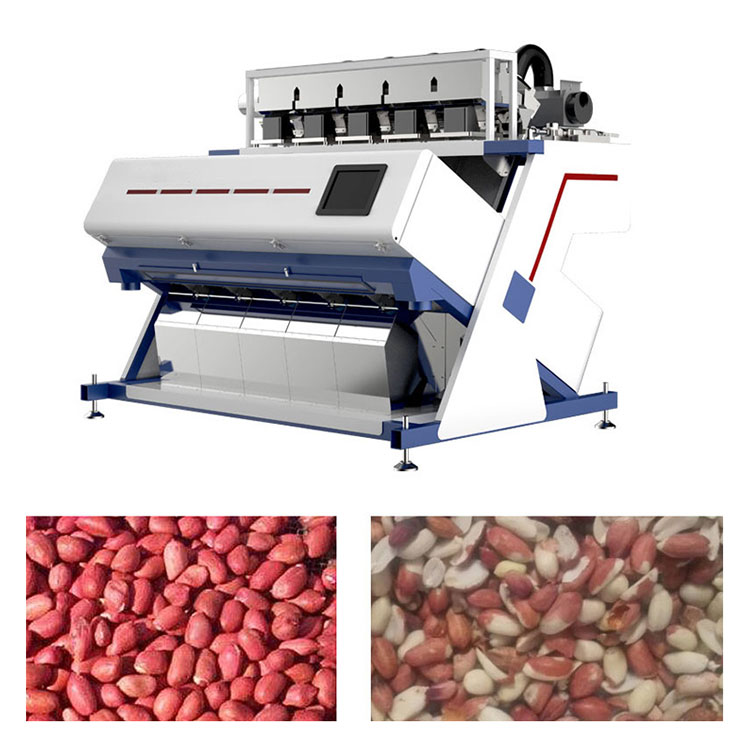

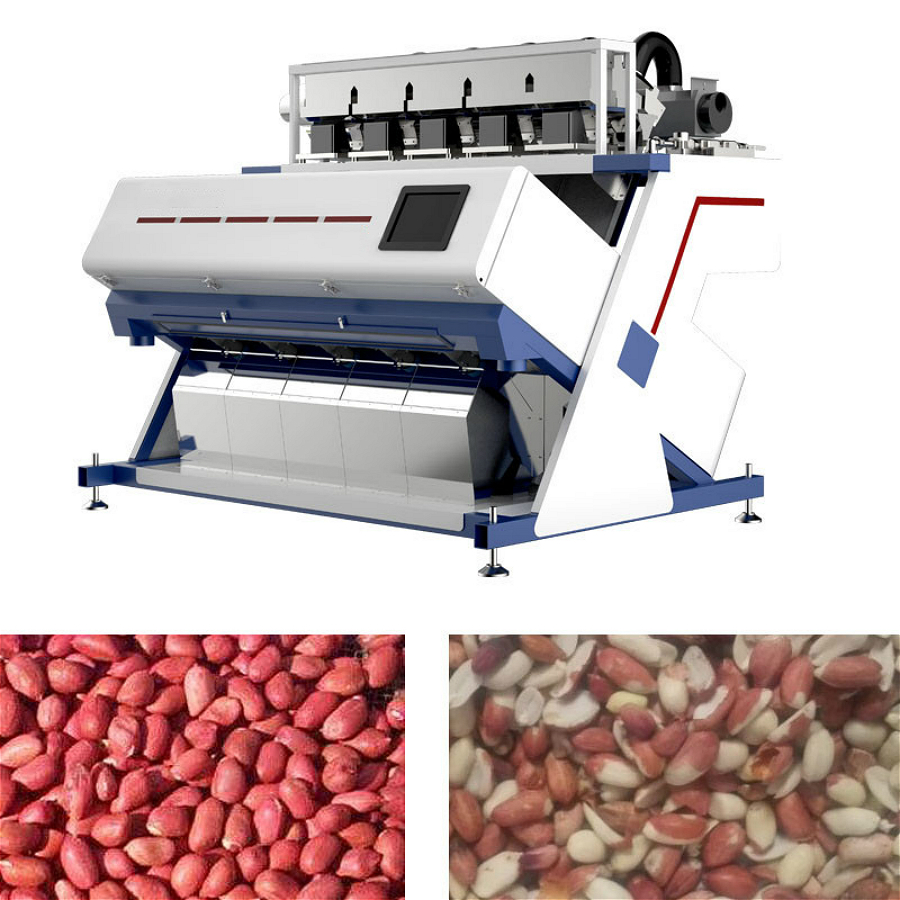

METKEY Peanut Color Sorting Machine is able to sort white peanuts ,red peanuts ,peeled peanuts and peanut in shell,raw,blanched and roasted peanuts.
METKEY Peanut Color Sorting Machine can detect and remove visible defects such as stones, grass, nut grass, stalks, stems, raisins, shells, discoloration, soy, bones, wood, corn, glass and in shell as well as invisible to the human eye defects such as antitoxin.
|
Model |
Code Number |
Output（T/h） |
Bad:Good |
（Sorting accuracy%） |
voltage(v/Hz) |
Power(Kw) |
Weight(Kg) |
Dimensions(mm) |
|
Z64 |
6SXZ-64A |
1-2 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
0.3-0.5 |
240 |
974.2*1550.9*1399 |
|
Z128 |
6SXZ-128A |
2-4 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
0.4-0.65 |
500 |
1239*1705.3*1827.9 |
|
Z192 |
6SXZ-192A |
4-6 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
0.7-1.1 |
800 |
1554*1707*1827.9 |
|
Z256 |
6SXZ-256A |
6-8 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
0.7-1.1 |
1000 |
1869*1707*1827.9 |
|
Z320 |
6SXZ-320A |
8-10 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
0.7~1.1 |
1100 |
2184*1707*1827.9 |
|
Z384 |
6SXZ-384A |
10-12 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
1.1-1.9 |
1350 |
2499.2*1707*1827.9 |
|
Z448 |
6SXZ-448A |
12-14 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
1.1~1.9 |
1350 |
2814.2*1706.7*1839.9 |
|
Z512 |
6SXZ-512A |
14-16 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
1.3~2.2 |
1500 |
3129*1709.9*1827.9 |
|
Z640 |
6SXZ-640A |
18-20 |
＞40:1 |
≥99.6% |
AC220V/50HZ |
1.4-2.3 |
1750 |
3759.2*1709.9*1827.9 |
Remarks: The above parameters are based on peanuts (including 3%), and the specific indicators vary depending on materials and impurities.
(1) LED: Germany OSRAM;high brightness, life-time up to 100,000 hours, and equipped with intelligent control dimming technology;
(2) Sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million pixels, line frequency ≥ 10K, the minimum area of different colors can be up to 0.0004 square millimeters;
(3) Lens: Japanese NIKON, optical industry customized lens, with 150 line pairs of ultra-high resolution, low distortion: <0.2%, low color difference: <0.1 pixel, better imaging performance;
(4) Processor: ALTERA programmable logic device processor: data processing speed>5500k bits; data transmission speed> 210mhz; the system data acquisition and processing speed >3.125 Gbps, is extremely high;
(5) Solenoid valve: customized solenoid valve for color sorter; All imported alloy materials, MATRIX technology introduced in Italy, shutdown time: <0.05ms, life: >10 billion times;
(6) Operation interface: 12-inch HD industrial computer, Intel CPU, Windows operating system, 24-bit true color display, more realistic image display;
(7) Intelligent operation interface, visual analysis of images, one-click analysis of the proportion of impurities to be removed and transfer of sorting parameters, easier operation;
(8) Support remote control for mobile phone apps and monitoring equipment operation, convenient and fast;
(9) Support Internet remote control, system upgrade function, HD image acquisition, visual system adaptive correction technology, self-learning statistical analysis technology, and one-key automatic parameter adjustment technology；
(10) IR cameras are optional to be added.

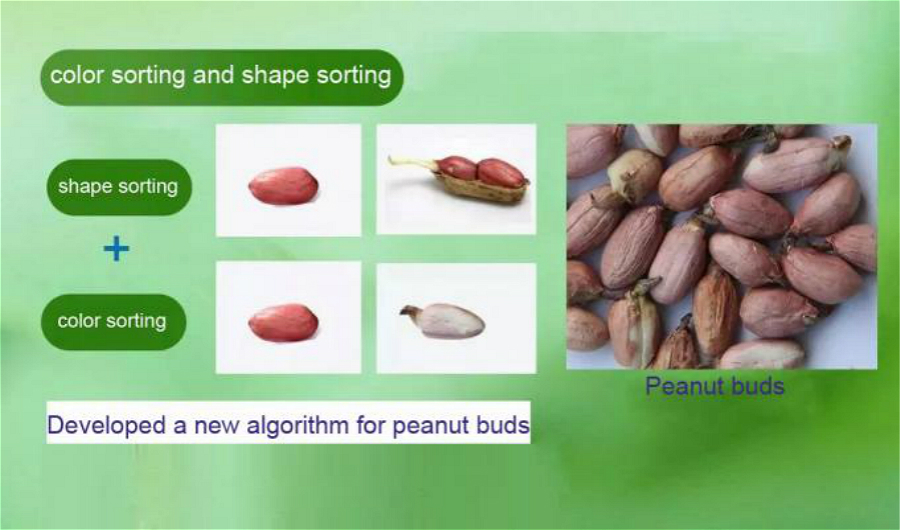

To sorting many defects of peanut like, Frozen, bud, broken,Small, crack, ect.
1. Increased yield;
2. Reduced labor requirements;
3. Increased throughput;
4. Consistent quality;
5. The peanut sorting solutions boost throughput and availability while at the same time increasing yield,quality and food safety.
