Mini Coffee Bean Color Sorter

  • Mini Coffee Bean Color Sorter selection machine adopts high-end CCD sensor imported from Japan, high resolution custom 54-megapixel camera, unique algorithm to identify tiny defects, full color wide spectrum, intelligent system, simple operation. It is also widely used in the screening of rice, soybean, grain, nut and so on in fast food factory, mill mill, rice factory, edible oil factory and so on.
Direct supply from the manufacturer
Order phone:+86-18012365661
E-mail:alexzhang@metkeycolorsorter.com

Detail

Mini Coffee Bean Color Sorter Specifications:

Model

CQ-32

Executive units

32

Production Capacity

250kg-300kg/hour

Voltage

110V-220V/ 50-60HZ

Power

800W

Rejection rate

≥11:1

Sorting accuracy

≥99.99%

Air supply pressure

0.5-0.8Mpa

Air consumption

≤120L/min

Weight

150kg

Dimension

780*450*1370mm

Warranty

1 year



Mini Coffee Bean Color Sorter Features:

Latest full-color imaging and analysis technology,high-speed processing,accurate identification.


Multi-function,multi-purpose,widely used for rice,cereal, plastics,Chinese medicine.

High level AI self-learning function,One-key automation,user friendly interface,easy operation.

Color sorting combined with shape sorting and size sorting, to sort difficult impurities like micro color difference, tiny bad spot etc.
High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.

Small and portable, saving space and delivery cost, small machine but super function.

Imported ejectors, much smaller air consumption, and much better carry over, esp. good for small materials like quinoa, sesame…

Option: Remote control by smart terminals like cellphone, can realize the off-site controls of the accuracy, production capacity.

Simple Effective-Installation&Start-up&Commissioning services: remote teaching and guidance via live video online through internet to worldwide.

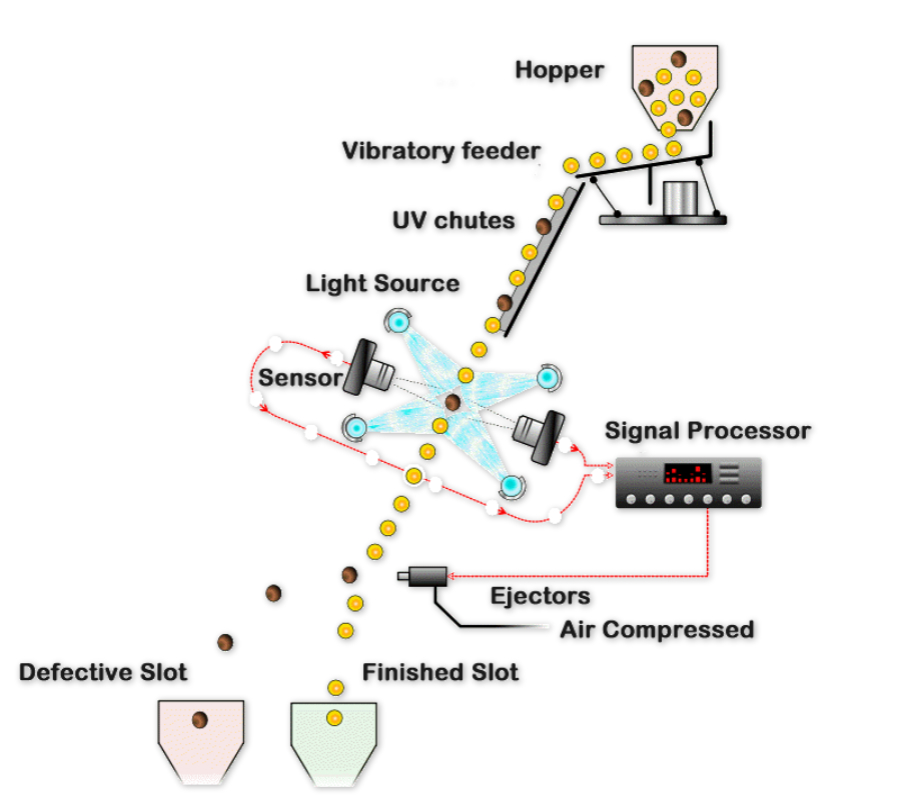

Working Principle:

Detailed Images

Machine Parts

Name: Camera system
Original: Biomimetric recognization cameras of industrial level,suitable for all kinds of different material,wide spectrum imaging.Camera sensor with pixle 5400 elements,line frequency at 1000 frames/second;image acuision functions visable at display.



Main Features

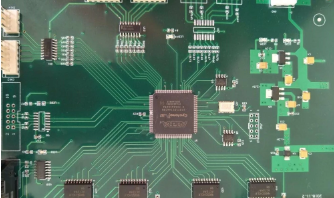

Name: Electric system
Original: All electrical components adopt international brand with high stability and safety.


Machine Parts

Name: Operation system
Original: Lunix high reliability system easy and professional integration,flexible configuration;visual analysisy technology,big data cloud technology analysis.


Main Parts

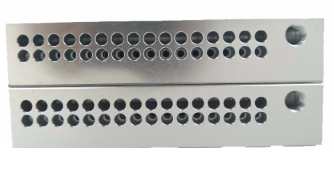

Name: Ejection system
Original: Valve core adopts ultra-low power consumption material, ultra-magnetic conductivity technology, key components customized from Japan, high-frequency switch, pulse width modulation control, center identification technology, precise blowing, low gas consumption.



Packaging & Shipping

Fixed In Standard export Plywood carton.

Machine surface protection, plastic fastening.

Manufacturer logo printed on the outside of package.

Delivery within 7 days after receipt of payment.
