Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.

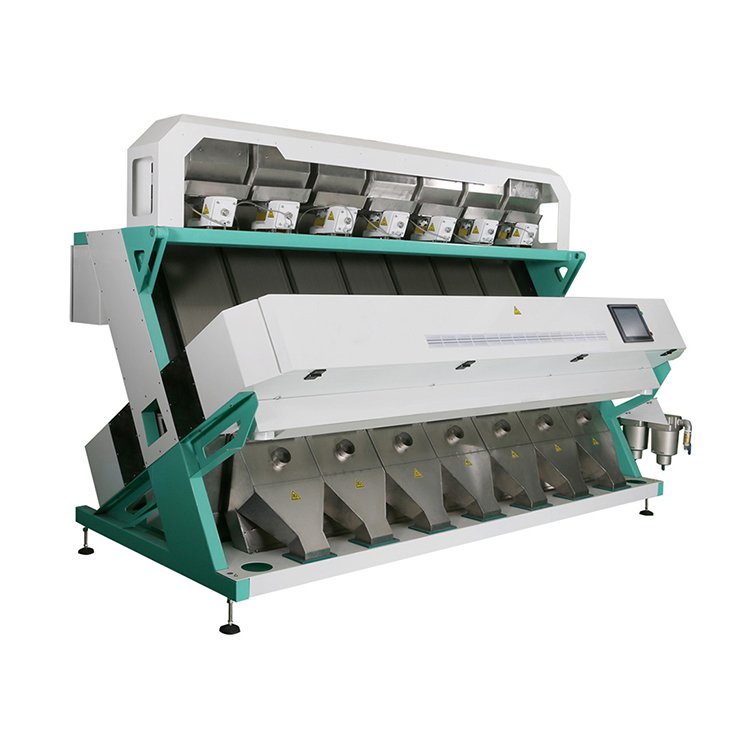

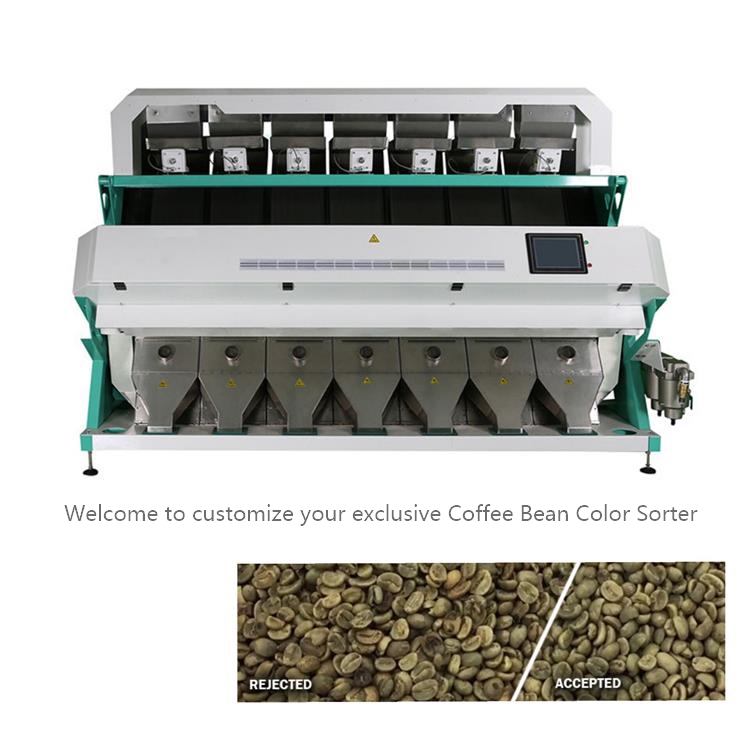

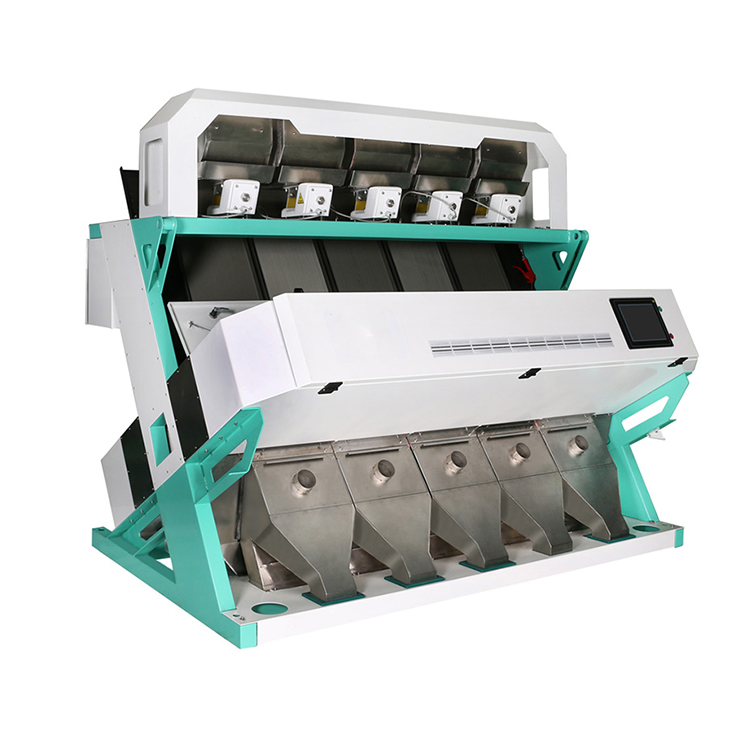

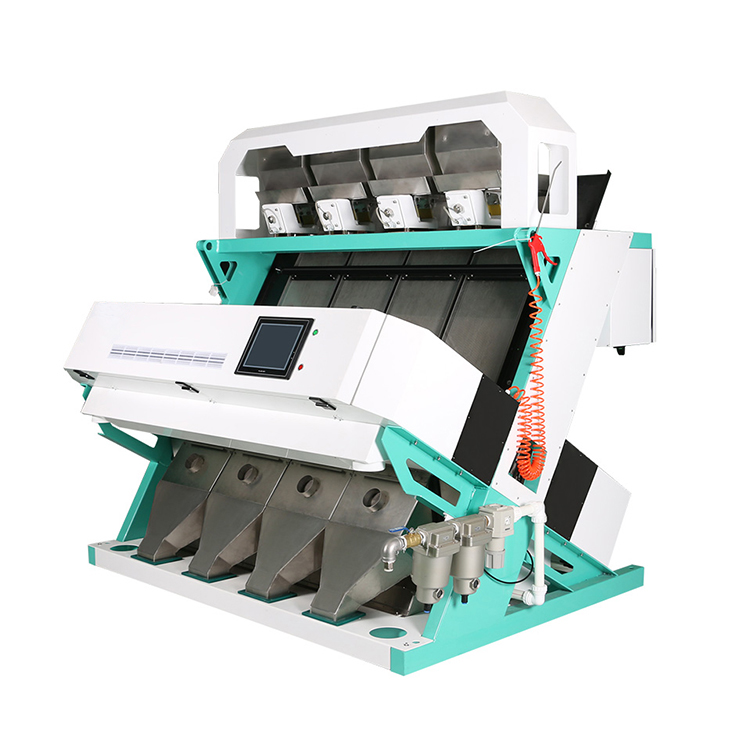

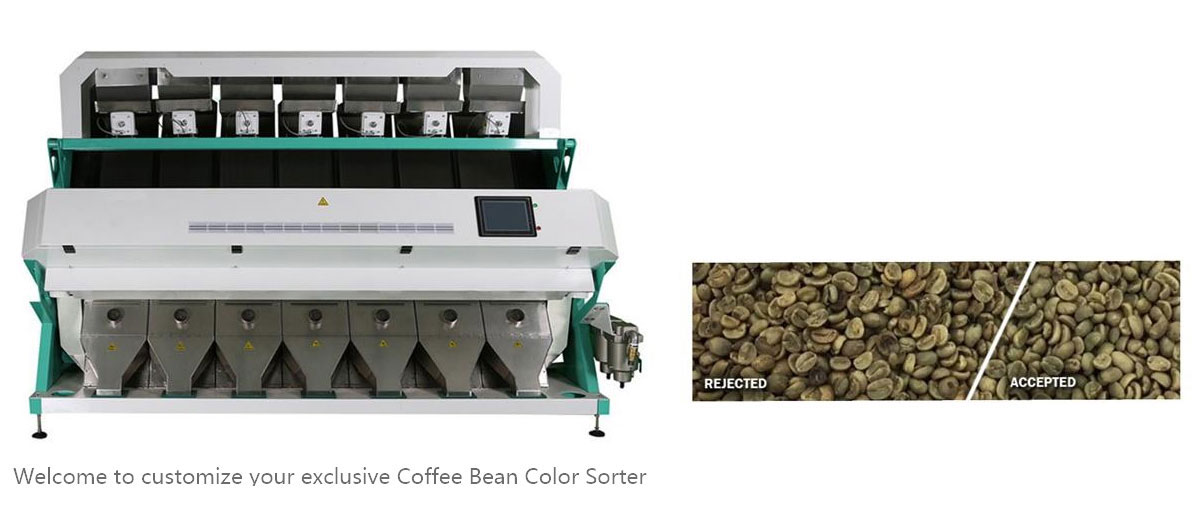

Intelligent Coffee Bean Color Sorter is frequently used to remove the defective coffee beans that were not removed during coffee processing or hulling. Many countries sort coffee beans by hand due to inexpensive labor, but for most countries investment in a color sorting machine, or color separator, is necessary.

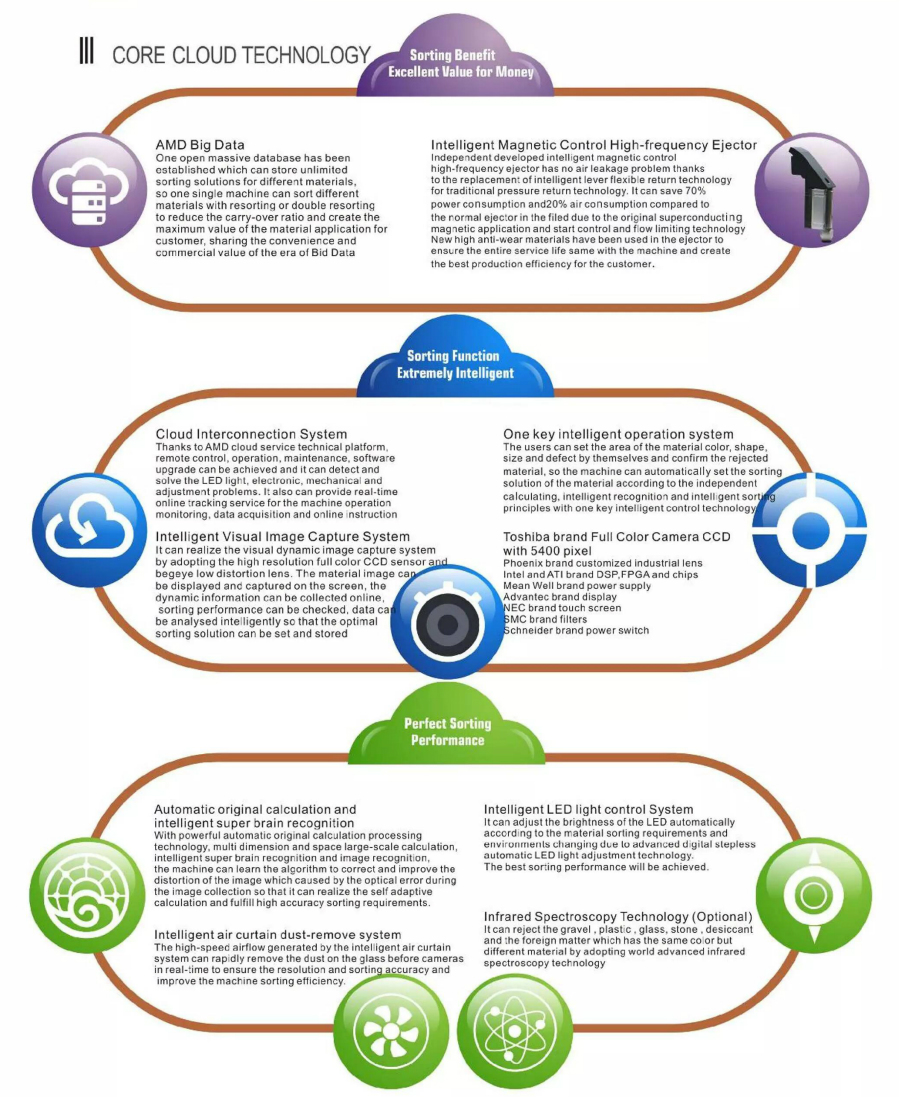

The methodology behind color sorting machines is similar. The color of each coffee bean is quickly measured using a type of CCD camera system and depending on this wavelength measurement the bean is either allowed to flow downward or is shot with a puff of air into the reject pile. Monochromatic machines remove white and black coffee beans since they have a lighter or darker hue than the average. The more specific bichromatic color sorting machines detect and eliminate coffee beans that are white, unripe, broken, insect damaged, and black.
For more information about Intelligent Coffee Bean Color Sorter or the process of sorting coffee beans, feel free to contact WhatsApp: + 86-18012365661 or by email box:alexzhang@metkeycolorsorter.com
Intelligent Coffee Bean Color Sorter Technical Parameters
|
Model |
Capacity（bad：good） |
Accuracy（%） |
Power(v/Hz) |
Voltage(Kw) |
Weight(Kg) |
Dimension(mm) |
|
MCCS64 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.3~0.5 |
240 |
974.2*1550.9*1399 |
|
MCCS128 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.3~0. 5 |
500 |
1239*1705.3*1827.9 |
|
MCCS192 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7-1.1 |
800 |
1554*1707*1827.9 |
|
MCCS256 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7-1.1 |
1000 |
1869*1707*1827.9 |
|
MCCS320 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
0.7~1.1 |
1100 |
2184*1707*1827.9 |
|
MCCS384 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.1~1.9 |
1350 |
2499.2*1707*1827.9 |
|
MCCS448 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.1~1.9 |
1350 |
2814.2*1706.7*1839.9 |
|
MCCS512 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.3~2.2 |
1500 |
3129*1709.9*1827.9 |
|
MCCS640 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.4~2.3 |
1750 |
3759.2*1709.9*1827.9 |
|
MCCS768 |
＞10:1 |
≥99.99% |
AC220V/50HZ |
1.4-2.3 |
1900 |
4389.2*1709.9*1827.9 |

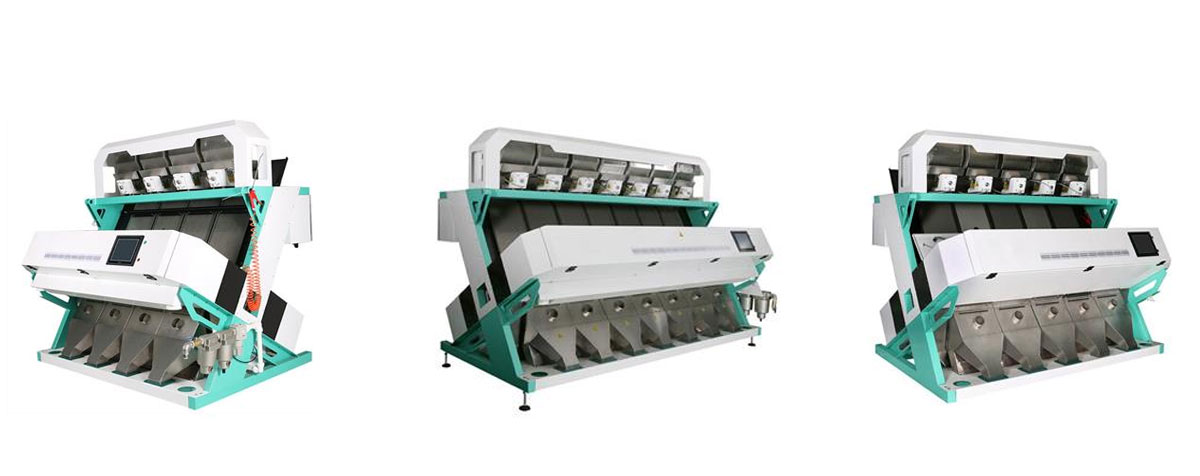

Remark: We have many models from 1 chute to 16 chutes for option to meet any different production capacity.The exact production capacity may change due to different impurity level.
