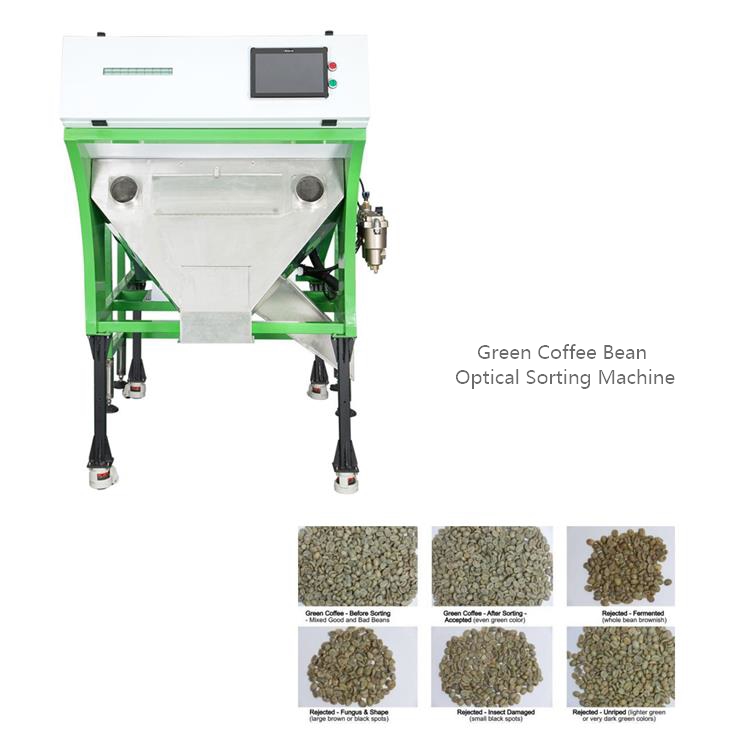

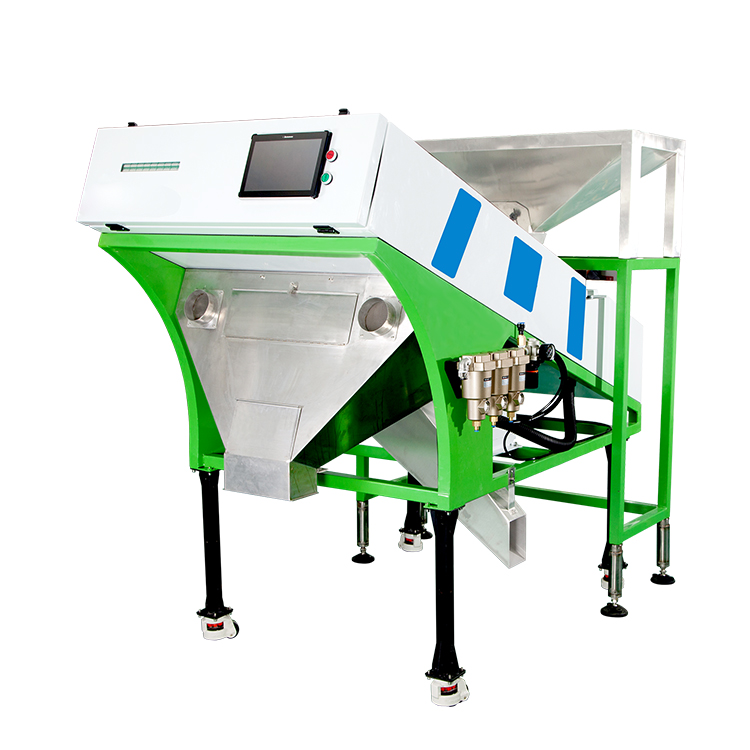

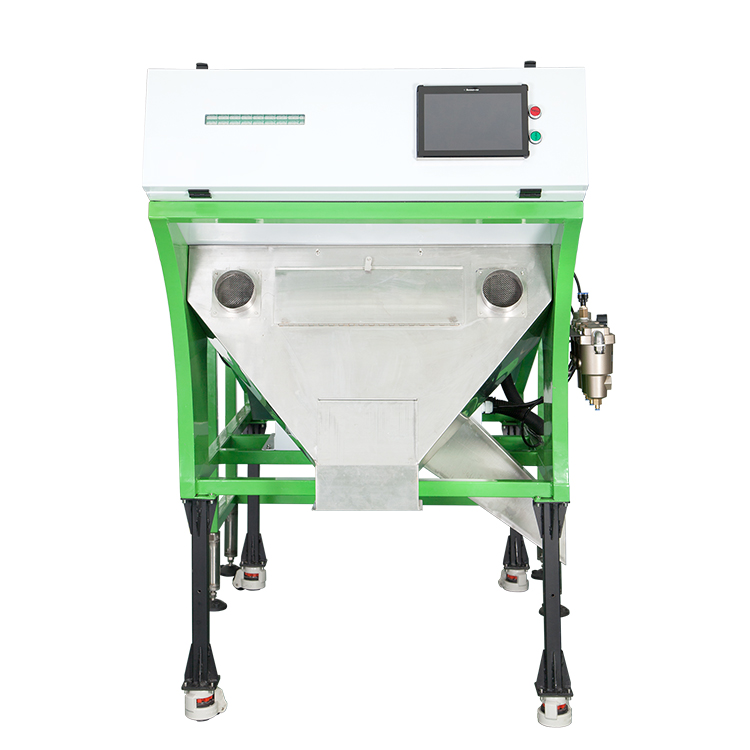

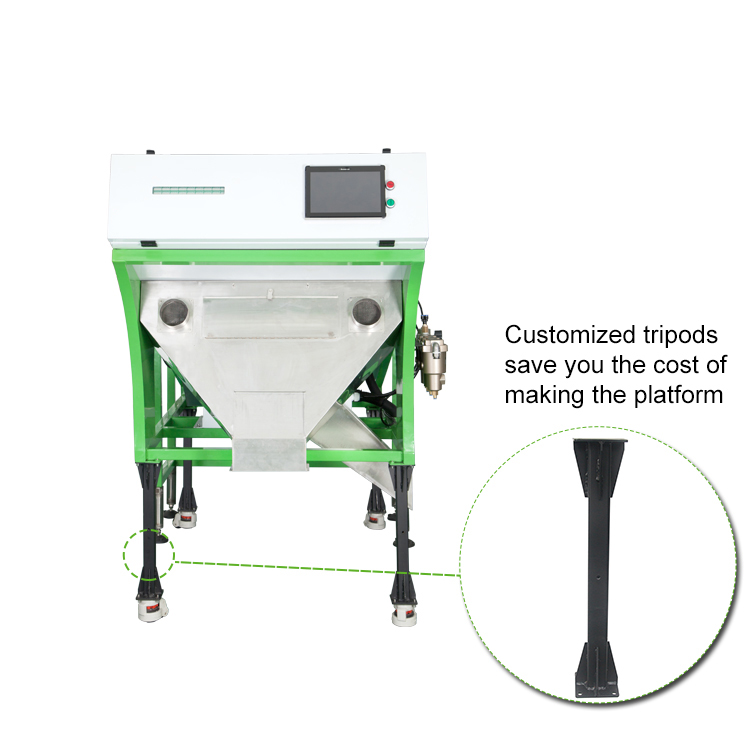

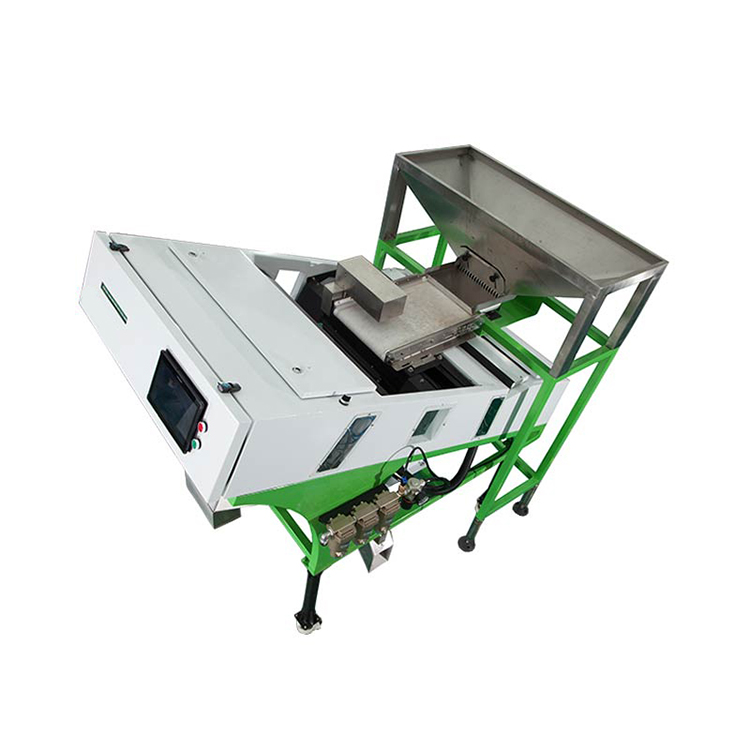

Green Coffee Bean Optical Sorting Machine

  • Green Coffee Bean Optical Sorting Machine, also called coffee bean sorting machine, is designed to quickly sort the original both green coffee beans and roasted coffee beans.
    It is widely used in the processing of coffee bean and help remove the foreign impurities and improve the quality.
Direct supply from the manufacturer
Order phone：+86-18012365661
E-mail：alexzhang@metkeycolorsorter.com

Detail


We are consistently engaged in exporting and supplying the best Green Coffee Bean Optical Sorting Machine. We will continuously expand application area for products,and finally strive to be a world top high-tech company.




Green Coffee Bean Optical Sorting Machine Technical Parameters

Model

MCCS-68L

MCCS-68L

MCCS-136L

MCCS-272L

Output

<600kg/h

<1000kg/h

<1200kg/h

<2400kg/h

Carry over Rate(Bad:Good)

12.5:1

12.5:1

12.5:1

12.5:1

Sorting Accuracy

≥99.9%

≥99.9%

≥99.9%

≥99.9%

Voltage(V/Hz)

220V 50HZ

220V 50HZ

220V 50HZ

220V 50HZ

Power Supply(Kw)

0.7-1.0

1.5-2.0

1.5-1.8

2.5-3.0

Pressure(Mpa)

0.4-0.6

0.4-0.6

0.5-0.7

0.6-0.8

Air Consumption(L/min)

<500

<600

<1000

<2000

Weight

310kg

550kg

490kg

920kg

Dimension

2051*1240*1762mm

3200*2020*810mm

2037*1540*1550mm

1922*2430*1349mm

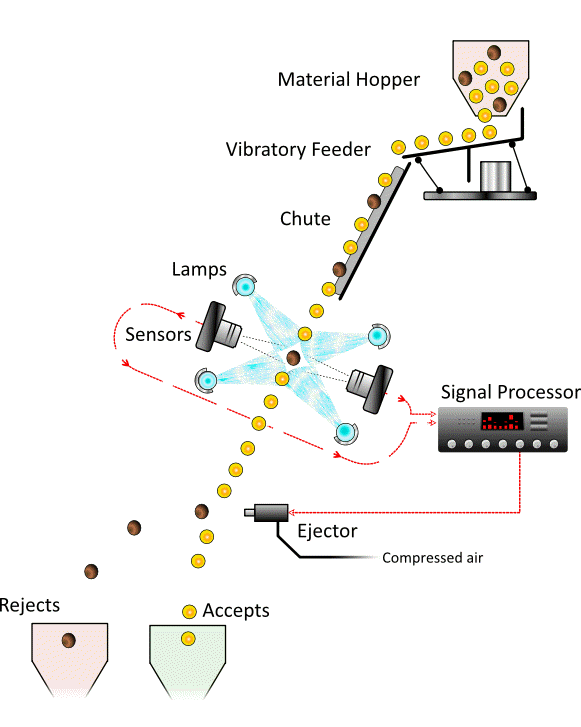

Green Coffee Bean Optical Sorting Machine working flow

1 Input product is loaded into the in-feed hopper,2 it moves along the vibrating plate 3 until it flws on to a sloping chute where it is individually checked and sorted by state-of-the-art cameras 4 (CCD cameras for standard version and 5 additional cameras for mono-chromatic,full color and NIR versions) situated in the front and rear of the folw.6 Depending on the signals received by the optical device, the sorter software controls the pneumatic device,7 which physically separates the unwanted products out of the conforming ones which naturally reach their discharging hopper.8 The rejected products are instead deviated by a jet of compressed air produced by the relevant ejector and discharged in the front side hopper.


In automatic re-pass versions, the sorted or rejected product is automatically conveyed to another section of the machine for undergoing an identical process.


Examples of Sorting

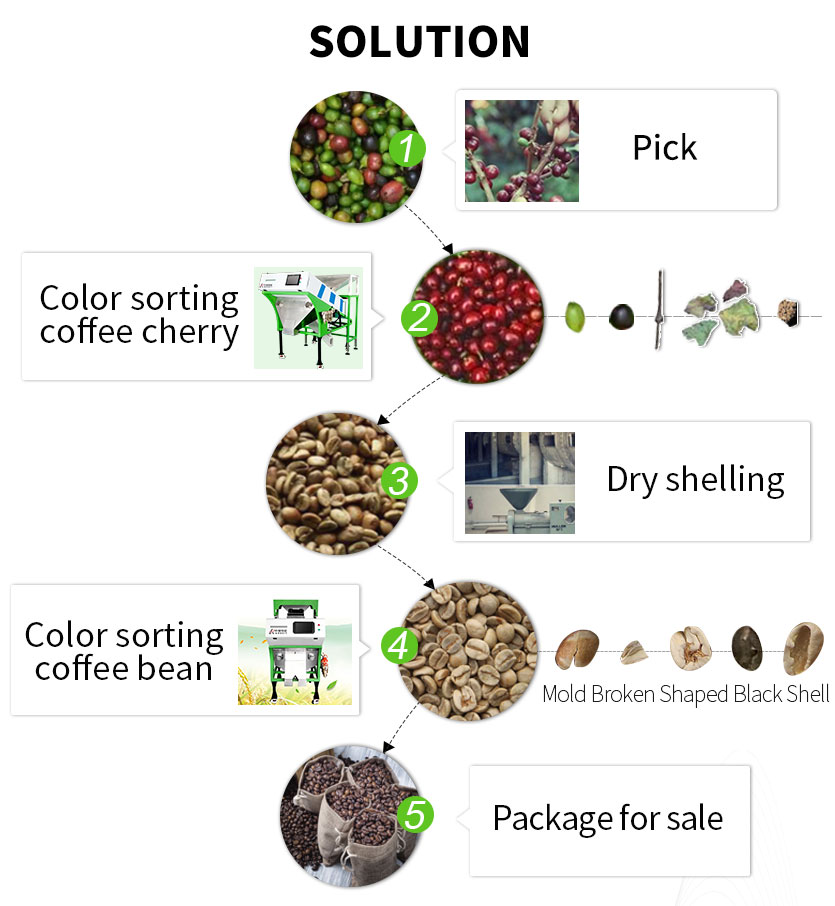

Product Process
