How to make good quality shrimp?
METKEY Shrimp Belt Type Color Sorter can effectively separate the shelled shrimp, red and white in the shrimps, and remove the impurities one by one, leaving good products and effectively improving their quality. The color of the shelled, white and red shrimp in the shrimp is distinguished, and other impurities such as the heterochromatic particles are selected one by one, and the good products can be selected according to different requirements, and the selection rate is as high as 99%. The equipment uses a new anti-rust chute, non-toxic and harmless, in line with international food safety standards, professional channel of shrimp, no blocking material, smooth and even decline, more accurate color selection and greater output.
METKEY Shrimp Belt Type Color Sorter Features
1. High-definition CCD Image Sensor
5400 pixel HD full color CCD is adopted, the definition is up to 0.08mm2, which ensures recognition of subtle color difference and minimal flaws.
2. High-speed data processing, real time display of real image
High-speed parallel data processing chip, real-time high efficiency image capture and processing system of the machine increased working efficiency of color sorter greatly.
3. High Quality Image Processing Algorithm
International advanced image processing technology is applied, which can recognize subtle color difference as small as 0.1mm. Higher color sorting accuracy, lower sorting carryover.
4.Self-adaption Temperature Control
The fan in the machines elf-adapt working temperature to ensure the color sorter keep normal working in high-temperature environment.
5.Advanced High-Pressure valve Ejectors
Outstanding sorting accuracy make sure to sort out good material and bad material perfectly;high definition and well-designed ejectors; high frequency, high frequency,durable,long service-life.
6.Special PC interface display and Operation Platform
User-friendly operation interface ensures convenient operation and processing.
7.High Quality Material Convey System
Food-grade conveying belt with high quality is applied, which ensures the safety of food material, and decreased damage of food product.
Belt-type color sorter machines break a smaller percentage of material (important for nuts) and the product stays relatively static during the transport process as it moves horizontally on the belt. Whereas in the chute type, material slides on the chute because of gravity, causing collision, friction, and larger vertical movements, thus worsening the ratio of broken material. The belt structure makes the transmission smooth and stable without bouncing of material.
8.Special Lighting System
Special light source is equipped to ensure HD image quality, which makes the machine can meet different kinds of sorting requirements and recognize subtle variation of color.

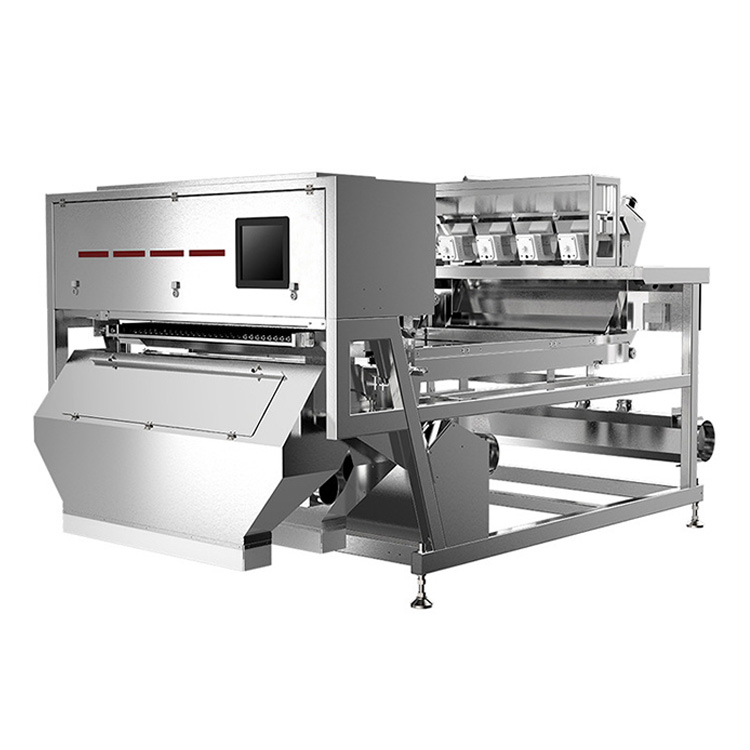

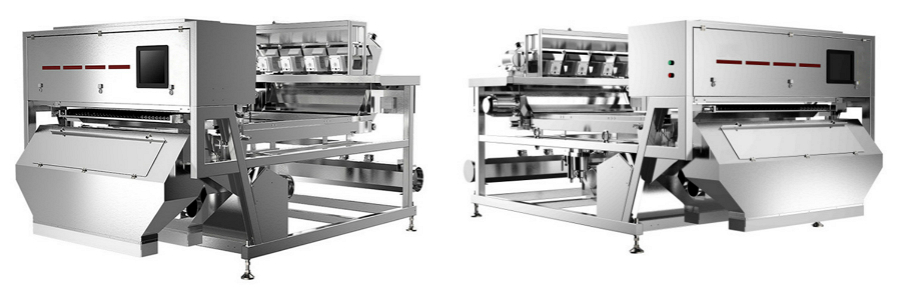

METKEY Shrimp Belt Type Color Sorter Specifications
|
Capacity(t/h)
|
0.5-1.0
|
1.0-3.0
|
1.0-3.0
|
|
Type
|
belt width 600mm single belt
|
belt width 1200mm single belt
|
belt width 1200mm double belt
|
|
CCD Cameras
|
RGB camera 5400 pixel
|
RGB camera 5400 pixel
|
RGB camera 5400 pixel
|
|
Light
|
LED light source
|
LED light source
|
LED light source
|
|
Power(kw)
|
2
|
3
|
4.5
|
|
Voltage(V)
|
110-250V/50-60Hz
|
110-250V/50-60Hz
|
110-250V/50-60Hz
|
|
Color Sorting accuracy
|
99.99%
|
99.99%
|
99.99%
|
|
Rejection rate(bad:good)
|
≧10:1
|
≧10:1
|
≧10:1
|
|
Dimension(mm)
|
3565*1200*2110
|
3500*1800*2110
|
3565*1800*2900
|
|
Air pressure(Mpa)
|
0.6~0.8
|
0.6~0.8
|
0.6~0.8
|
|
Weight(kg)
|
600
|
800
|
1200
|
METKEY Shrimp Belt Type Color Sorter Advantages
1. Helps processors meet stringent safety standards
2. Maximize product value and yield
3. Delivers consistent performance and stability
4. Increases productivity and lower operational costs
Shrimp Sorting Samples
