Features

(1) The design of N-level wind separation chamber can meet the classification requirements of N + 1 materials;
(2) The adjustable near vacuum environment in the wind sorting chamber can realize the slight separation of the detected materials;
(3) Narrow and long separation chamber can accurately collect and separate materials;
(4) Tail end light material collection design, reduce the impact of light impurities on the back-end processing, and effectively solve the dust problem of the customer site.

Grain Wind Sorter Technical Parameters

Model No.	MGWS0002
Application	Seeds, rice, wheat, chilli, maize, nuts, beans, spices, seafood
Output Capacity(kg/h)	150-500
Sorting Accuracy	≥99%
Carryover	﹥8:1
Rated Voltage(V)	AC380V 50/60Hz
Rated Power (KW)	﹤1.5
Customization	Available
Lead Time	7 days after confirm deposit
Dimension(mm)(L x W x H)	400*600*1920
Machine Weight(kg)	150

Application

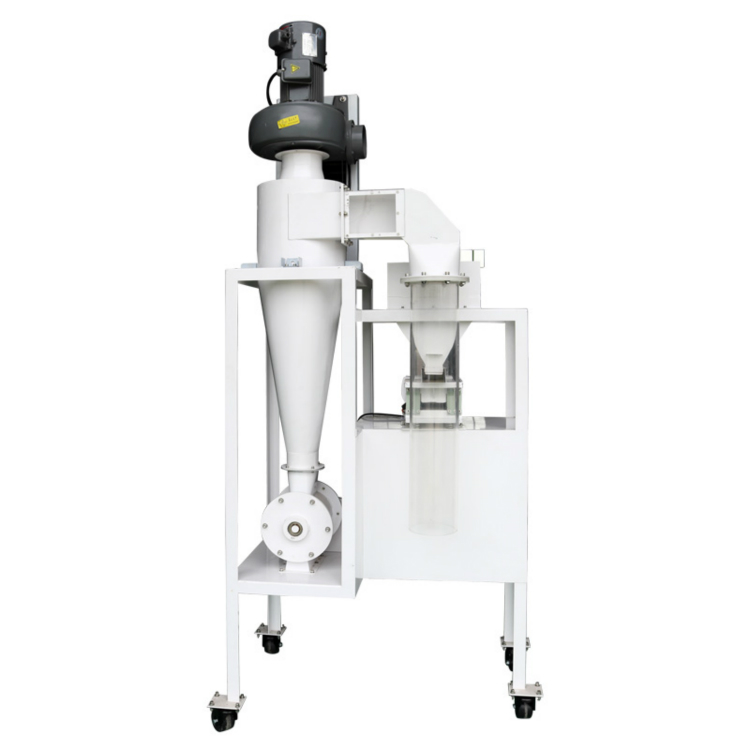

Wind sorter(Vacuum negative pressure gravitational separation equipment)FX series vacuum negative pressure wind sorter products,is one of the important products of our company. The machine can be used for various crops seeds(such as seaweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and subsidiary agricultural products seeds by wind separation and specific gravity grading.It has the features that the general air screen cleaner does not have.

Examples of Sorting

Maintenance

(1) Under the continuous working condition, the motor shall be overhauled every two months and general overhauled

once a year. Under the intermittent working condition, the maintenance interval shall be controlled by itself.

(2) Regularly check whether the bolts of equipment and other parts are loose, and if so, fasten them in time.

(3) When not in use, the machine shall be placed in a windproof, rainproof and sun proof place.

(4) The bearing of each part needs to be overhauled every two months, and the lubricating grease should be added according to the situation. For nylon bearing point, grease once per shift. The tensioning wheel, eccentric sleeve bearing, fan bearing, hoist bearing and air shutter bearing shall be greased once every two months.

(5) The dust collector shall be checked once a shift to see if there is any blockage, and the blockage shall be cleaned up in time.

(6) The air inlet of the specific gravity fan shall be cleaned once a shift to prevent light impurities from adsorbing on the protective net and affecting the air inlet.

Our Service

7*24hours

24 hours door to door fast response,7*24hours on-line service

On-time arrival

Arrive the customer site on the appointed time.

Comprehensive maintenance

Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.

Professional training

Supply fully description of operation and maintenance of product to help you understand the routine maintenance and simple troubles hooting.

Site clearing

Clean up machine and service area after trouble shooting

Strict acceptance

Check the performance with customer after service is completed to ensure the good working condition and best sorting performance
