Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
| Model |
6SXZ-63H |
6SXZ-126H |
6SXZ-189H |
6SXZ-315H |
|
Product Output)(t/h) |
0.5~1.5 |
1~3 |
1.5~4.5 |
2.5~7.5 |
|
Sorting Accuracy(%) |
≥99 |
≥99 |
≥99 |
≥99 |
|
Carryover Rate) (Bad:Good) |
≥6:1 |
≥6:1 |
≥6:1 |
≥6:1 |
|
Weight(kg) |
515 |
687 |
737 |
1015 |
|
Power(kW) |
1.0 |
1.4 |
1.8 |
2.6 |
|
Dimension L×W×H(mm×mm×mm) |
1063×1630×2171 |
1286×1630×2171 |
1563×1630×2171 |
2228×1630×2171 |
|
(Power Supply)(V/Hz) |
220/50(110/60) |
220/50(110/60) |
220/50(110/60) |
220/50(110/60) |
1.Real output depends on material and its contamination.
2. If products update, no further notice. Please refer to the real machine.
In addition to realize colour sorting by visible color spectrum system, also can realize the sorting of infrared sensitive material by using near infrared optical system.

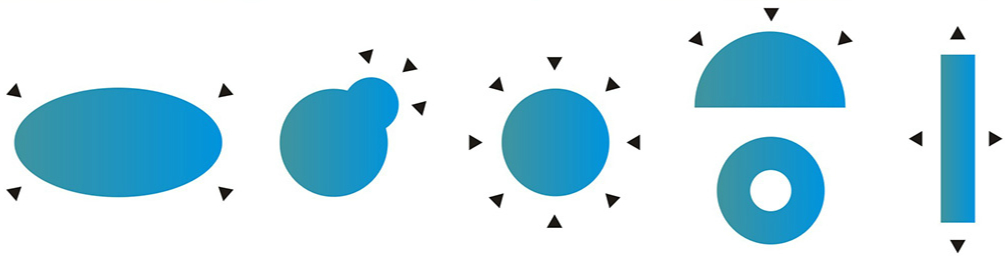

According to the characteristic of material, using special image processing algorithm with shape and color, to realize shape sorting successfully by detecting material's Circularity rate, linear rate, Perimeter and area, etc.
Use transmission-type background board instead of traditional reflection-type background board, simplified the system, improved the stability. Use RGB color tunable background lamp instead of RGB reflection board, in addition to get red, green, blue color, also can get multi colors by the mixing of RGB lights.widely expanded the colors of background.
* Flexible Configuration & Variable Light Source
The NIR colour sorter has a colour LED illumination system and NIR wide spectrum illumination system. The Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information acquisition. The LED illumination system has an efficient cooling system, enhancing system lifetime, low energy consumption and high performance. The NIR wide spectrum illumination system uses a German imported light source. The light source also has uniform illumination, high brightness, low energy consumption and stable property.
* Dedicated Image Processing Algorithm
Raw product can be analyzed based on shape and colour. For materials with complex colours, the machine sorts materials more directly and accurately by using HSV-changed colour space sorting method.

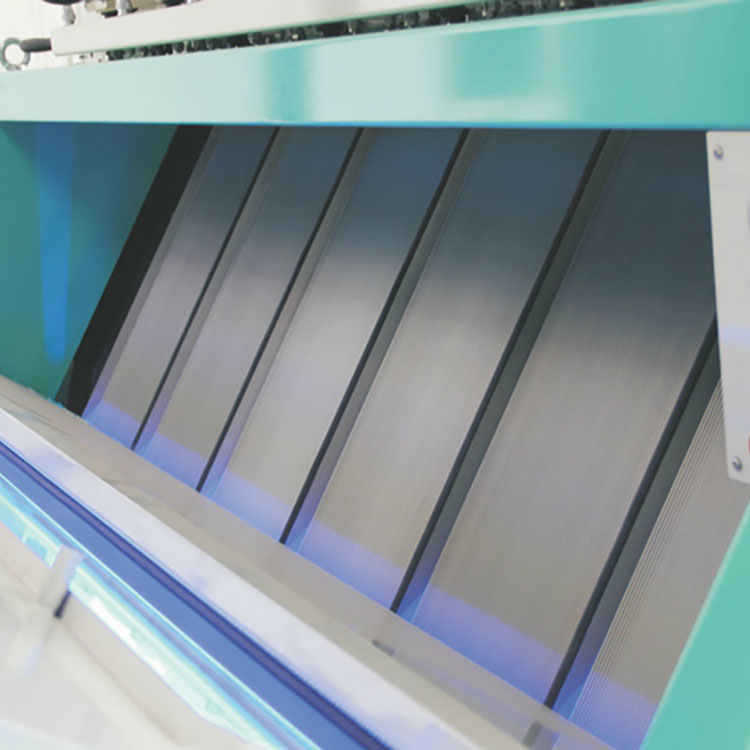

* Unique Trough Configuration
The special anodising technology complies with international standards. The system can be equipped with cascade plate and narrow chute channel to meet the colour sorting for various materials.
* High Quality Solenoid Valve
The high frequency ejector has a long service life and has very low air consumption, providing the highest capacity rejection output.The system is available with different sizes of solenoid valves according to the raw product being sorted.
* Excellent Rejection Rate
The advanced image acquisition system features intelligent processing algorithms, a high quality nozzle system and excellent elimination rate.
* Simple Easy to Use Touchscreen Interface
The graphical interface is easy to use and learn for both technicians and line operators.

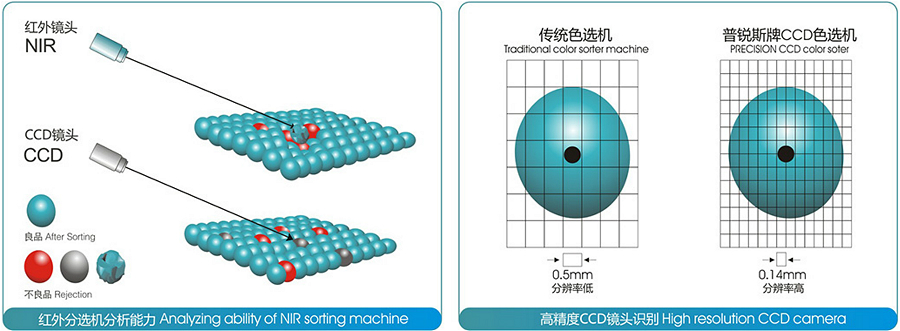

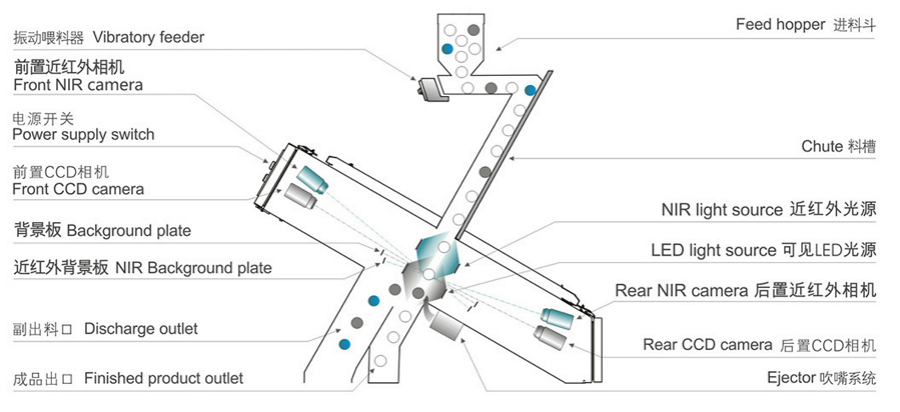

NIR+ TRUE COLOR IMAGE GRABBING SYSTEM

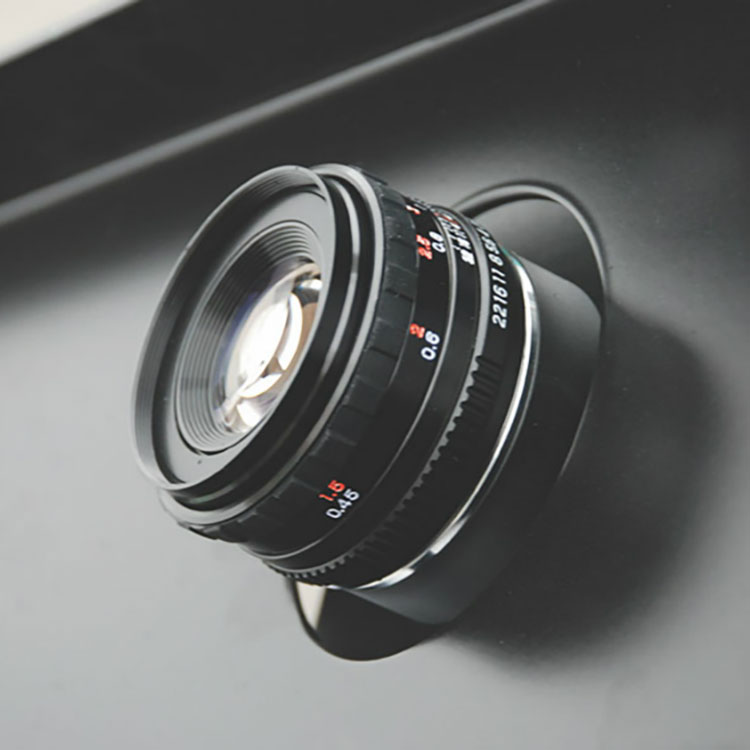

The IR color sorter machine have NIR CCD image grabbing system and true color CCD image grabbing system
The NIR image grabbing system can get NIR information from the raw material. This system expand the application range of color sorter spectrum and achieve the color sorting of some infrared-sensitive material
Use the color CCD image acquisition system to acquire the comprehensive information of red, green and blue color. The color sorter has the sensory ability of human eye, making better selection of materials , and satisfying the requirements better;
FLEXIBLE LIGHT SOURCE CONFIGURATION
The IR color sorter machine have color LED illumination system and NIR wide spectrum illumination system
For different raw material, the Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information acquisition. The LED illumination system has the cooling system, so the system has the long lifetime, low energy consumption and high performance
The NIR wide spectrum illumination system uses the Germany imported light source. This light source also has uniform illumination, high brightness, low energy consumption and stable property.

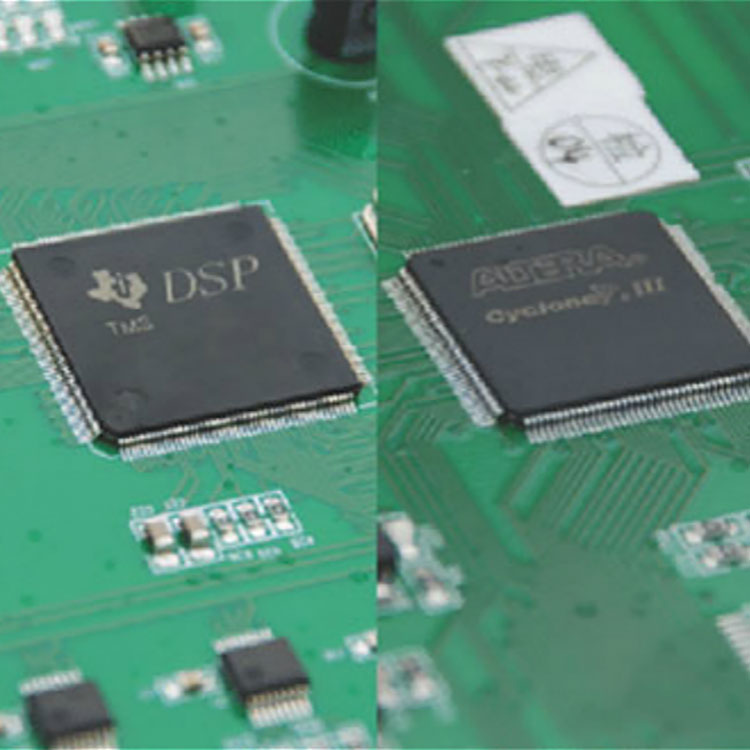

DEDICATED IMAGE PROCESSING ALGORITHM,EXCELLENT REJECTION RATE (CARRYOVER RATE)
According to the characteristics of material, use the shape and color combination algorithm;For materials with complex colors, the machine
sorts materials more directly and accurately by using HSV-changed color space sorting method.
Advanced image acquisition system + intelligent image processing algorithms + high-quality nozzle system = excellent elimination rate
HIGH-QUALITY SOLENOID VALVE
Use High-quality,high-frequency,long service life ejecter,super low air consumption guaranteed the biggest capacity,excellent rejection output
For the different sizes and characteristics of material particle, use the solenoid valve of different sizes.
SIMPLE OPERATION, EASY TO LEARN AND USE
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
