Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
2. Intelligent module design
Continuously ensure efficient and stable operation of the equipment.
3. High-speed processing system
Easy and high output, fast return on investment.
4. Small difference recognition
Improve the purity of finished products and create greater value.
|
Model |
NPS-4 |
NPS-6 |
NPS-8 |
|
Channels |
256 |
384 |
512 |
|
Capacity(t/h) |
1.0-2.0 |
1.6-2.6 |
2.2-3.3 |
|
Power(kw) |
2.2 |
3 |
4 |
|
Voltage(V) |
110-250V/50-60Hz |
110-250V/50-60Hz |
110-250V/50-60Hz |
|
Sorting accuracy |
99.99% |
99.99% |
99.99% |
|
Rejection rate(bad:good) |
≧10:1 |
≧10:1 |
≧10:1 |
|
Dimension(mm) |
1965*1630*2050 |
2595*1630*2050 |
3350*1630*2050 |
|
Air consumption(L/M) |
1000-1800 |
1500-3000 |
2000-4000 |
|
Weight(kg) |
750 |
1050 |
1400 |
Remark:we have 12 models for optical sorting plastic,here we just list 4 models for reference.

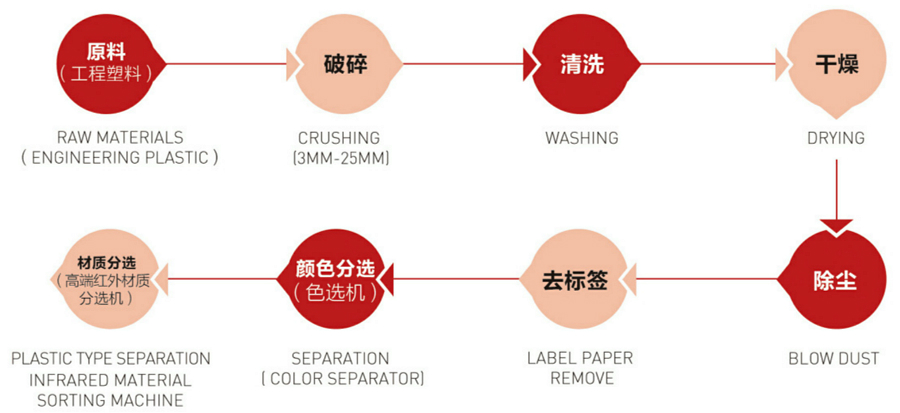

Raw material--Crushing--Washing--Drying--Color Sorting--Infrared optical sorting
