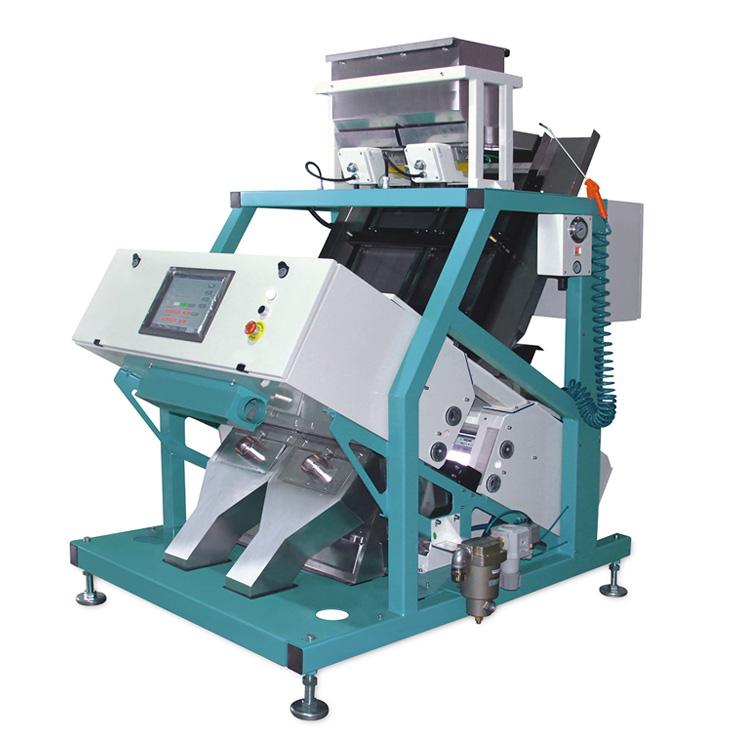

NIR Infrared Color Sorter Features

* Flexible Configuration & Variable Light Source – The IR colour sorter has a colour LED illumination system and NIR wide spectrum illumination system. The Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information acquisition. The LED illumination system has an efficient cooling system, enhancing system lifetime, low energy consumption and high performance. The NIR wide spectrum illumination system uses a German imported light source. The light source also has uniform illumination, high brightness, low energy consumption and stable property.
* Dedicated Image Processing Algorithm – Raw product can be analyzed based on shape and colour. For materials with complex colours, the machine sorts materials more directly and accurately by using HSV-changed colour space sorting method.
* Unique Trough Configuration – The special anodising technology complies with international standards. The system can be equipped with cascade plate and narrow chute channel to meet the colour sorting for various materials.
* High Quality Solenoid Valve – The high frequency ejector has a long service life and has very low air consumption, providing the highest capacity rejection output.The system is available with different sizes of solenoid valves according to the raw product being sorted.
* Excellent Rejection Rate – The advanced image acquisition system features intelligent processing algorithms, a high quality nozzle system and excellent elimination rate.

* Simple Easy to Use Touchscreen Interface – The graphical interface is easy to use and learn for both technicians and line operators.

NIR Infrared Color Sorter Technical Specifications

Model	MNS-63H	MNS-126H	MNS-189H	MNS-315H
Product Output)(t/h)	0.5~1.5	1~3	1.5~4.5	2.5~7.5
Sorting Accuracy(%)	≥99	≥99	≥99	≥99
Carryover Rate) (Bad:Good)	≥6:1	≥6:1	≥6:1	≥6:1
Weight(kg)	515	687	737	1015
Power(kW)	1.0	1.4	1.8	2.6
Dimension L×W×H(mm×mm×mm)	1063×1630×2171	1286×1630×2171	1563×1630×2171	2228×1630×2171
(Power Supply)(V/Hz)	220/50(110/60)	220/50(110/60)	220/50(110/60)	220/50(110/60)

Note: 1. Real output depends on material and its contamination.
If products update, no further notice. Please refer to the real machine.

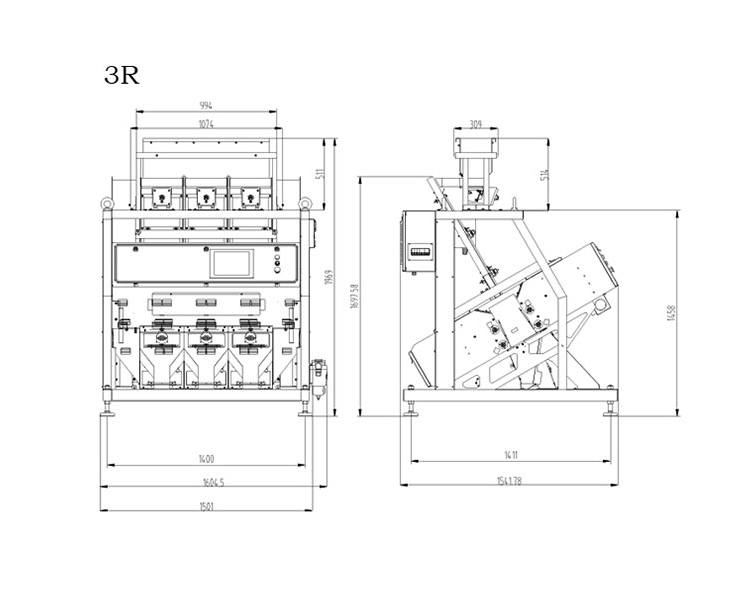

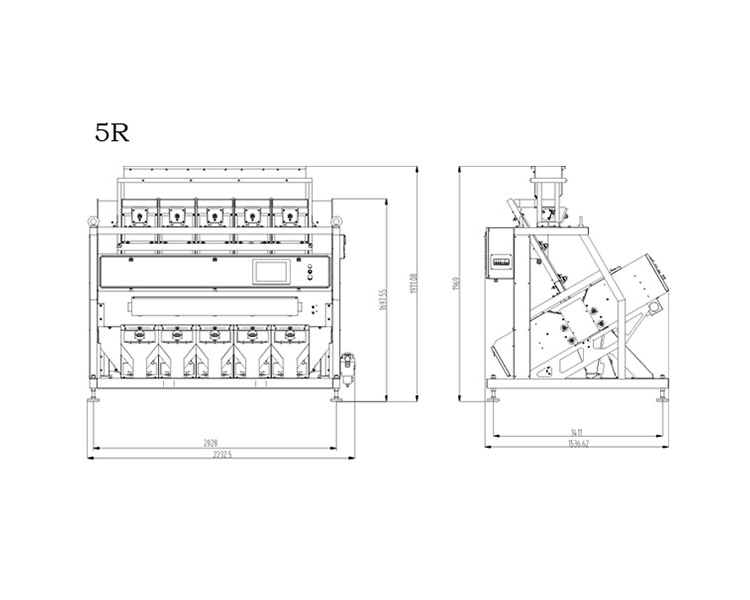

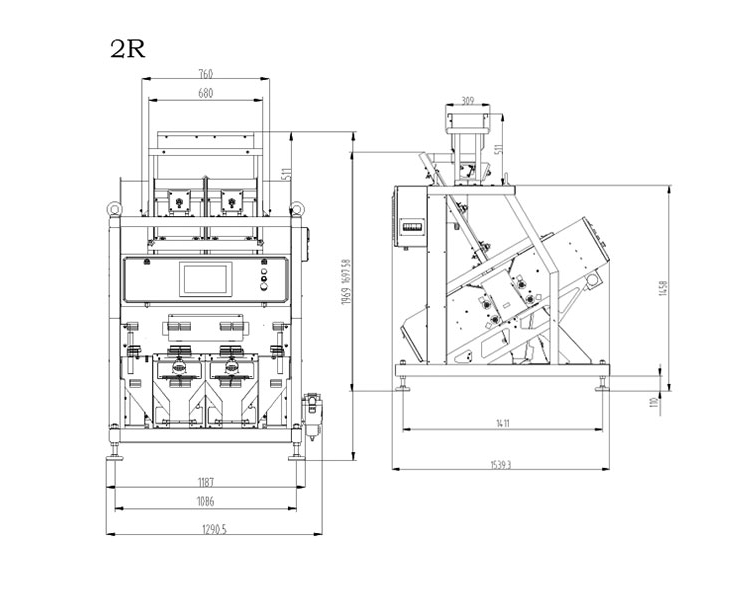

Structure Schematic

Advantage with NIR Infrared Color Sorter

A. wide range of application:In addition to realize colour sorting by visible color spectrum system, also can realize the sorting of infrared sensitive material by using near infrared optical system.

B: combine shape sorting function:According to the characteristic of material, using special image processing algorithm with shape and color, to realize shape sorting successfully by detecting material's Circularity rate, linear rate, Perimeter and area, etc.

C: transmission-type color tunable background lamp:Use transmission-type background board instead of traditional reflection-type background board, simplified the system, improved the stability. Use RGB color tunable background lamp instead of RGB reflection board, in addition to get red, green, blue color, also can get multi colors by the mixing of RGB lights.widely expanded the colors of background.

Analyzing Ability of NIR Infrared Color Sorter

Shape Sorting

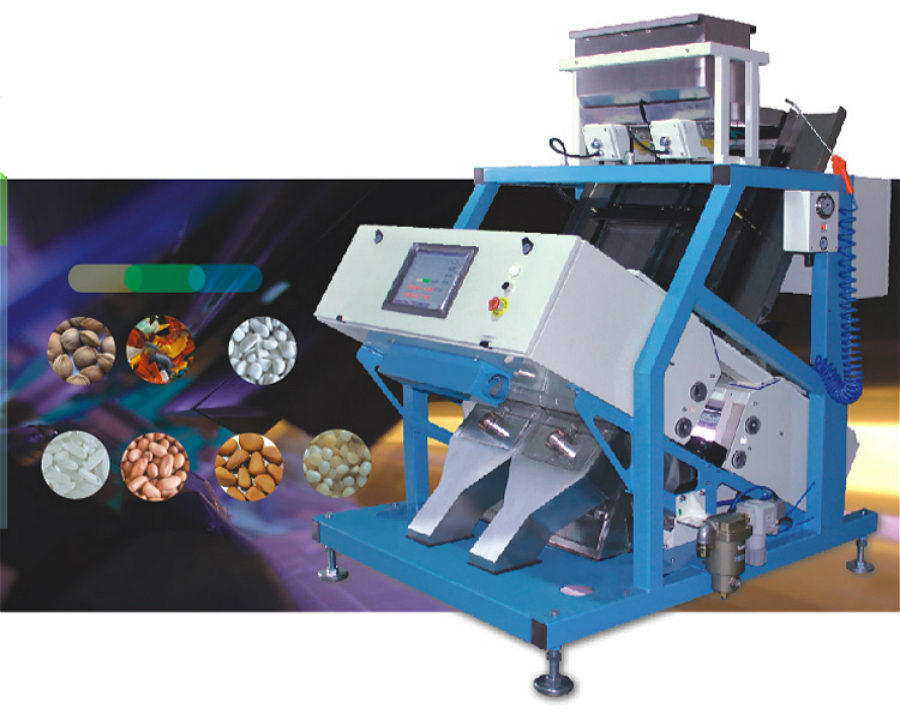

Example of Sorting
