Belt Type Plastic Color Sorter Application

* PP Caps

* HDPE flake

* ABS/PS/PC/PVC plastic flake

OBelt Type Plastic Color Sorter Operational Principle

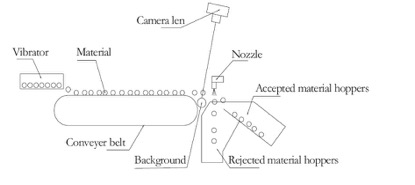

Firstly, the raw material goes through the vibration hopper and will fall on the conveyor belt, and then pass through the detector and the background board.

Under the light resource, the light sensor will receive the compound light from the material, and the system sends out signals, driving the movement of the ejection valve, and remove off-color material to the eject chamber. Accepted material freely falls down to the finished-product chamber, so that the material is precisely sorted.

Technical Specification

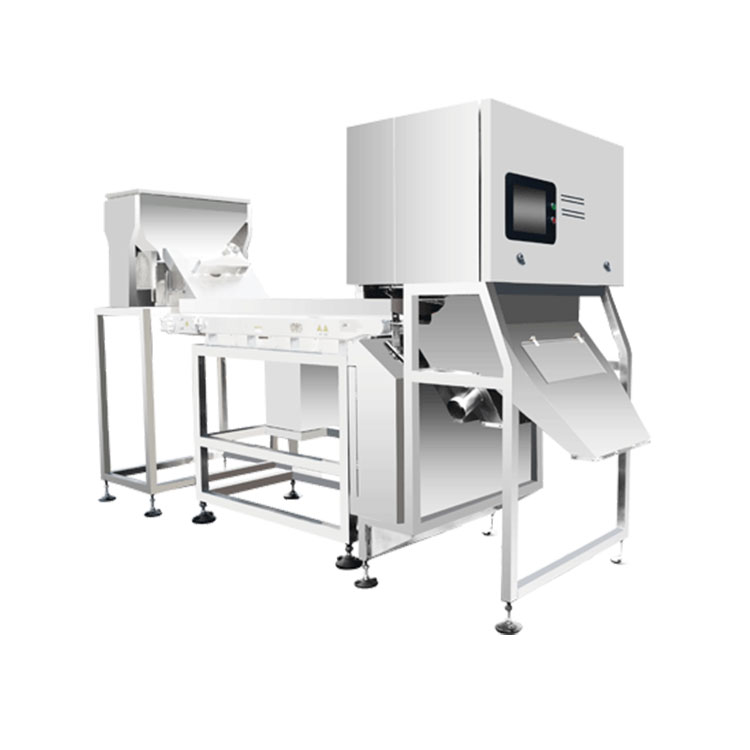

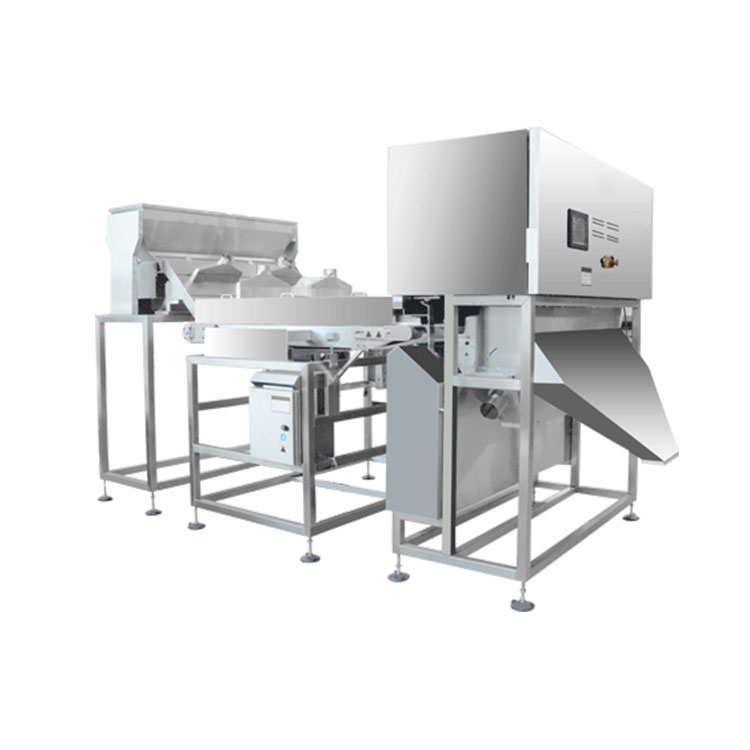

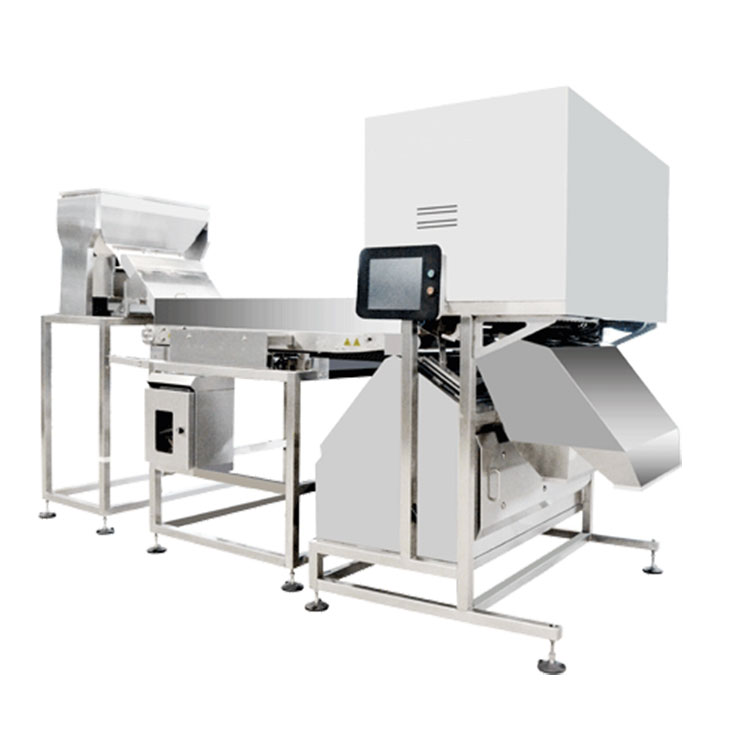

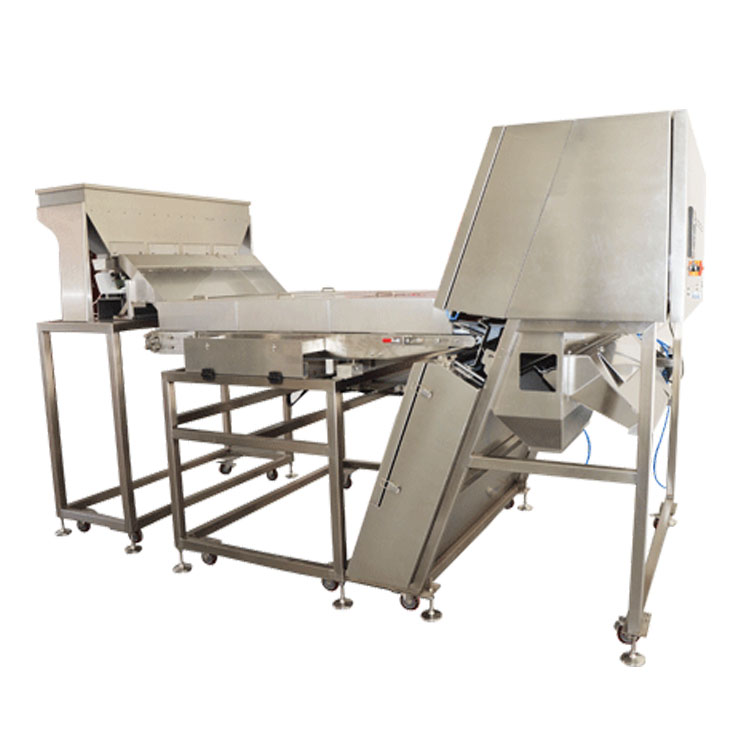

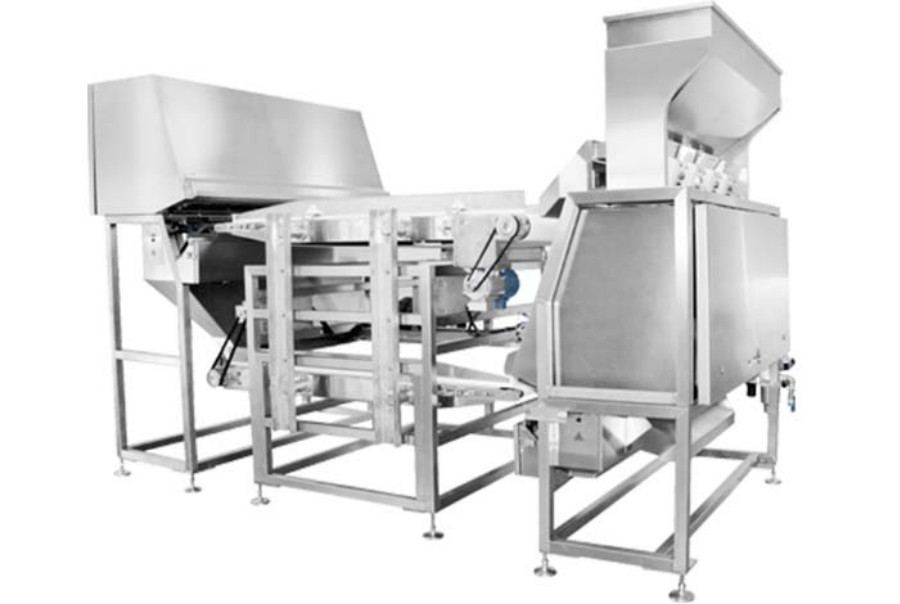

Product Name	Double Layer Belt Type Plastic Color Sorter
Capacity	1 Ton/Hour
Executing Unit	480
Voltage	180~240V(50Hz)
Power of Main Machine	4.5KW
Air Pressure	0.6~0.8Mpa
Air Consumption	4.5 m3/Min
Dimension(L*W*H)	3390 x 2110 x 2360 (mm)
Weight	1500(kg)

Belt Type Plastic Color Sorter Device Characteristic

* Separate various colors;
* Strengthened spout and air jet design for high percent contaminated and small size material, durable and dependable, working life over 1 billion blow times;
* Use LED light source, with three years lifetime and better sorting accuracy;
* Meyer customized camera sensor, better resolution, can reach 0.2*0.2mm;
* New type touch-screen operation platform, big colorful screen and user-friendly operation interface, can easily change sorting precision to the best quality;
* Adopts latest software, highly precise sorting, with low product loss;

* Except for some traditional functions like double-face sorting and second-time sorting, it also has more intelligentized functions, which simplify operation and handle.
