Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
Most people are relatively unfamiliar with “mesh”. Below I will give you a general idea of what is the mesh:
Mesh: physics definition, the particle size or thickness of the material, generally defined as the number of holes in the screen within 1 inch; the sieve size is the size of the mesh through which the particles can pass through the screen, to 1 inch (25.4mm) The number of sieve holes in the screen of the length is expressed as the number of meshes.
The larger the mesh number, the finer the particle size of the material; the smaller the mesh size, the larger the material particle size. The sieve size is the size of the sieve through which the particles can pass through the screen, and is expressed as the number of sieve holes in the screen of 1 square inch (25.4 mm) in length, and is therefore referred to as the mesh number.

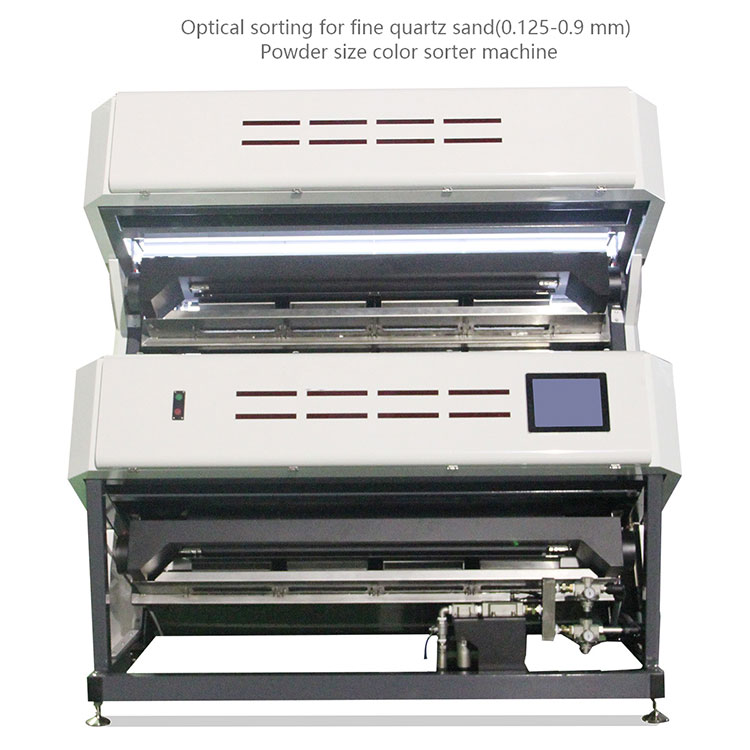

Such a particle that is difficult for us to identify with the naked eye, METKEY fine particle ore optical sorting machine has been done.
1, Vertical chute solves the problem of powder and track sticking during powder ore sorting
2, Suitable for the ore particle range from 26mesh to 120mesh
3, The slides are made of high-density alloy and are resistant to wear and scratches.
4,Each chute has 4 RGB cameras,128 ejectors which is the highest configuration in the industry.So the machine could see more precise and and reject more precise

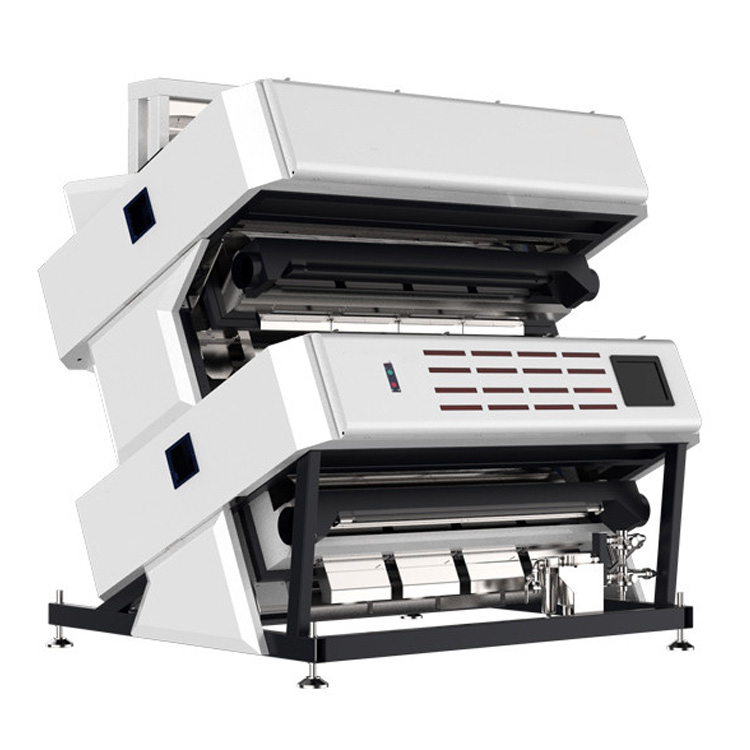

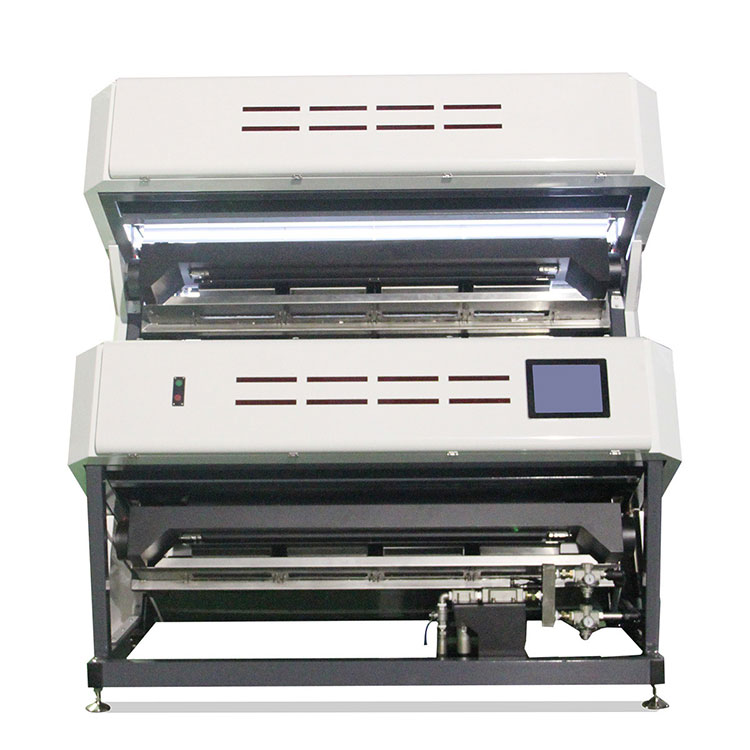

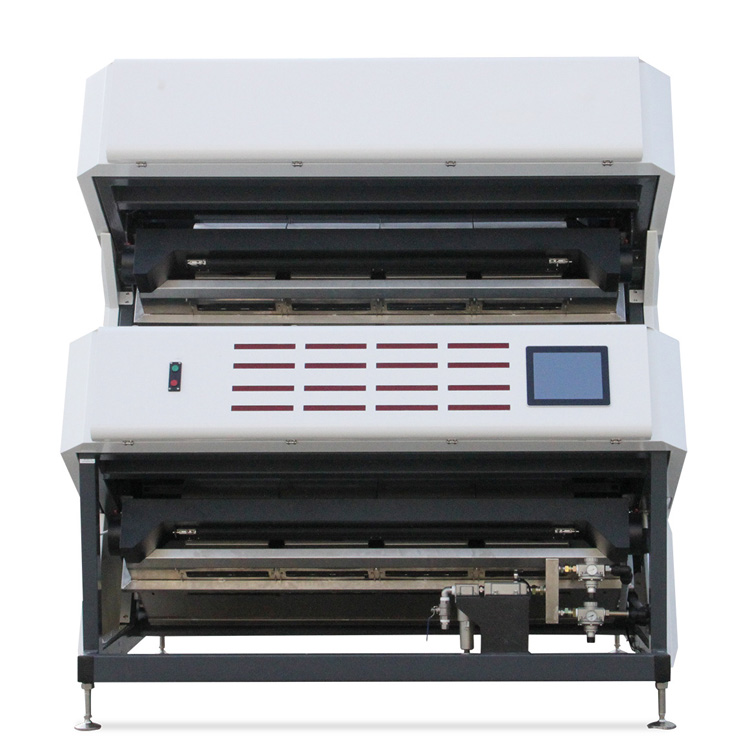

5,Two kinds of structure(Single-decker and double-decker) and six models for option.
|
Model |
Production capacity(T/H) |
Sorting Accuracy |
Air pressure(Mpa) |
Power(Kw) |
Weight(Kg) |
Dimension(mm) |
|
QS3008-1Z |
26-40Mesh:5-10 |
≥99.9999% |
0.6-0.8 |
6.3 |
2600 |
3890*1730*1760 |
|
40-70Mesh:4-8 |
||||||
|
70-120Mesh:2-4 |
||||||
|
QS2256-1Z |
26-40Mesh:4-8 |
≥99.9999% |
0.6-0.8 |
4.7 |
2100 |
3110*1857*1772 |
|
40-70Mesh:3-6 |
||||||
|
70-120Mesh:1.5-3 |
||||||
|
QS1504-1Z |
26-40Mesh:3-5 |
≥99.9999% |
0.6-0.8 |
3.25 |
1600 |
2330*1885*1759 |
|
40-70Mesh:2-4 |
||||||
|
70-120Mesh:1-2 |
||||||
|
QS1504-2Z |
26-40Mesh:3-5 |
≥99.9999% |
0.6-0.8 |
6.1 |
2400 |
2330*2250*2609 |
|
40-70Mesh:2-4 |
||||||
|
70-120Mesh:1-2 |
||||||
|
QS1680-2Z |
26-40Mesh:3.5-5.5 |
≥99.9999% |
0.6-0.8 |
7 |
2350 |
2814*2029*2609 |
|
40-70Mesh:2.5-4.5 |
||||||
|
70-120Mesh:1.5-2.5 |
||||||
|
QS2240-2Z |
26-40Mesh:4-7 |
≥99.9999% |
0.6-0.8 |
8 |
3150 |
3253*2029*2609 |
|
40-70Mesh:3-5.5 |
||||||
|
70-120Mesh:2-3 |
