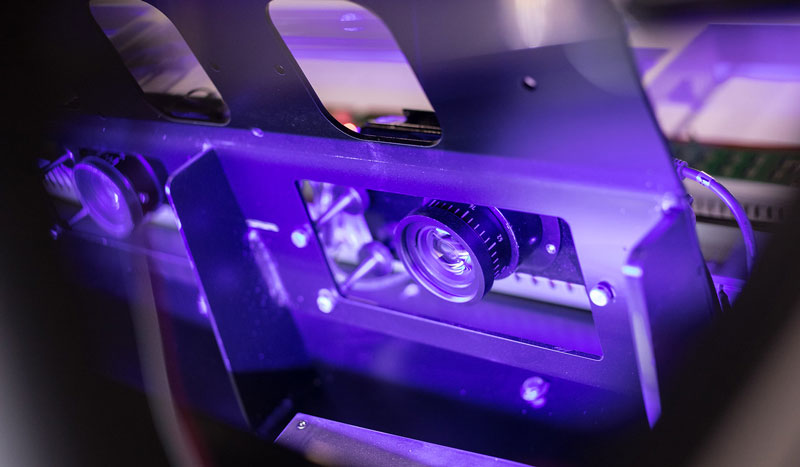

1. Color image acquisition system
The use of high-definition super-color CCD camera image acquisition system, visual dynamic image capture system, real-time display material capture images, dynamic information acquisition, selection quality detection, data intelligent analysis, can freely select and store the most preferred solution. High resolution and fast processing

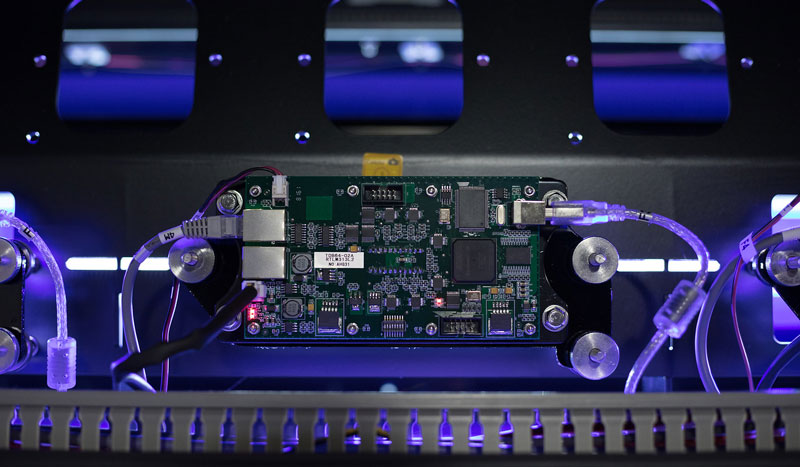

3. Image processing system
International high-end full-color line scanning technology,DSP-FPGA international cutting-edge processing technology, color and shape combined with a variety of pattern intelligent complex algorithms, for different materials to provide "color selection + shape selection" , Solution. Has shape-select size and weight.

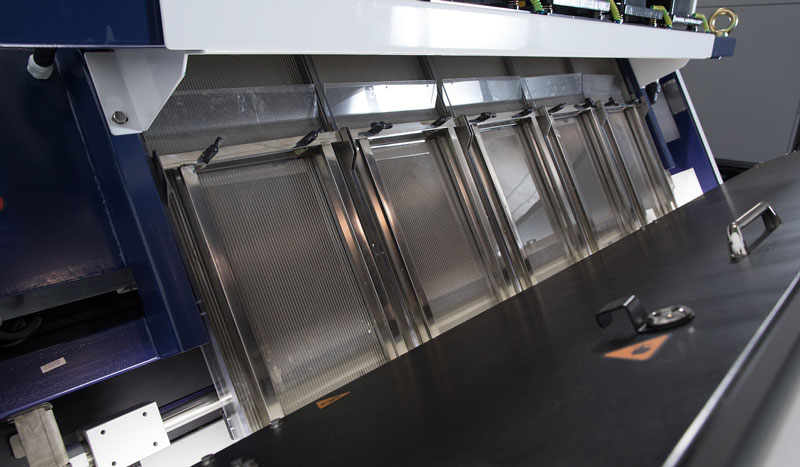

4. Original anti-track running
Original anti-track running, reduce air resistance, reduce gas consumption. Faster response, more precise strikes, smaller outings, and larger production.

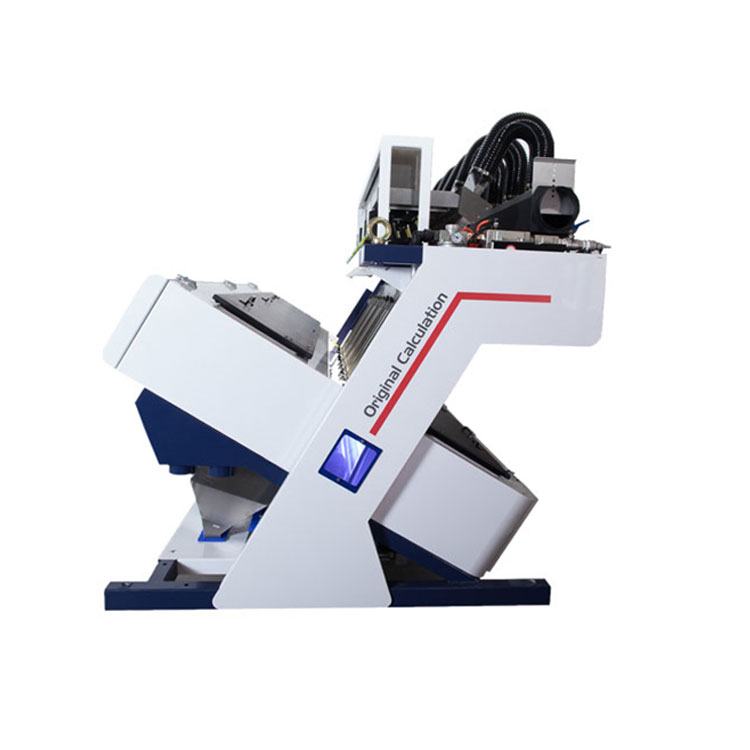

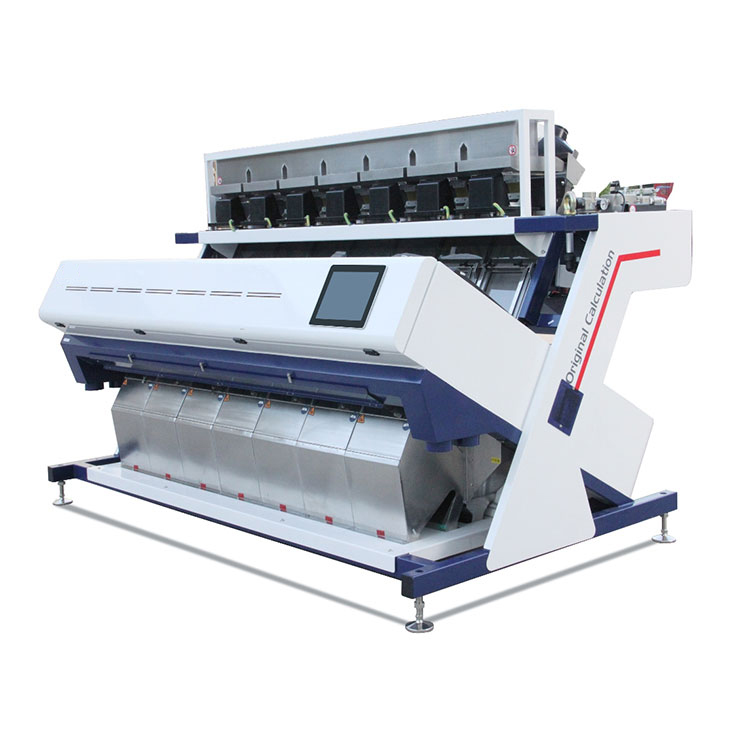

7 Chute Intelligent Color Sorter Feature
Model |
RC-1 |
RC-3 |
RC-5 |
RC-7 |
RC-10 |
Channels |
64 |
192 |
320 |
448 |
640 |
Capacity (t/hr) |
1-3 |
3-6 |
5-10 |
7-14 |
10-20 |
Carryover Rate(Bad:Good) |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
>10:1 |
Sorting Accuracy(%) |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
≥99.99% |
Power Requirements |
Single Phase 220V |
Single Phase 220V |
Single Phase 220V |
Single Phase 220V |
Single Phase 220V |
AirConsumption(cfm) |
32 |
64 |
106 |
150 |
200 |
Power (Kw) |
0.5 |
0.7 |
1.1 |
1.9 |
2.3 |
Weight (lb) |
600 |
1,700 |
2,400 |
3,100 |
4,000 |
Width (in) |
45 |
70 |
91 |
116 |
160 |
Height (in) |
80 |
80 |
80 |
80 |
80 |
Depth (in) |
68 |
68 |
68 |
68 |
68 |
