Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
Made of Stainless Steel
LED Light Source, Save user cost and improve stability.
CCD color sensor, high sorting efficiency
Touch Screen, easy to use
Double Layer, sorting the material for two times
|
Name |
MBPS1110 Double Layer Belt Plastic Color Sorter Machine |
|
Capacity |
1 Ton/Hour |
|
Executing Unit |
480 |
|
Voltage |
180~240V(50Hz) |
|
Power of Main Machine |
4.5KW |
|
Air Pressure |
0.6~0.8Mpa |
|
Air Consumption |
4.5 m3/Min |
|
Dimension(L*W*H) |
3390 x 2110 x 2360 (mm) |
|
Weight |
1500(kg) |
ABS/PS/PC/PVC plastic flake

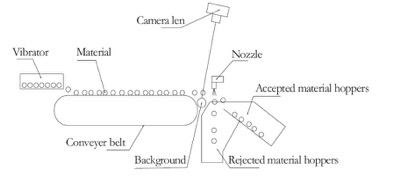

Firstly, the raw material goes through the vibration hopper and will fall on the convener belt, and then pass through the detector and the background board.
Under the light resource, the light sensor will receive the compound light from the material, and the system sends out signals, driving the movement of the ejection valve, and remove off-color material to the eject chamber. Accepted material freely falls down to the finished-product chamber, so that the material is precisely sorted.
Separate various colors;
Strengthened spout and air jet design for high percent contaminated and small size material, durable and dependable, working life over 1 billion blow times;
Use LED light source, with three years lifetime and better sorting accuracy;
Meyer customized camera sensor, better resolution, can reach 0.2*0.2mm;
New type touch-screen operation platform, big colorful screen and user-friendly operation interface, can easily change sorting precision to the best quality;
Adopts latest software, highly precise sorting, with low product loss;
Except for some traditional functions like double-face sorting and second-time sorting, it also has more intelligentized functions, which simplify operation and handle
