Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
| Model |
MSDBS1100 |
|
|
Layer number |
Double |
|
|
Output（T/h） |
1-5cm |
8-12 |
|
4-8mesh |
5-9 |
|
|
8-16mesh |
3-7 |
|
|
16-26mesh |
1.5-3 |
|
|
Carryover rate（bad：good） |
≥30：1 |
|
|
Accuary（%） |
≥99% |
|
|
Voltage(v/Hz) |
220V/50HZ |
|
|
Power(Kw) |
2.0-4.0 |
|
|
Air Pressure(Mpa) |
0.6-0.8 |
|
|
Consumption(L/min) |
3800 |
|
|
Weight(Kg) |
1850 |
|
|
Size(mm) |
4014*2100*2374 |
|
Precious metals: gold, silver, zirconium, tungsten, molybdenum, niobium.

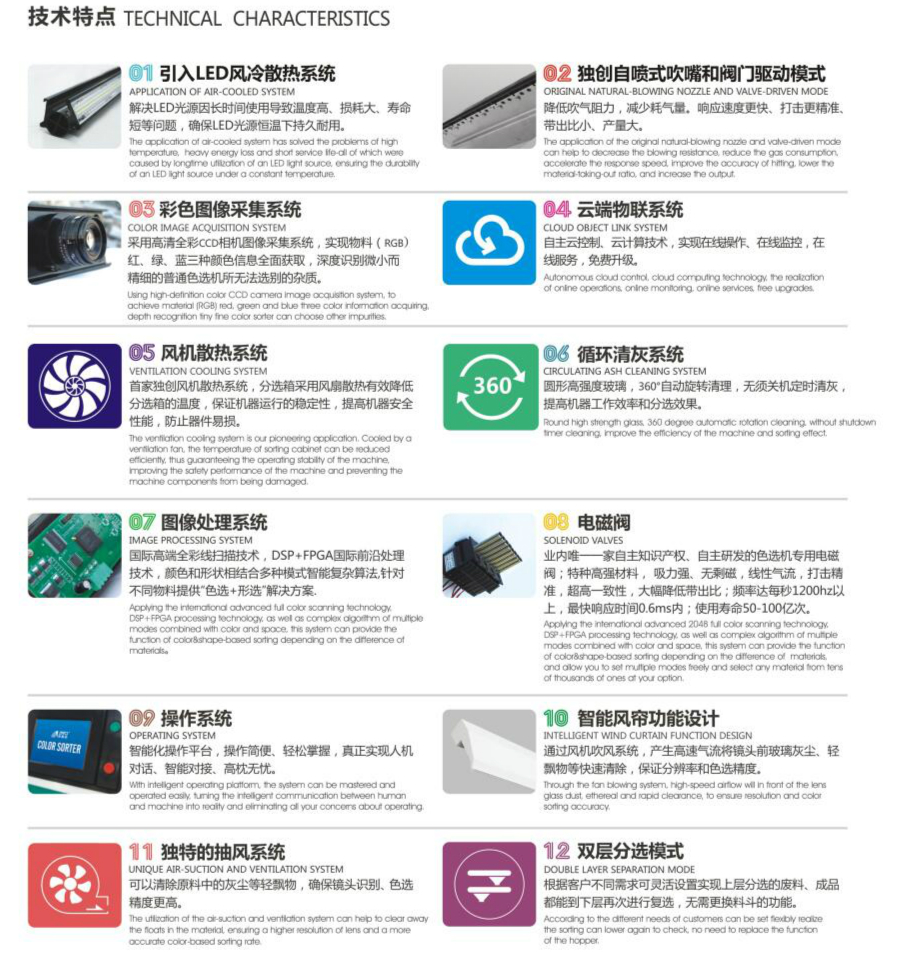

1. New LED light source system
Designed with intelligent LED optical system, intelligent light control flexibly switches the color of the backlight and uses a concentrating mirror to prevent LED astigmatism.

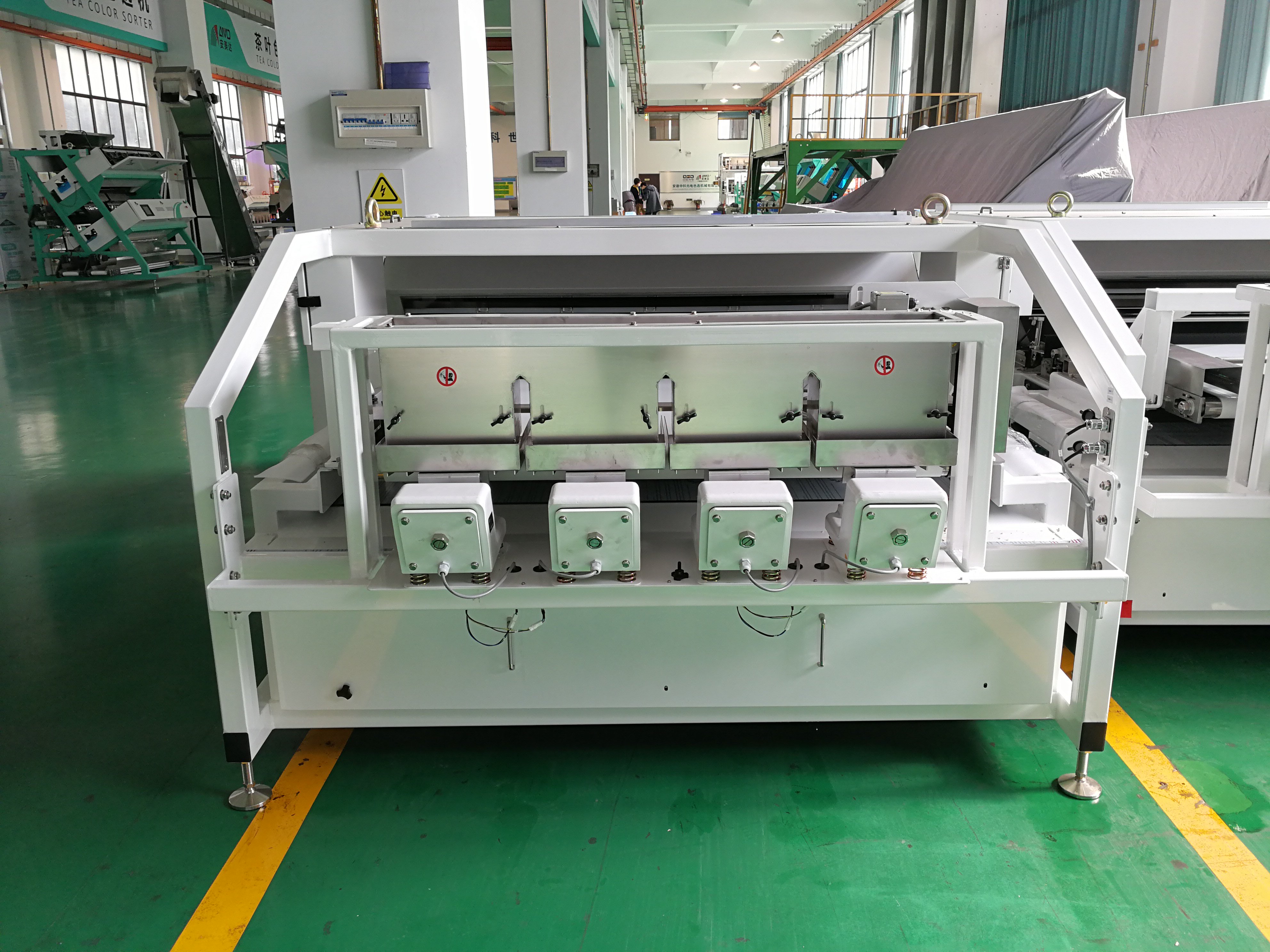

2. Feeding conveyor system
For the characteristics of large, small, dry and wet ore particles, slow, fast and free fall conveying is adopted to ensure uniform feeding.
3. Image acquisition system
The high-definition full-color far-spec lens is used to realize the comprehensive acquisition of materials (RGB) red, green and blue, and to deeply identify small and fine ordinary color sorters that cannot be selected.
4. Image processing system
High-end full-color line scanning technology, DSP+FPGA leading edge processing technology, CCD reaches 5400 points X10K scanning capture, color and shape combined with multiple modes intelligent complex algorithm, providing "color selection + shape selection + penetration" for different ore materials Program.
5. Solenoid valve
It adopts special solenoid valve for ore, with high frequency, accurate color selection, high efficiency and energy saving, and intelligent selection of different sizes of ore particles.
6. Cloud object system
Autonomous cloud control, cloud computing technology, online operation, online monitoring, online services, free upgrades.

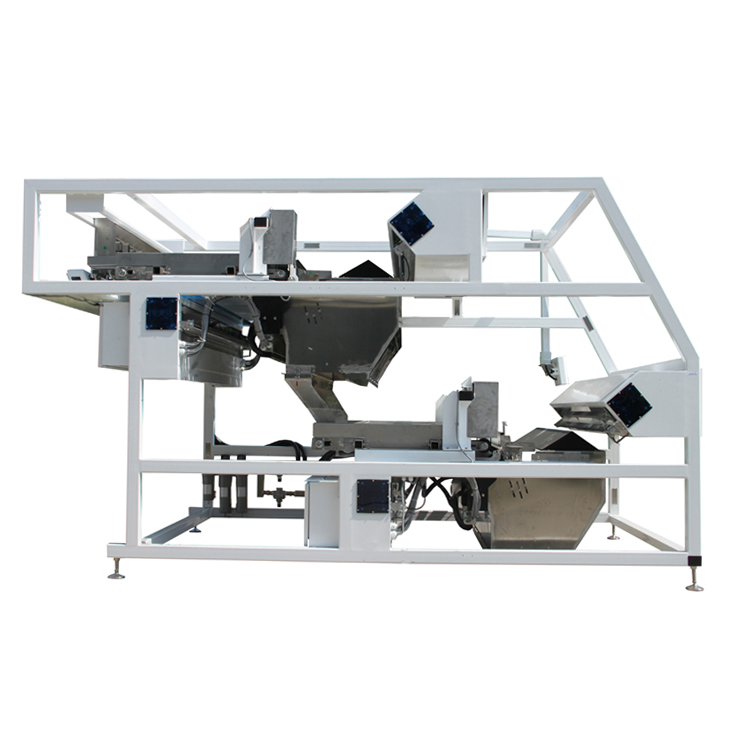

7. Custom sorting structure
Different ore sorting requirements, the introduction of a single layer double layer, single vision double vision and other models combination; two-layer structure can achieve the upper layer of sorting materials, can be re-selected to the lower layer, the color selection accuracy is higher.
8. Automatic dust cleaning system
Add automatic dust removal and automatic spray cleaning system devices. It can be built according to the output of special mines to ensure the stability of the sorting effect.
1. Solve the problem of sorting in the harsh environment of dry ore with high dust, high pollution and high corrosion.
2. The selection range from 4 cm to 26 mesh large and small ore particles.
