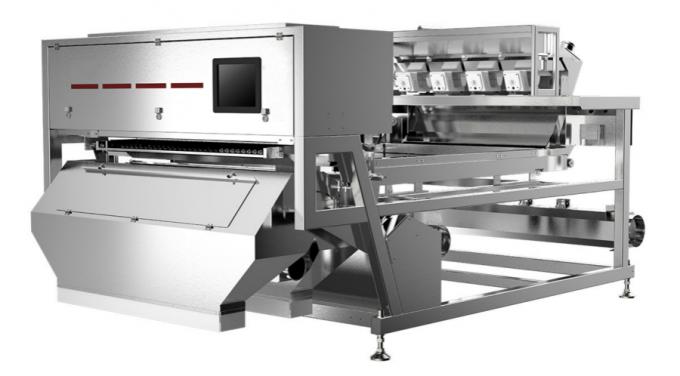

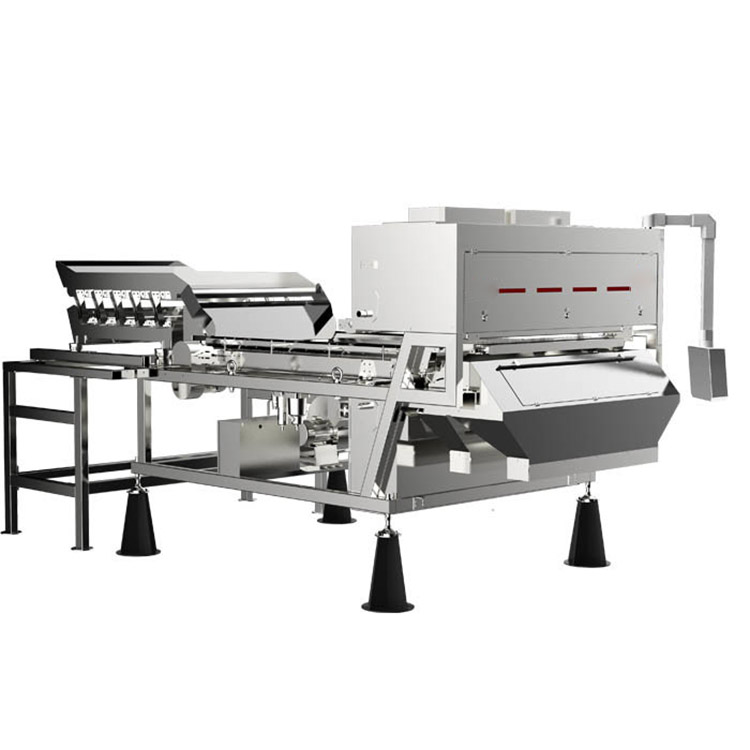

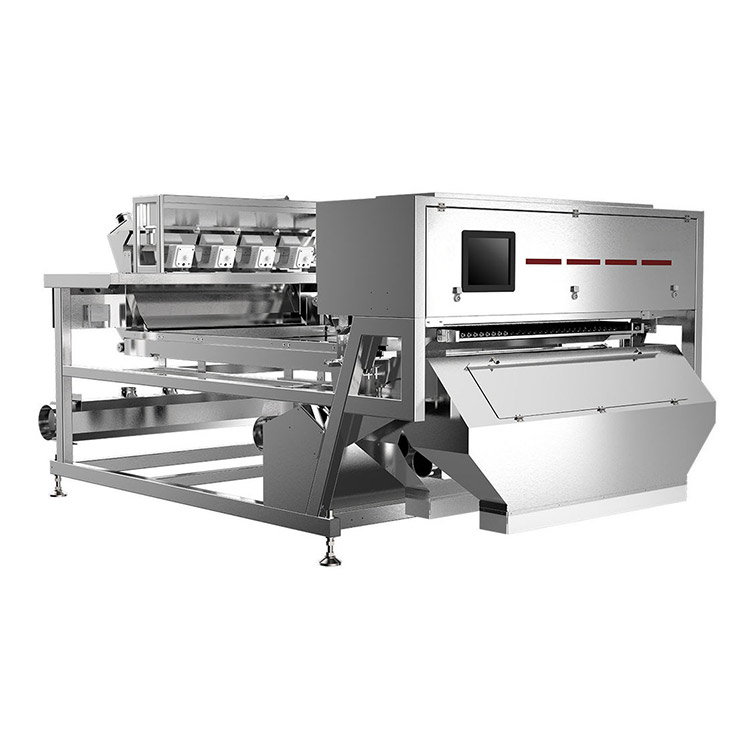

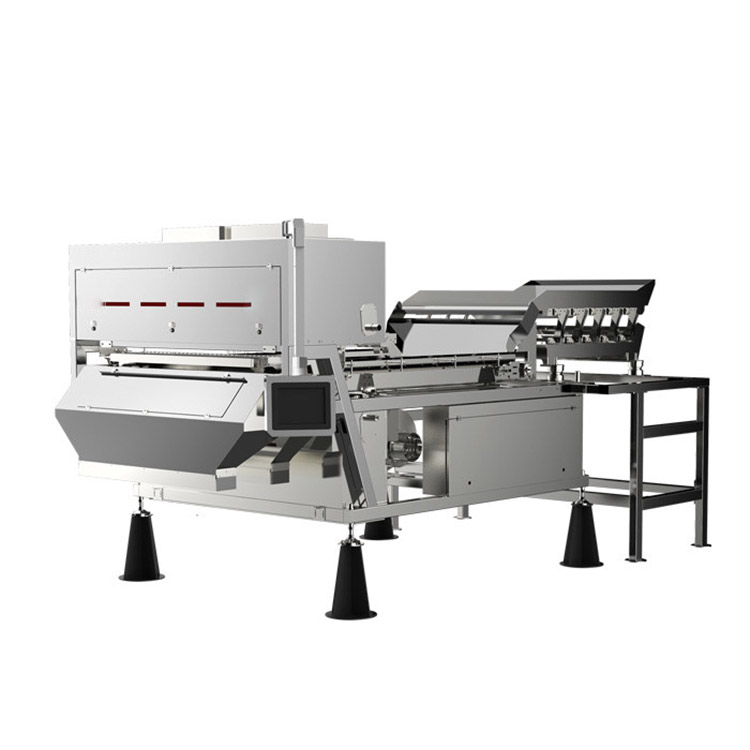

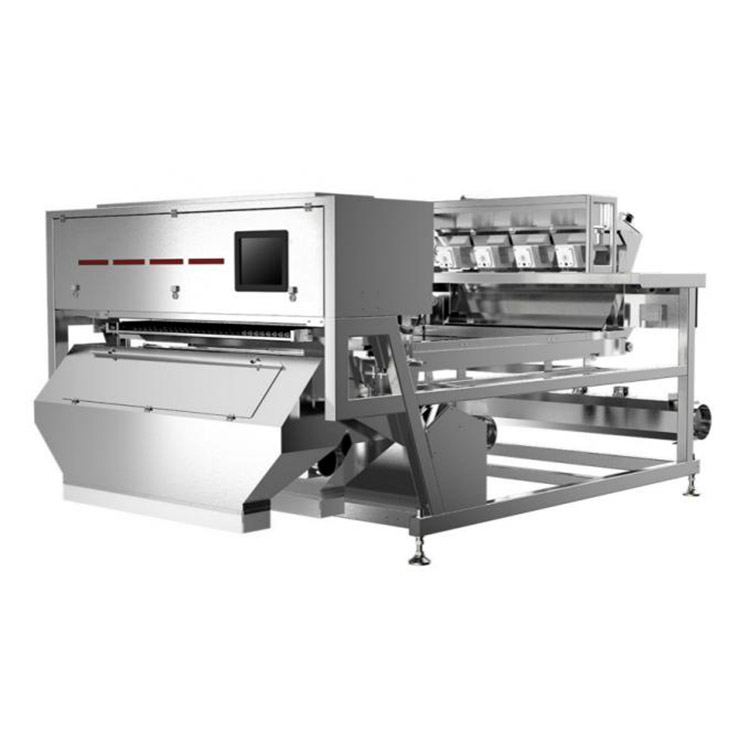

METKEY Belt Nuts Optical Sorting Machine integrates advanced visible light and InGaAs invisible light sorting technologies.
BSI series nuts color sorter is mainly used for separate all nuts kernel and shells.
The colors of nuts and shells are similar, and it is difficult for ordinary visible light cameras to identify them. Usually infrared spectroscopy technology is used for sorting, but infrared has a week recognition effect on dark shells, so composite visible light is also required
Effective sorting applications: peach kernels, almonds, walnuts, pine nuts, almonds
Mode |
Capacity(T/h) |
Carry-over Rate(bad:good) |
Accuracy(%) |
Voltage(v/Hz) |
Power(Kw) |
Weight(Kg) |
Dimension(mm) |
BS300CJ-FX-C |
0.35-0.7 |
10:01 |
99% |
220/50 |
2.9 |
780 |
3266*1025*1562 |
BS600CJ-FX-C |
0.7-1.4 |
10:01 |
99% |
220/50 |
3.4 |
1000 |
3266*1326*1562 |
BS1200CJ-FX-C |
1.5-3 |
10:01 |
99% |
220/50 |
4.4 |
1400 |
3266*1928*1562 |
BS1800CJ-FX-C |
2-4 |
10:01 |
99% |
220/50 |
5.4 |
2020 |
3266*2530*1562 |

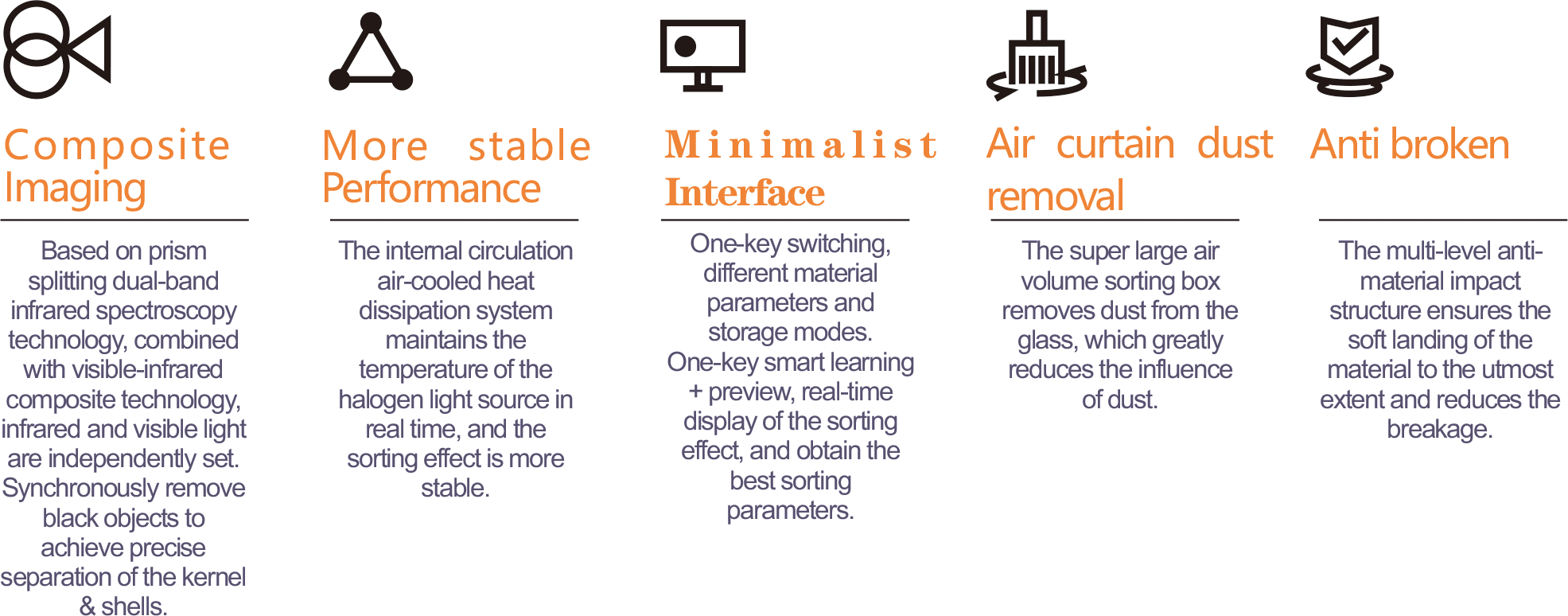

Belt Nuts Optical Sorting Machine Core Technologies
Sorting Applications
