Coffee beans refer to the fruit of plants used to make coffee. After the coffee cherries are picked, they must be dried in the sun to remove the skin, pulp, rind and silver skin before roasting. Coffee beans are mixed with dead beans, black beans, unhulled beans with different colors, and these impurities will affect the quality and taste of good coffee beans. Therefore, the dehulled coffee beans also need to be sorted by a color sorter to remove impurities.

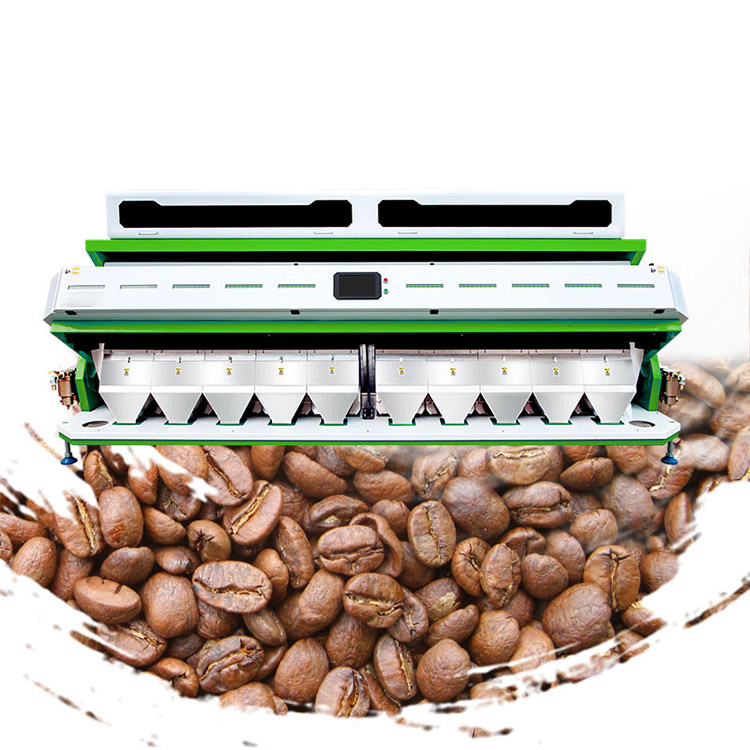

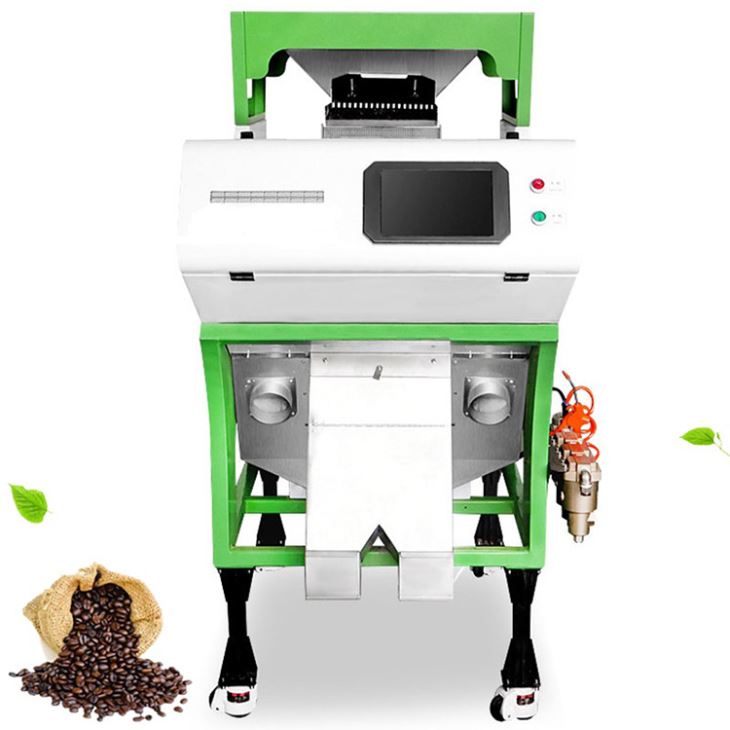

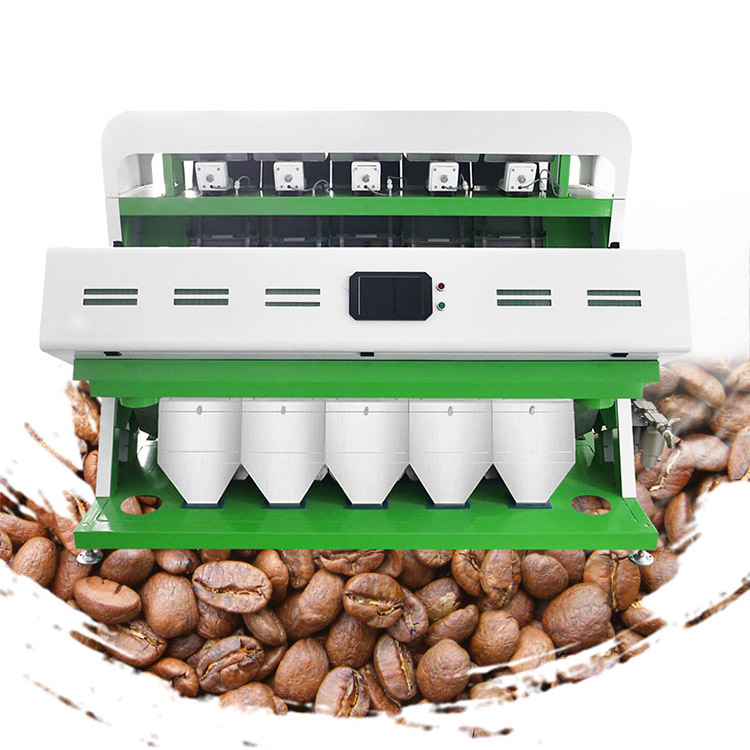

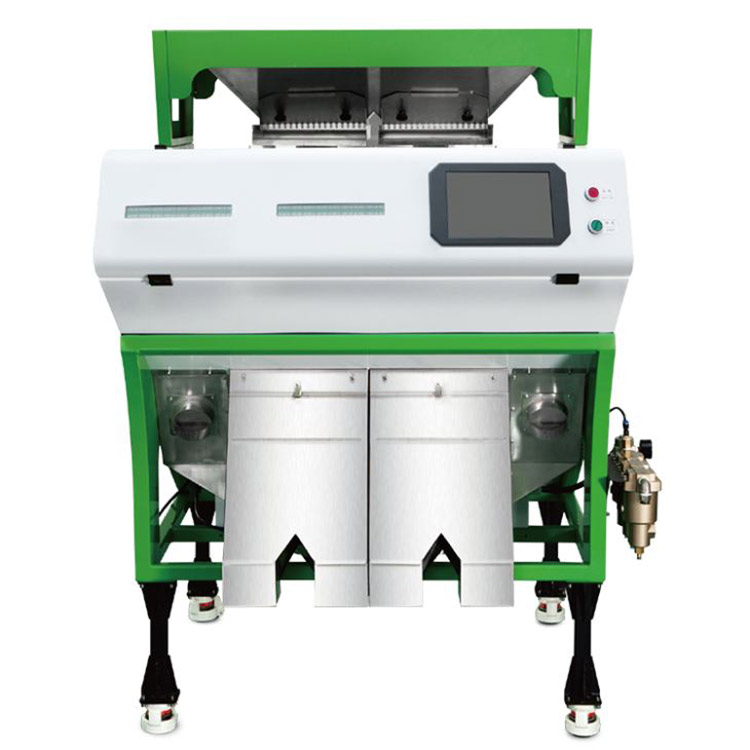

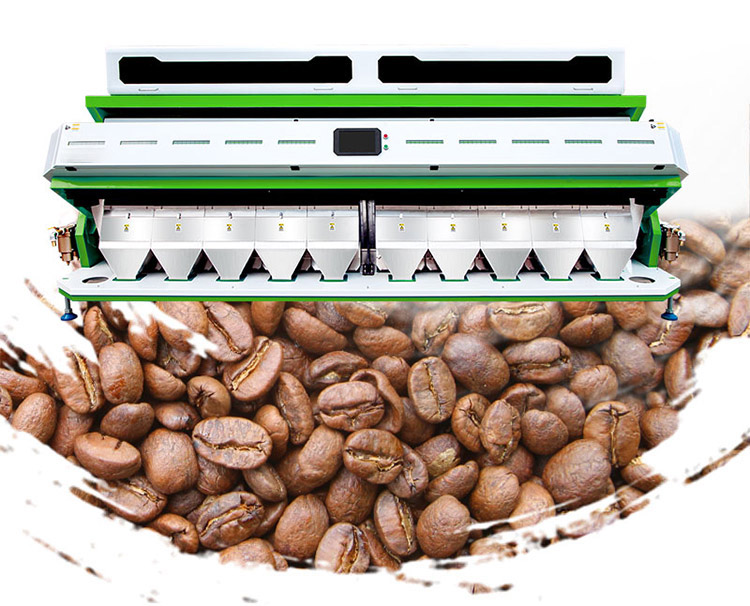

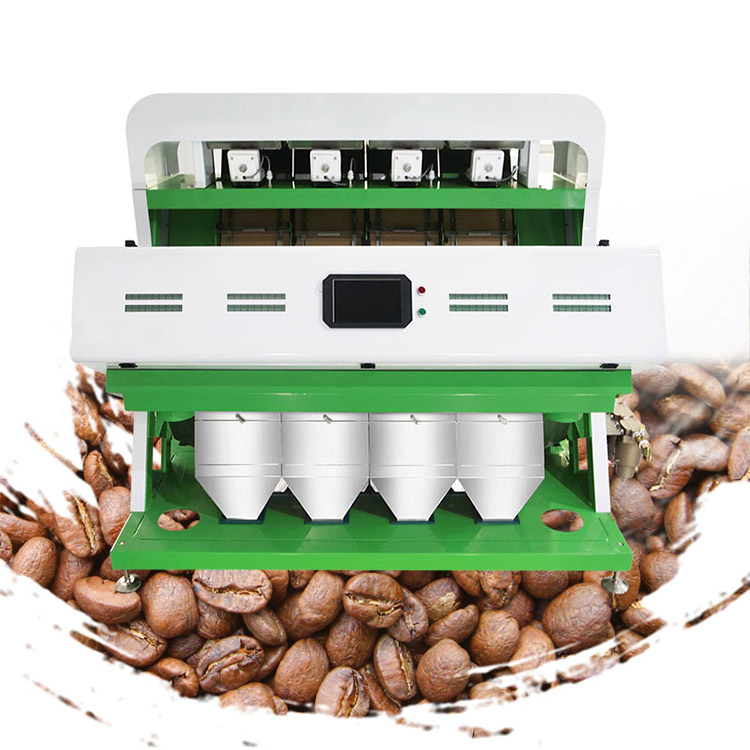

METKEY intelligent color CCD Coffee Bean Sorting Machine adopts the world's top industrial customized professional CCD sensor, the industry's only leading high-definition 53.88 million pixel high-speed scanning imaging for color sorting of coffee beans, which can accurately identify the unripe beans, black beans, bandages in the coffee beans. The different-colored particles and impurities in the shell, different shades of color and impurities are removed one by one, leaving excellent coffee beans. The equipment uses a new anti-rust chute, non-toxic and harmless, in line with international food safety standards, professional channel for coffee beans, no material blockage, smooth and even sliding, more accurate color selection, and greater output.
The coffee beans are color-sorted to remove impurities such as black beans, uncooked beans, and different-colored particles, and the value of good coffee beans doubles immediately. Using the intelligent color CCD coffee bean color sorter, compared with the traditional manual screening, the color sorting of the intelligent color CCD coffee bean color sorter can save labor, time, high efficiency and low processing cost. True color, the latest bean selection tool in the coffee industry!
1. Advanced image acquisition system: high-resolution CCD image sensor and high-precision industrial lens are used to achieve clear images, capture, and instantly capture subtle defects on the surface of materials. The camera automatically collects and analyzes data. Customers only need to click to keep or remove materials The parameter color selection can be automatically completed, and the operation is simple.
2. High reliability: Adopt high signal-to-noise ratio sensor and circuit system with superior anti-interference performance, multi-angle, all-round and three-dimensional to improve the stability and reliability of the whole machine
3. Intelligent image processing algorithms and shape selection: The color selection algorithms such as grayscale, color difference, and HSV are perfectly combined with shape selection algorithms such as size, shape, and texture to successfully solve a variety of color selection problems and maximize the sorting accuracy. Provide customers with more than 20 color selection schemes, and truly realize the function of multiple selections and multiple uses in one machine
4. High-quality solenoid valve: durable high-quality solenoid valve, long service life, extremely low air consumption, more than 1,000 operations per second, to ensure the removal of bad materials
5. Reliable LED light source configuration: advanced LED light source application technology, ultra-high brightness, long life, the background light can automatically change color 130 million colors, to meet the needs of different color selection
6. Simple and easy-to-use human operation interface: one-key intelligent parameter configuration, which minimizes the burden of customer operation and maintenance, and more than 20 color selection storage modes, which are convenient for quick switching of color selection tasks for different materials
Coffee Bean Sorting Machine | ||||||
Model |
6SXZ-68 |
6SXZ-136 |
6SXZ-204 |
6SXZ-272 |
6SXZ-340 |
6SXZ-476 |
Output(t/h) |
0.6-1 |
1.2-2 |
1.8-3.0 |
2.4-4.0 |
3.0-5.0 |
4.6-8.0 |
Sorting Accuracy(%) |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
Voltage (v/Hz) |
220V 50HZ |
220/50 |
220V 50HZ |
220V 50HZ |
220V 50HZ |
220V 50HZ |
Power Supply(Kw) |
0.6-0.8 |
0.9-1.2 |
1.2-1.6 |
4.2-4.6 |
5.3-6.2 |
7.5-8.7 |
Pressure(Mpa) |
0.4-0.6 |
0.5-0.7 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
Air Consumption(L/min) |
<500 |
<1000 |
<1500 |
<2000 |
<2500 |
<3500 |
Weight(Kg) |
260 |
440 |
820 |
1180 |
1620 |
2200 |
Dimension(mm) |
918*1518*1735 |
1259*1510*1753 |
1594*1532*2653 |
2010*1518*1700 |
3710*1530*2100 |
2348*1518*2250 |
