Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.
A bucket with a discharging system, no need to replace the hopper can be arranged flexibly. Scrap, finished all can check scheme.
Automatic fault protection and notification functions can stop the equipment and inform the operator of the danger before it is damaged, more effectively.
The sorting machine can be equipped with imported dedicated solenoid valves or self-made high frequency solenoid valves.
|
Model |
MKBCS640B |
MKBCS1280B |
MKBCS1600B |
|
Output（t/h） |
1.2-6 |
2.5-12 |
3.2-15 |
|
Carryover (bad: good) |
≥15：1 |
≥15：1 |
≥15：1 |
|
Accuracy (%) |
≥99 |
≥99 |
≥99 |
|
Voltage (V/Hz) |
220V/50HZ |
220V/50HZ |
220V/50HZ |
|
Power (Kw) |
1.0-1.3 |
1.6-2.6 |
2.0-3.3 |
|
Air pressure (Mpa) |
0.6-1.0 |
0.6-1.0 |
0.6-1.0 |
|
Consumption (L/min) |
＜1024 |
＜2048 |
＜2560 |
|
Weight (Kg) |
1000 |
1360 |
1900 |
|
Dimensions (mm) |
3108*993*1680 |
3108*1986*1680 |
3108*2306*1680 |
1 COLOR IMAGE ACQUISITION SYSTEM
Using high-definition color CCD camera image acquisition system, to achieve material (RGB) red, green and blue three color information acquiting, depth recognition tiny fine color sorter can choose other impurities.
2 CLOUD OBJECT LINK SYSTEM
Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.
3 IMAGE PROCESSING SYSTEM
Applying the intenational advanced full color scanning technology, DSP+FPGA processing technology, as well as complex algorithm of multiple modes combined with color and space, this system can provide the function of color& shape-based sorting depending on the difference of materials.
4 CHI MOVING MAGNETIC CONTROL HIGN FREQUENCY ELECTROMAGNETIC VALUE
Applying the intemational advanced 2048 full color scanning technology. DSP+FPGA processing technology, as well as complex algorithm of multiple modes combined with color and space, this system can provide the function of color& shape-based sorting depending on the difference of materials, and allow you to set muliple modes freely and select any material from tens of thousands of ones at your option.
5 OPERATING SYSTEM
With inteligent operating platform,the system can be mastered and operated easily,turming the inteligent communication between human and machine into reality and eliminating all your concems about operating.
6 INTELLIGENT WIND CURTAIN FUNCTION DESIGN
Through the fan blowing system,high-speed airftlow will in front of the lens glass dust,ethereal and rapid clearance,to ensure resolution and color sorting accuracy.
7 UNIQUE AIR-SUCTION AND VENTILATION SYSTEM
The utilization of the air-suction and ventilation system can help to clear away the floats in the material,ensuring a higher resolution of lens and a more accurate color-based sorting rate.

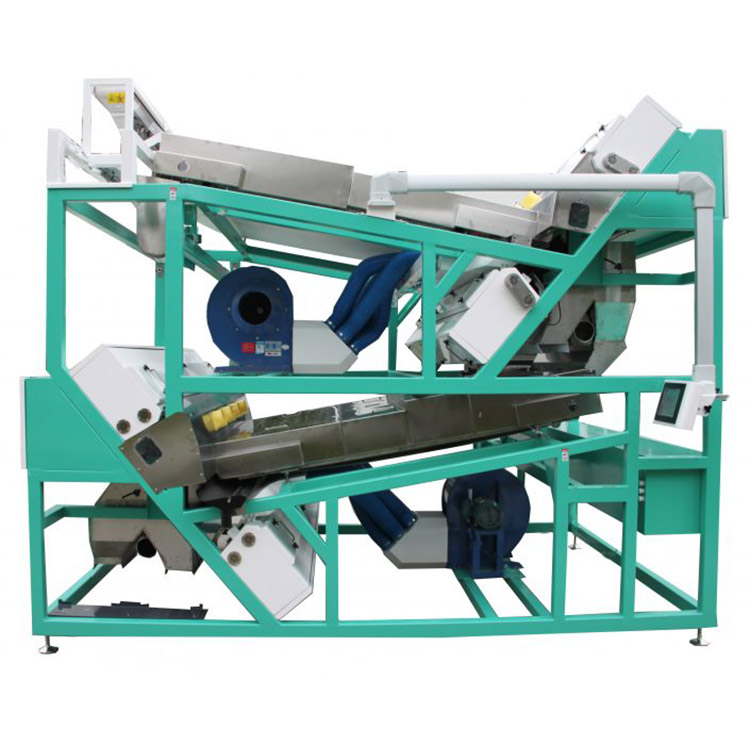

8 DOUBLE LAYER SEPARATION MODE
According to the different needs of customers can be set flexibly realize the sorting can lower again to check,no need to replace the function of the hopper.
9 POWELFUL COLOR SORTING FUNCTION
Belt-type color sorters can not only meet the color sorting range of chute color sorters,it can also provide satisfactory color soting alternatives for ethereal,iregular,easily broken,highly-moist materials,which can effectively solve the unsatisfactory color sorting effects due to small gravity speed caused by light weight of these special materials,the conveyance speed of bell-type color sorter can be up to 4m/s,which can effectively meet the requiements for color sorting and yield.
The crushing rate of easly broken materials can be minimized；easy color sorting solution can be avoilable for materials with high moisture；perfect color sorting solution can also be available for easily bonded mateials.
5088 full color line scan technology,algorithms combining colors and spaces can provide"color sorting+shape sorting"for different materials,a vaieties of modes can be set freely.
it is applicable to many materials.
Suitable for applications in food processing companies of nuts, seafood, fresh cut vegetables, dried fruits, dried fruits, fresh fruits, freeze-dried fruits and vegetables, etc.
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Delivery Time: 10-15 Days after order confirmed.
Payment Terms: TT, Letter of Credit
1. On Site Installation and Training Service by our professional engineer ;
2. Study and Learn the Machine Operation in Our Factory.
3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.
• With presence in a variety of countries, METKEY is strongly committed to being close to the customer.
• Through cooperation with loyal and carefully evaluated and trained local employees and partners, METKEY managed to provide fast, competent and rooted services in the context of customers.
• Application center in Hefei production base offer demo machines for tests and comparison.
• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
• Under normal working circumstances, METKEY machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.
• Service line is available for emergency support.
• METKEY products will be serviced and supported wherever customers are located.
• Through the global METKEY network and from METKEY technical experts, training on METKEY machines is available worldwide.
