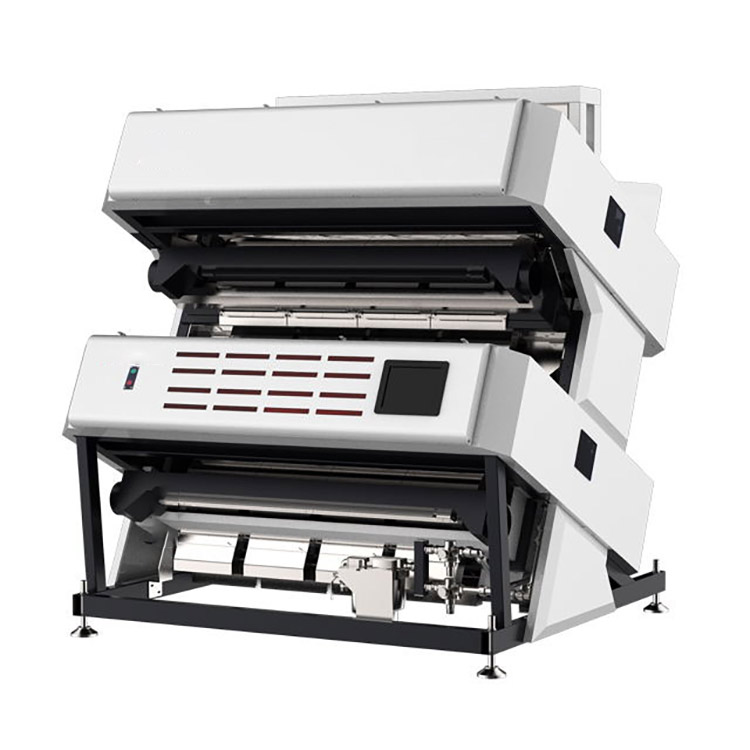

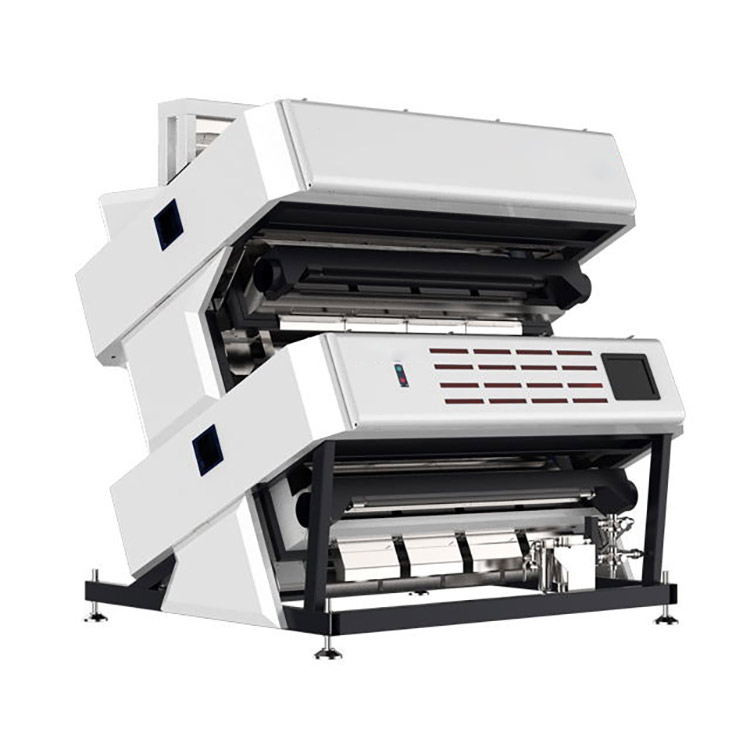

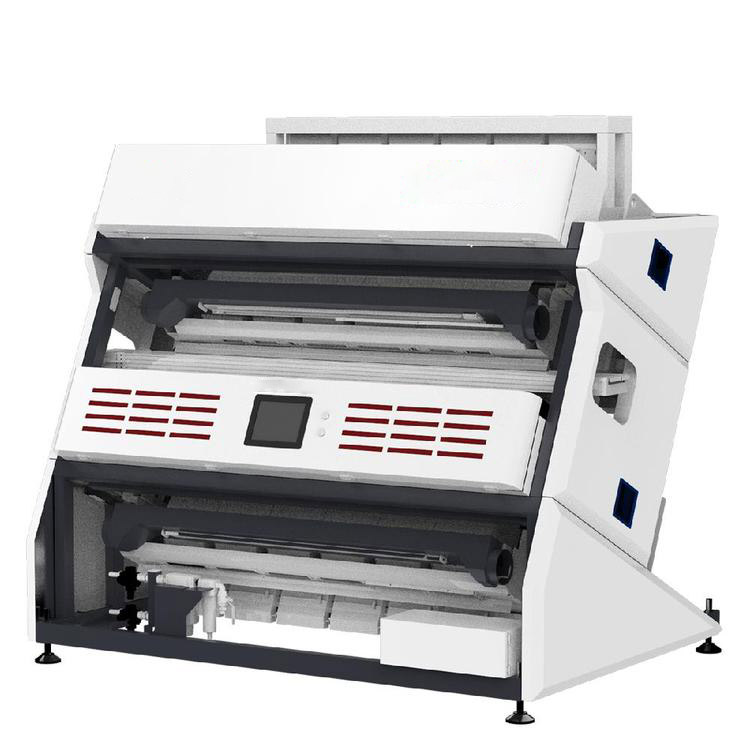

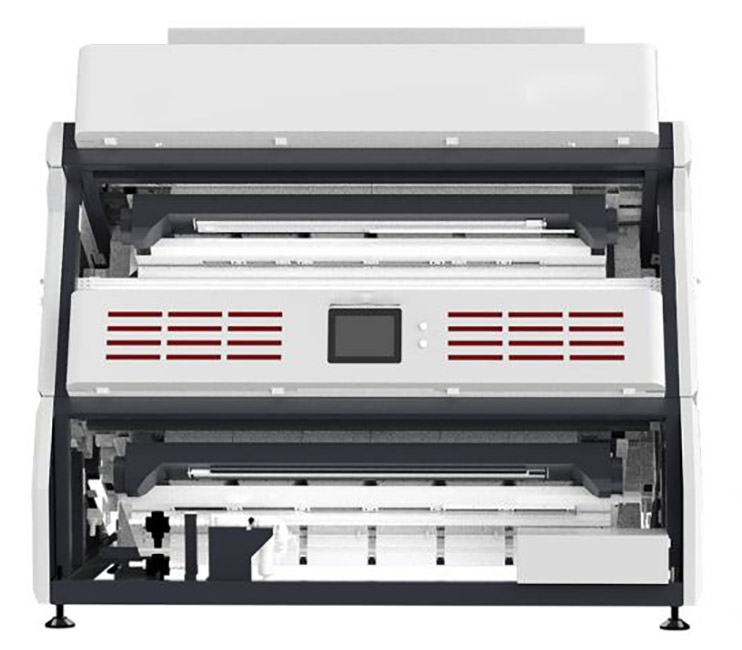

QS Model is suitable for sorting raw quartz powder, completely replace the artificial selection.The vertical chute solves the problems of ore and belt bonding during the fine ore sorting process with a wide range of fine ore particles size ranging from 26 mesh to 120 mesh.
Model |
Production capacity(T/H) |
Sorting Accuracy |
Air pressure(Mpa) |
Power(Kw) |
Weight(Kg) |
Dimension(mm) |
QS3008-1Z |
26-40Mesh:5-10 |
≥99.9999% |
0.6-0.8 |
6.3 |
2600 |
3890*1730*1760 |
40-70Mesh:4-8 |
||||||
70-120Mesh:2-4 |
||||||
QS2256-1Z |
26-40Mesh:4-8 |
≥99.9999% |
0.6-0.8 |
4.7 |
2100 |
3110*1857*1772 |
40-70Mesh:3-6 |
||||||
70-120Mesh:1.5-3 |
||||||
QS1504-1Z |
26-40Mesh:3-5 |
≥99.9999% |
0.6-0.8 |
3.25 |
1600 |
2330*1885*1759 |
40-70Mesh:2-4 |
||||||
70-120Mesh:1-2 |
||||||
QS1504-2Z |
26-40Mesh:3-5 |
≥99.9999% |
0.6-0.8 |
6.1 |
2400 |
2330*2250*2609 |
40-70Mesh:2-4 |
||||||
70-120Mesh:1-2 |
||||||
QS1680-2Z |
26-40Mesh:3.5-5.5 |
≥99.9999% |
0.6-0.8 |
7 |
2350 |
2814*2029*2609 |
40-70Mesh:2.5-4.5 |
||||||
70-120Mesh:1.5-2.5 |
||||||
QS2240-2Z |
26-40Mesh:4-7 |
≥99.9999% |
0.6-0.8 |
8 |
3150 |
3253*2029*2609 |
40-70Mesh:3-5.5 |
||||||
70-120Mesh:2-3 |
