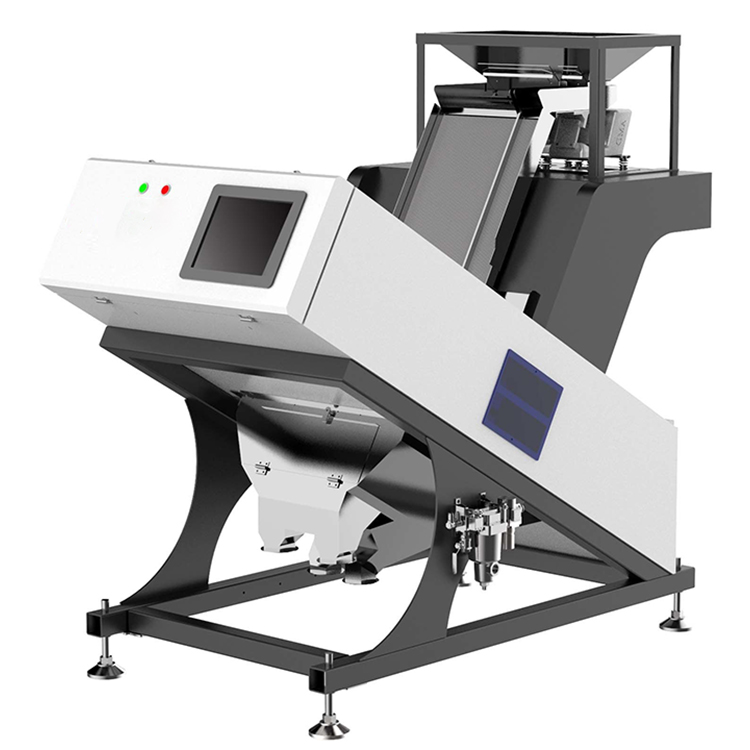

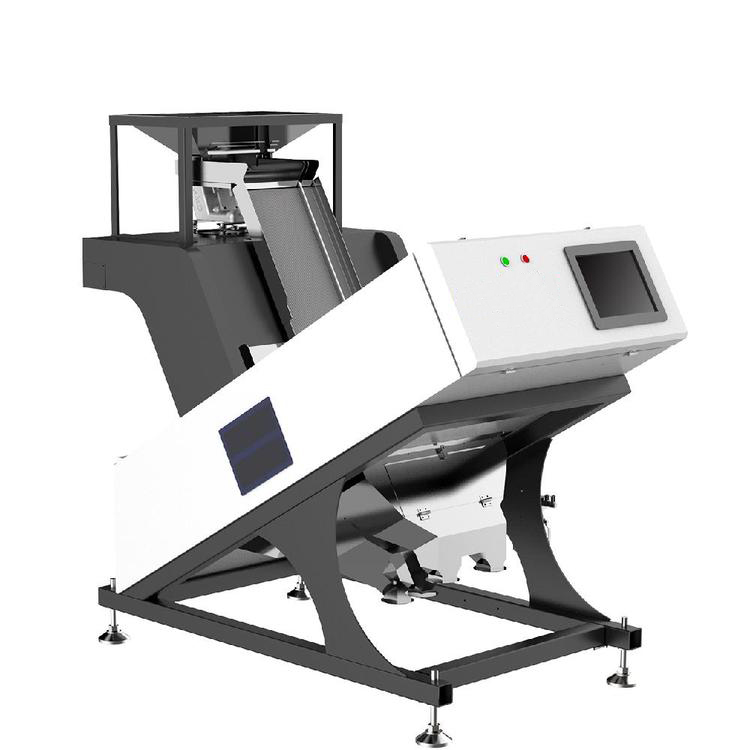

The Mini RGB Color Sorter is an automatic,cost effective,full color RGB,portable optical sorting machine for small and medium commercial applications,pre-production lots and laboratory use.

The Mini RGB Color Sorter sort your material to highest purification levels, removing all impurities and giving you shelf quality food. These remarkable machines are low on power and maintenance starting with the ability to sort up to 1.5t/hr . Super HD quality Toshiba brand cameras allows the machine to run at high speed and still manage to remove subtle colour differences. With the new intelligent magnetic control high-frequency ejector technology gives the machine the ability to process product fast and extremely efficiently. This ejector technology boasts an impressive eleven billion ejection lifespan. These machines allow farmers and processing plants to achieve the perfect quality required.

Additionally,the small color sorter machine is offering an added benefit of minimal operator training by utilizing an intuitive full color user interface touch screen and the ability to automatically set sorting parameters.

Mini RGB Color Sorter Core Technology

1. Camera:

Leading in the industry International well-known brand customized lens Import high-end 5400Pixel CCD Image Acquisition System High-speed scanning of product.

2. High-frequency Solenoid Valve:

High-quality high-frequency solenoid valve, with consistency of near zero error. Service life more than 11 billion times. Ultra high precision, leading in China

3. Intelligent Image Processing Algorithm

The combination of colors and shapes with intelligent algorithms . Precise professional sorting solutions

4. Customized Lighting System:

Import purchasing Advanced LED optical design system. Various light sources are available to suit different materials. Designated procurement of imported LED lamps, Higher stability, longer service life. LED lighting system with thermal dissipation.

5. Data Transmission System:

The interface:High anti-jamming, high transmission speed, high stability

6. Chip:

Innovative ultra high-speed processing realizing the stability ,reliability and high-speed mass data processing.

7. Feed Trough:

Application of high-quality ultra wide trough. Special anodization treatment process ensures the required production in line with the international first-class level. Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.

8. Human-Computer Interface:

Simple and easy to operate. More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.

The above mentioned capacity depends on the product contamination below 5%, the capacity will vary due to material and contamination changes.

Mini RGB Color Sorter Technical Parameter

Performance t/h	100kg-1.5t
Width of the Chute	300 mm
Number of channels	64
Number of Cameras	2
Camera Brand	Phoenix
Camera Resolution	5400 pixels
Optical Resolution	5400 pixels
Width of nozzles	4 mm
Air pressure	0.6-0.8 Mpa
Air consumption	<1200
Length	873
Width	1615 mm
Height	1530 mm
Weight	380 kg

Mini RGB Color Sorter Features

1,Advanced image acquisition system

The color sorter machine use the high resolution monochromatic camera or RGB
camera with high quality industrial lens to achieve clear and accurate image acquisition .The
camera could capture the micro defects of material instantly.

2,High reliability

The optical sorters use high signal-to-noise ratio sensor and anti-interference circuit
system,which could highly improve stability and reliability.

3,Intelligent image processing algorithm

Color sorting algorithms of gray level,color difference and HSV are perfectly combined with
shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series
of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.

4,Unique chutes processing technology

The special anodizing and hardening technology can greatly improve the channel smoothness
and ware resistance to guarantee high production.

5,High quality solenoid valve(ejector)

The color sorters are equipped with high quality solenoid valve.The valve has longer
lifespan ,high frequency ,and low air consumption.The working frequency is 1000 times per
second,which guarantees the accurate and perfect ejecting.For the different sizes and
characteristics of material particle, The optical sorters use the solenoid valve of
different sizes.


6,High efficiency and reliable light source

Advanced LED lighting technology with advantages of super high intensity,long lifetime and
perfect performance.

7,Simple operation, easy to learn and use

Simple optical system design, precise automatic correction system, combined with the
well-designed human-machine interface to simplify the complexity of machine commissioning
and use, ensuring the simple operation and the machine is easy to learn and use.

Material Sorting With METKEY Mini RGB Color Sorter

METKEY Mini RGB Color Sorter is suitable for sorting vegetable seeds,coffee beans,beans,sesame seeds,rice,grain and corn seed.The machine could reject subtle color difference,dis coloured product,foreign material,spot defects.
