1,Dual side RGB camera+Single side infrared camera with single band: RCI(oat ,sunflower seeds)

2,Dual side RGB camera+Single side infrared camera with dual band:

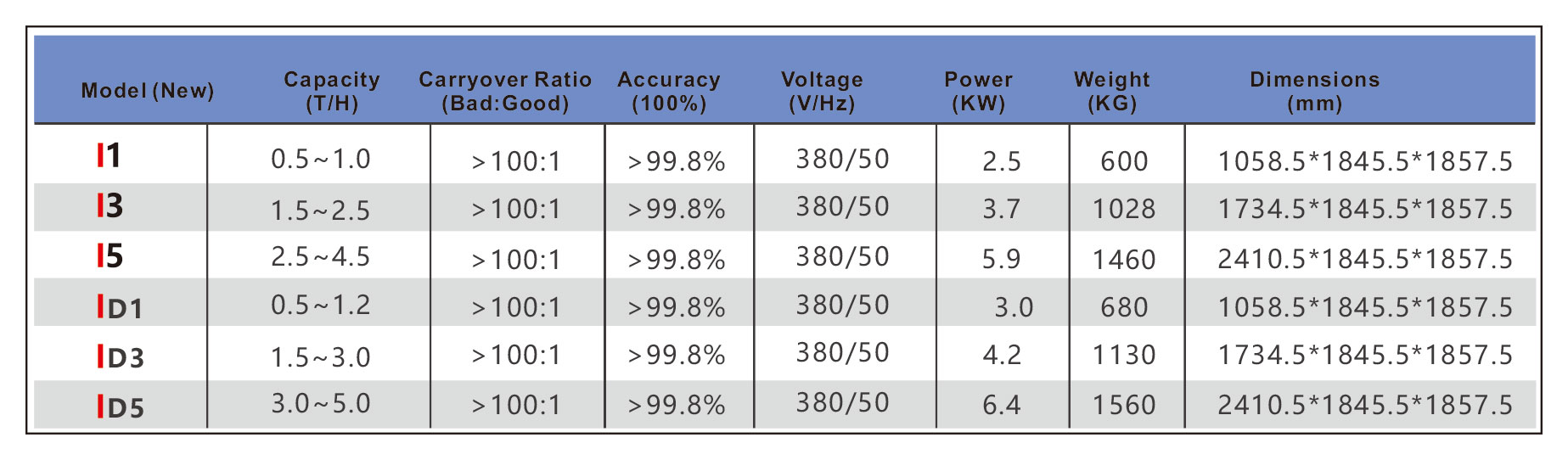

I series ,chute type(almond,walnuts,peach kernel)；

BSI series,belt type (pecans, walnuts,peach kernel)

3,,Dual side RGB camera+dual side infrared camera with dual band:

I series ,chute type(almond,walnuts,peach kernel)；

BSI series,belt type (pecans, walnuts,peach kernel)

Sorting material

The materials selected by infrared are mainly aimed at the same-color foreign objects that are difficult to be identified by visible light.

Among them, single band infrared is currently mainly aimed at materials: shell selection of pumpkin seeds and gourd seeds; selection of shells in oats; selection of rods from peanuts;

At present, dual band infrared is mainly aimed at the separation of the shell and kernel of most nuts, such as peach kernel, almond, almond, walnut, pecan, etc.;

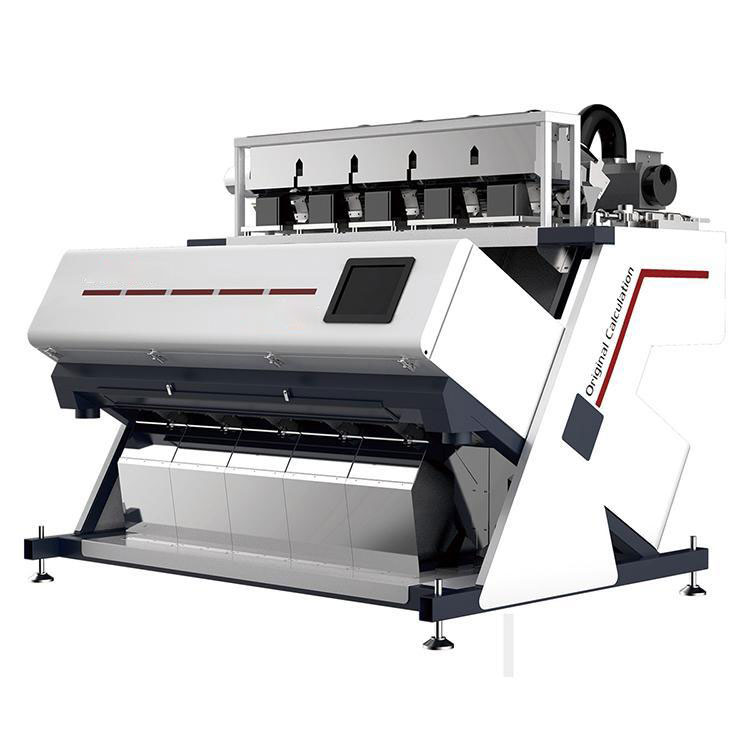

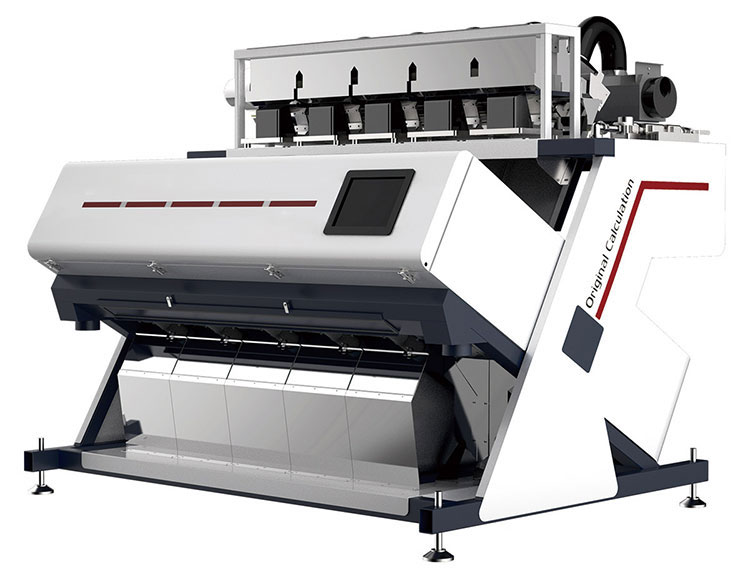

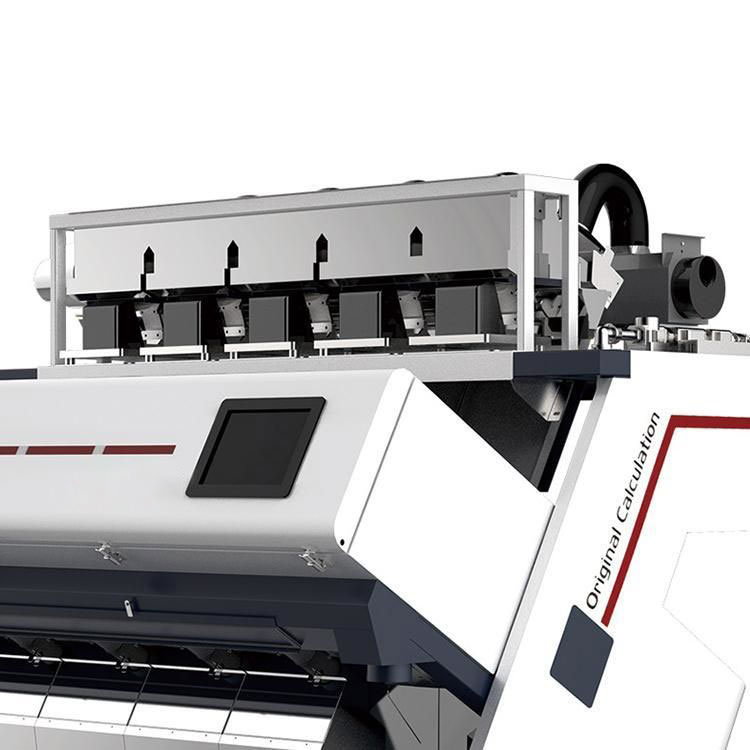

Infrared Optical Sorting Machine Features

Using full-spectrum technology, flexible and rich multi-spectral infrared technology solutions, which are used in kernel shell separation, evil impurities sorting, etc., with extremely high purification rate and extremely low loss

The industry's unique low-temperature refrigeration indium gallium arsenide infrared multispectral camera, combined with the leading prism spectroscopic technology, has the characteristics of high sensitivity, high integration, high precision and high stability

Industrial-grade halogen lamp heat dissipation technology, stable and reliable, can greatly extend the life of halogen lamps, without heat dissipation consumables

Unique halogen lamp structure design, easy to replace the halogen lamp

Ultra-high-speed injection valve system, accurate and flexible rejection, with the "soft landing" system to minimize damage
