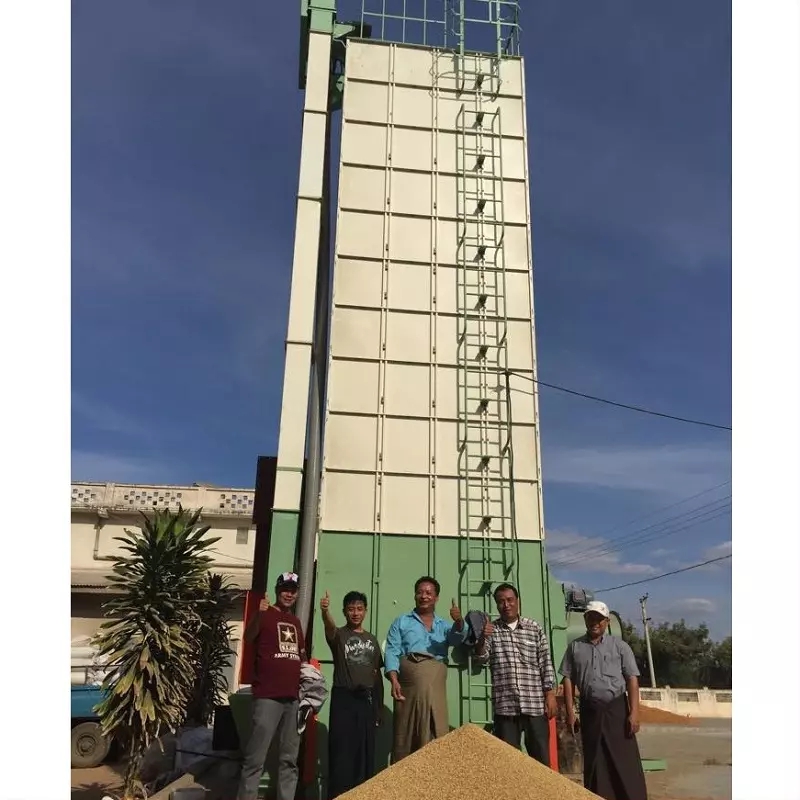

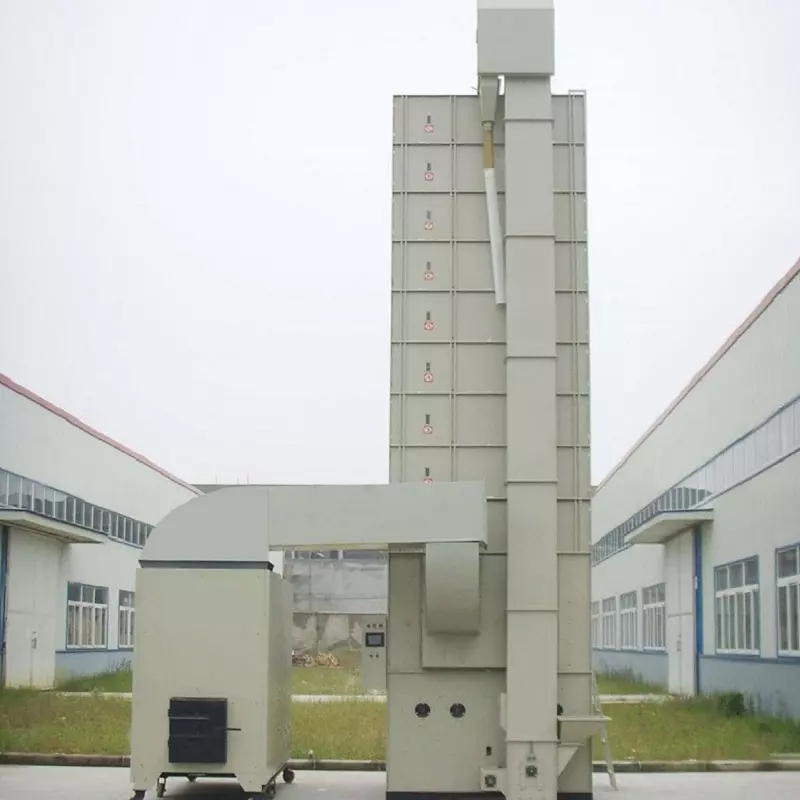

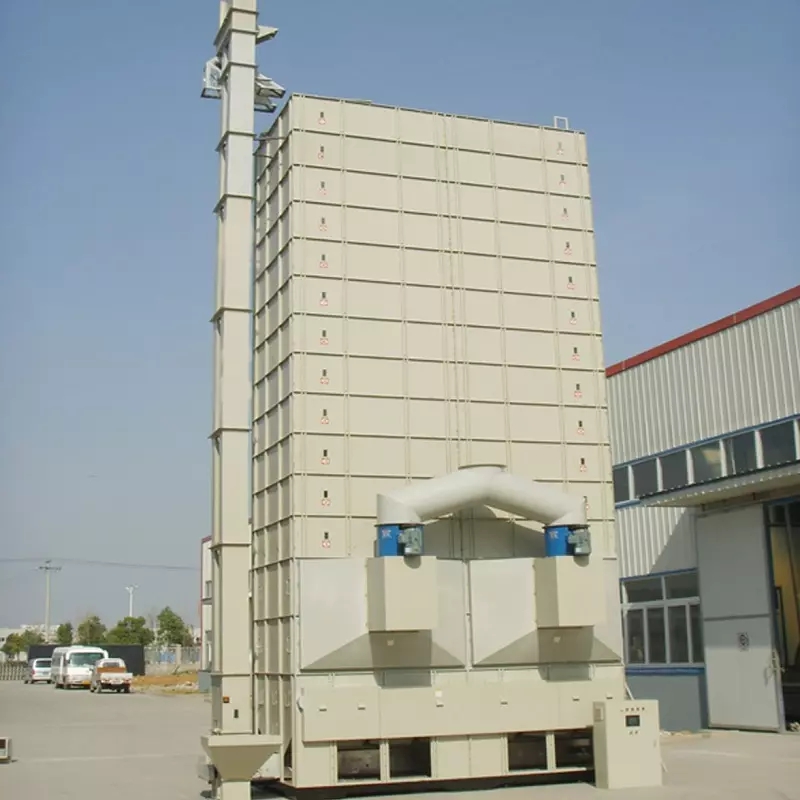

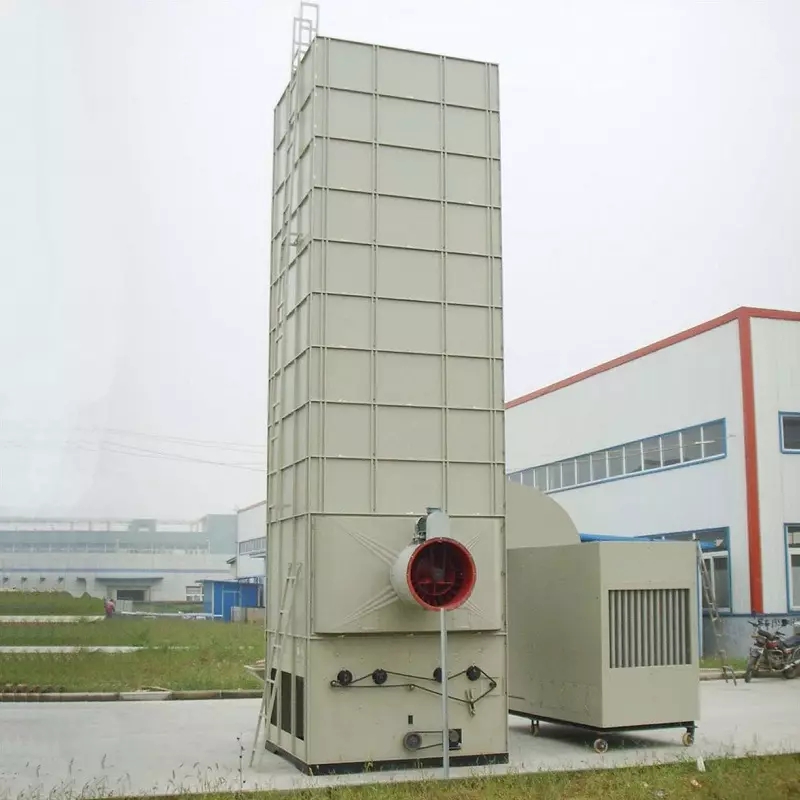

The 5HXG Series Tower Type Grain Dryer can be used in drying paddy, wheat, barley, oil seeds, maize, soya bean and pea, etc. And it is also workable for drying rice seeds. In addition, the combustion furnace can provide clean hot air for heating sunlight glasshouses, plant greenhouses and various kinds of buildings.
1.Hot blast stove supplies heat, indirect heating grain;
2. Low temperature balanced drying can reduce the grain broken rate,improve the head rice yield;
3. Different kind of furnace/burner for your choice.

Paddy Drying Equipment Grain Dryer Characteristics:

1. Dry area is large, good drying medium penetrability, good uniform moisture of dried product, high efficiency.

2. Hot blast stove supplies heat, indirect heating grain. During dry process, grain continuous cycling, grain each other, removing the awn, fuzz, etc. of grain surface, and the duster remove these above out of machine, improving the dried grain clearness.

3. Low temperature balanced drying can reduce the grain crack ratio, improve the head rice yield, so as to enhance the quality of rice.

4.Control system adopts the man-machine interface display dryer running status, the operation is simple, automatic display faults be clear at a glance, easy to quickly find out and eliminate faults, safe and practical.

5. The dryer without dead angle for residual grain, even easy cleaning, preventing mixing different kinds of grain.

6. The KETT resistance type online moisture detector. Automatic determination of moisture, and control the speed of removing moisture of grain. It is a high precision sensor and control equipment, when moisture reaches set point, I will let equipment automatic stop.

7. Drive bearings all be designed for low speed, three layer dust protection, dust can’t enter to internal when the bearing on operating.

8. We use mixed flow fans instead of centrifugal fans and axial flow fans, the largest air volume will reach 17500 cubic meters/hour after warm air through fans, total pressure is 950 pa, effectively improve the drying effect and low noise.

9. The blades of screw conveyor use 45 manganese steel, Surface Hardness is HRC50

10. Using belt conveyor instead of screw conveyors on the top and bottom, greatly reducing crashed rate.

11. We also have biomass burner, which can take the husk, straw, wood, peanut stalk, corn cob (stalk) and other waste biomass as fuel. If you don't want to use oil burner, you can choose the biomass burner.

Optional burners for the grain dryer:

Italy brand gas burner features

1. The burner can adapt to the pressure fluctuation and adjust air distribution one automatically within sufficient combustion and high thermal efficiency.

2. When the burner start to work, it's small fire, when it burning normal and stable, the automatic control system will open the main gas valve, then the fuel begin to burn properly, this is to avoid denigration phenomenon.

3. The burner can adopt various kinds of gas with replacing few components.

Double phase proportional combustion control, the temperature can be controlled in ±2ºC.

Japan brand oil burner features

1. Automatic control system ensures automatic ignition and running detection.

2. Multiple safety devices to ensure the safety of operation.

3. Double phase proportional combustion control, the temperature can be controlled n ±2ºC.

Biomass furnace features:

1. Indirect heating, the clean hot air won't contaminate grain with new heat exchange technology, the exchange rate could be 80%.

2. The flue could be paddy husk, fire wood, straw, and coal. Drying expense is low.

3. Equipped with automatic husk feeder, reduce manual operation.

4. The furnace can supply heat for 1 to 4 sets of 15t dryer, easy operation.

5. 3 models of biomass furnace, the heat capacity is 300,000 kcal/hr, 450,000kcal/hr, 600,000 kcal/hr.

Steam boiler features:

1. Indirect heating, the clean hot air won't contaminate grain. The exchange rate of steam heat ex changer can reach 70%.

2. The fuel could be paddy husk, fire wood, straw, and coal. Drying expense is low.

3. The furnace can supply heat for 1 to 20 sets of 15t dryer, easy operation.

Model		5HXG-10.0 Grain Dryer(10T/Batch)	5HXG-15 Grain Dryer (15T/Batch)	5HXG-30 Grain Dryer (30T/Batch)
Grain Type and Capacity	Paddy(kg)	1010-10000	1010-15000	1010-30000
	Wheat(kg)	1010-13000	1230-18000	1230-33000
Exhaust Fan	Type	4-72-6A	STG-6C	STG-6C
	Mode	Centrifugal fan	Mixed flow fan	Mixed flow fan
	Air outlet diameter(mm)	600	600	600
	Rotate speed(r/min)	1450	1850	1850
	Air volume(m³/h)	16500	17500	17500
	Total pressure(pa)	1000	950	950
Burner	Type	Gun type high pressure spray, Automatic temperature control
	Method of ignition	High pressure automatic ignition, Manual ignition
	Fuel	Kerosene or 0 diesel	Straw	Anthracite
	Burning capacity(kg/h)	3.0-14L/h	50	18
Power(kw)		5.6	7.2	20.24
Overall Dimension(mm)		2400*3400*7500	2400*3400*10500	5140*4640*11360
Performance	Feed time(min)	40-45	40-45	60-65
	Discharge time(min)	50-55	60-65	65-70
	Percent of moisture removed(%/h)	0.6-1.0	0.6-1.0	0.6-1.0
Safety Device		Full quantity alarm; overload protection device; temperature sensor; control fuse; pressure sensor combustion engine flame out alarm
