Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.

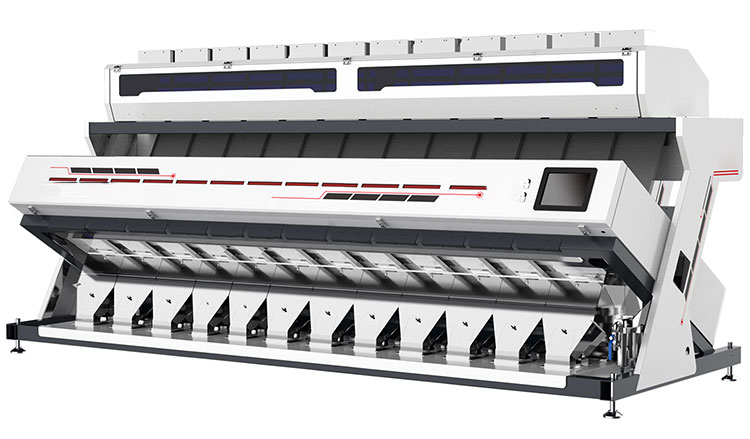

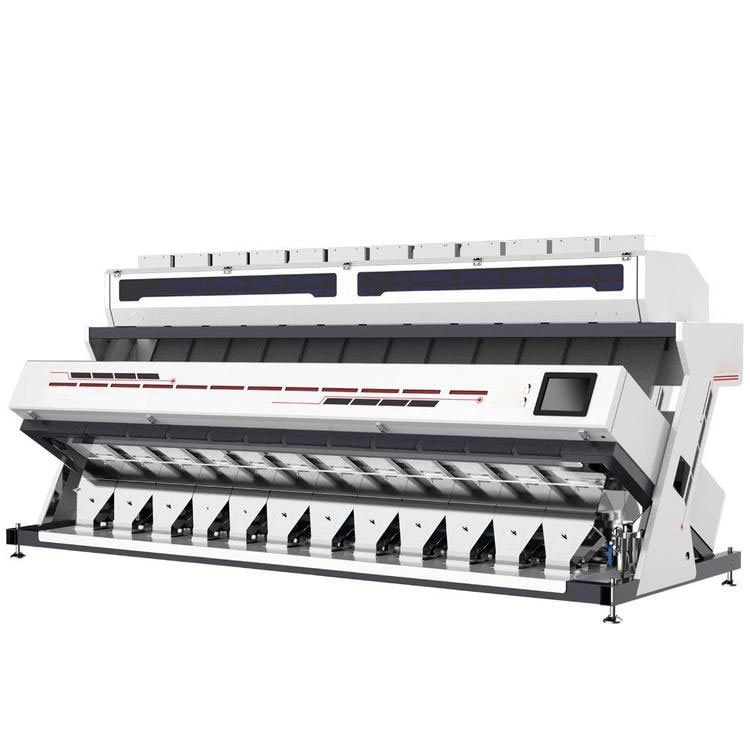

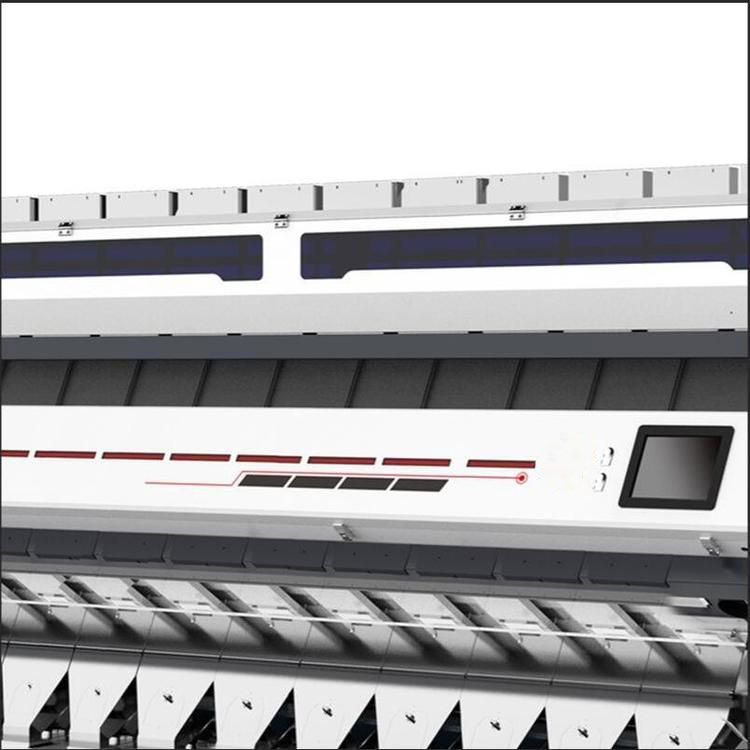

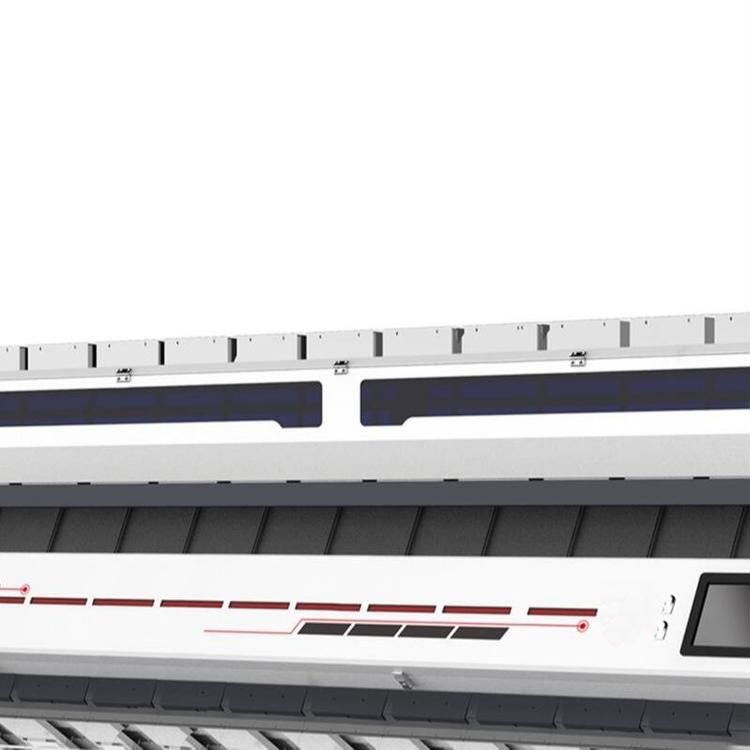

RGI with RGB cameras and infrared cameras
Designed and built in the China, RGI is a revolution in rice sorting, delivering the highest capacity and export quality standards with ease and pinpoint accuracy.
Excellent results are achieved in improving food safety, by removing foreign material such as stones, glass, plastic and other unwanted material.

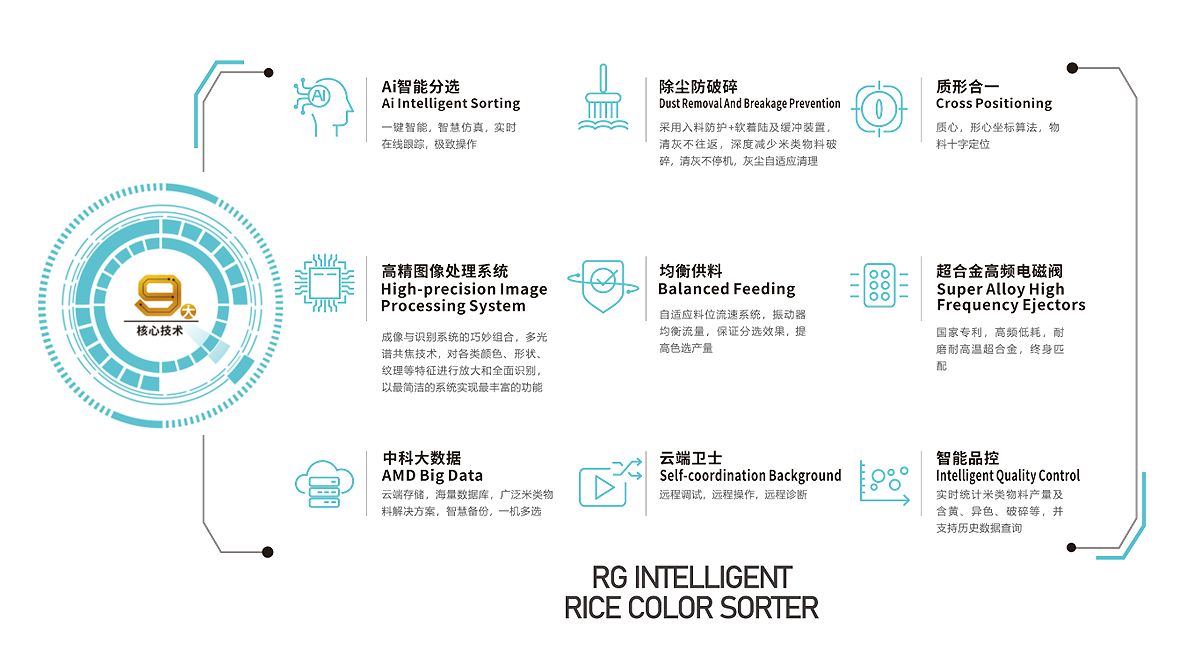

Intelligent system design for optimal integration of software and hardware
Real-time automatic image capture for accurate and uniform color sorting and grading.
Real-time self-check with self-protection and stable operation.

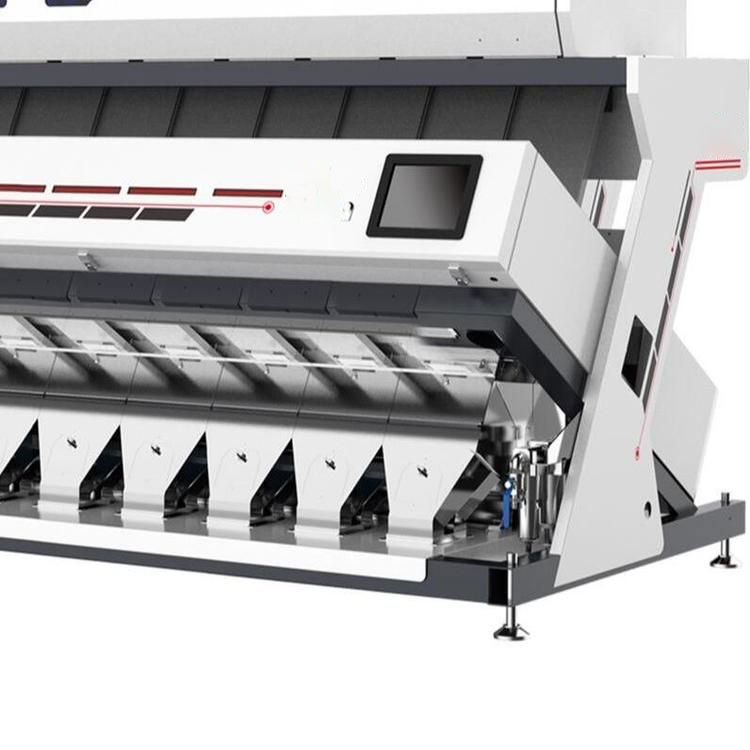

The touch screen interface makes the machine operation user-friendly
Higher Chip computing, storage capacity, and optimized power consumption.
High-quality image database for in-depth sorting and grading solutions.
Design and technology ahead of time.
|
Model |
RGI3 |
RGI4 |
RGI5 |
RGI6 |
RGI7 |
RGI8 |
RGI10 |
|
Channels |
192 |
256 |
320 |
384 |
448 |
512 |
640 |
|
Capacity(t/h) |
2.0-6.0 |
3.0-8.0 |
3.0-10 |
4.0-12.0 |
5.0-17.0 |
7.0-20.0 |
9.0-28 |
|
Power(kw) |
1.8 |
2.2 |
2.6 |
3 |
3.5 |
4 |
5 |
|
Voltage(V) |
110-250V/50-60Hz |
110-250V/50-60Hz |
110-250V/50-60Hz |
110-250V/50-60Hz |
110-250V/50-60Hz |
110-250V/50-60Hz |
110-250V/50-60Hz |
|
Sorting accuracy |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
99.99% |
|
Rejection rate(bad:good) |
≧100:1 |
≧100:1 |
≧100:1 |
≧100:1 |
≧100:1 |
≧100:1 |
≧100:1 |
|
Dimension(mm) |
1554*1707*1827.9 |
1869*1707*1827.9 |
2184*1707*1827.9 |
2499*1707*1827.9 |
2814*1707*1827.9 |
3129*1707*1827.9 |
3759*1707*1827.9 |
|
Air consumption(L/M) |
800-1600 |
1000-1800 |
1300-2200 |
1500-3000 |
1800-3600 |
2400-4500 |
2700-5000 |
|
Weight(kg) |
800 |
1000 |
1100 |
1350 |
1500 |
1700 |
1900 |
|
Warranty |
one year |
one year |
one year |
one year |
one year |
one year |
one year |
