Wuxi Tuanjiuhe Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production and sale of intelligent color sorters.

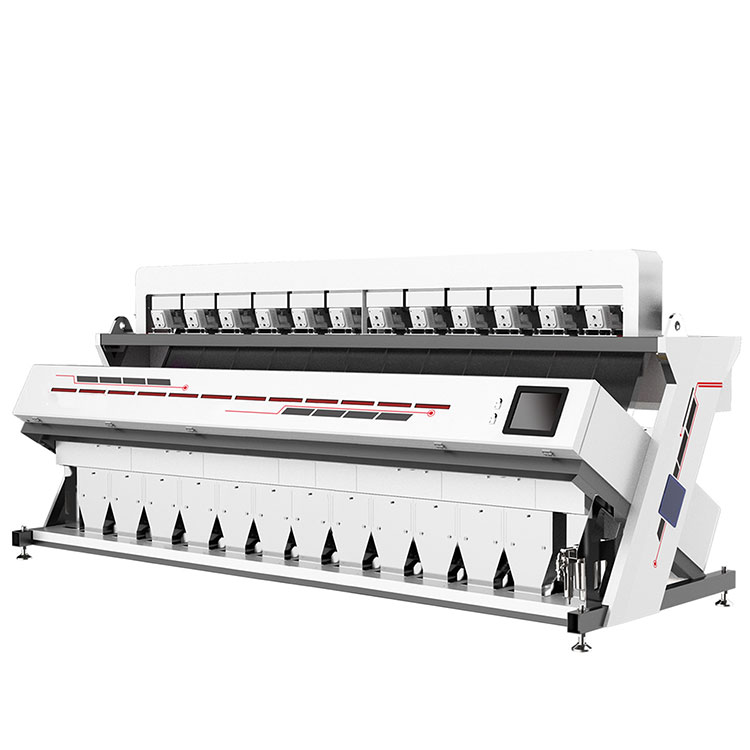

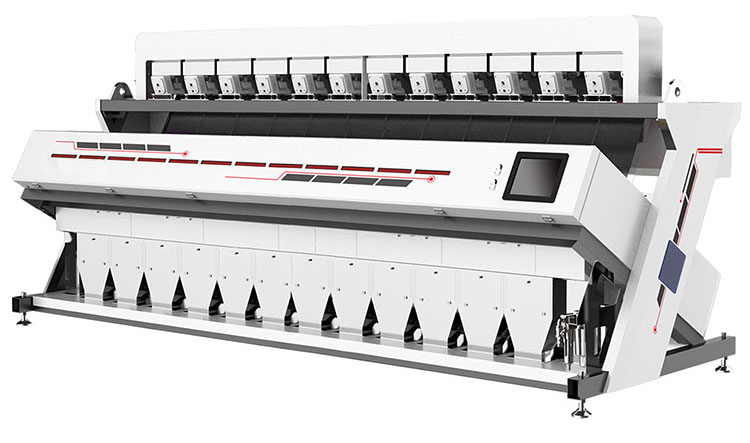

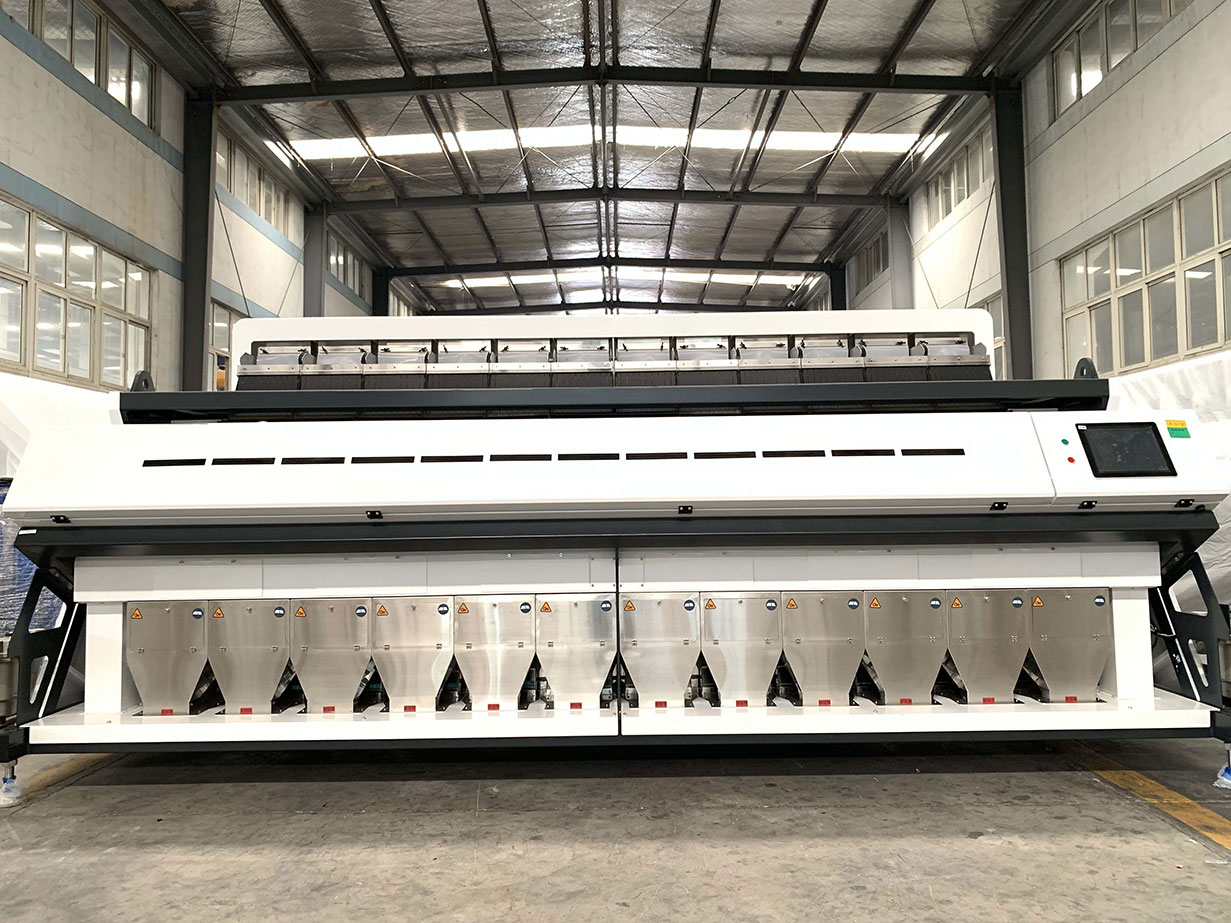

METKEY CCD Peanut Color Sorter is designed in accordance with most exacting standards of food hygiene and excel in the most difficult of food sorting applications where the strictest levels of food quality and safety are demanded.
METKEY CCD Peanut Color Sorter is able to sort white peanuts ,red peanuts ,peeled peanuts and peanut in shell,raw,balanced and roasted peanuts.
The optical sorting of bud has always been a problem that the industry needs to overcome, especially the bud below 3mm. The traditional color sorter has a certain recognition ability to recognize more than 3mm and colored long buds, but it is almost not selected for short buds of the same color below 3mm. METKEY pioneered the intelligent quality selection technology of bud, high-dimensional image acquisition and fusion positioning analysis, combined with the cloud brain integrated algorithm, to accurately select all kinds of same color and different color bud heads.
The CCD Peanut Color Sorter can detect and remove visible defects such as stones,grass,nut grass,stalks,stems,raisins,shells,
discoloration,soy,bones,wood,corn,glass,and in shell as well as invisible to the human eye defects such as aflatoxin.
Bionic four-color recognition technology, intelligently identify moldy, yellow rust, gray rust, insect erosion, frozen, diseased and other bad products; intelligent shape selection recognition technology, easy to classify the same diameter oval, length, size , Thickness, fat and thin peanuts of different shapes.
High-dimensional three-dimensional material fingerprint fingerprint sensing technology, high-dimensional holographic collection and analysis of the characteristic fingerprint information of the selected material, ultra-precise removal of glass, plastic, stone, soil, straw, animal feces, shells, slag and other malignant impurities, comprehensive protection of finished products quality.
|
Model |
Output(T/H) |
Carryover |
Power(KW) |
Voltage |
Weight(kg) |
Dimension(mm) |
|
MPS1 |
0.5-3 |
>10:1 |
0.3-0.5 |
220V/50HZ |
240 |
975*1550*1400 |
|
MPS2 |
1-6 |
>10:1 |
0.4-0.65 |
220V/50HZ |
500 |
1240*1705*1828 |
|
MPS3 |
1.5-9 |
>10:1 |
0.7-1.1 |
220V/50HZ |
800 |
1555*1707*1828 |
|
MPS4 |
2-12 |
>10:1 |
0.7-1.1 |
220V/50HZ |
1000 |
1869*1707*1828 |
|
MPS5 |
2.5-15 |
>10:1 |
0.7-1.1 |
220V/50HZ |
1100 |
2184*1707*1828 |
|
MPS6 |
3-18 |
>10:1 |
1.1-1.9 |
220V/50HZ |
1350 |
2500*1707*1828 |
|
MPS7 |
3.5-21 |
>10:1 |
1.1-1.9 |
220V/50HZ |
1350 |
2814*1707*1828 |
|
MPS8 |
2.5-15 |
>10:1 |
1.3-2.2 |
220V/50HZ |
1500 |
3129*1707*1828 |
|
MPS10 |
5-30 |
>10:1 |
1.4-2.3 |
220V/50HZ |
1750 |
3759*1710*1828 |
|
MPS12 |
4-25 |
>10:1 |
1.4-2.3 |
220V/50HZ |
1900 |
4389*1710*1828 |
1,Increased yield
2,Reduced labor requirements
3,Increased throughput
4,Consistent quality
Our peanut sorting solutions boost throughput and availability while at the same time increasing yield,quality and food safety
