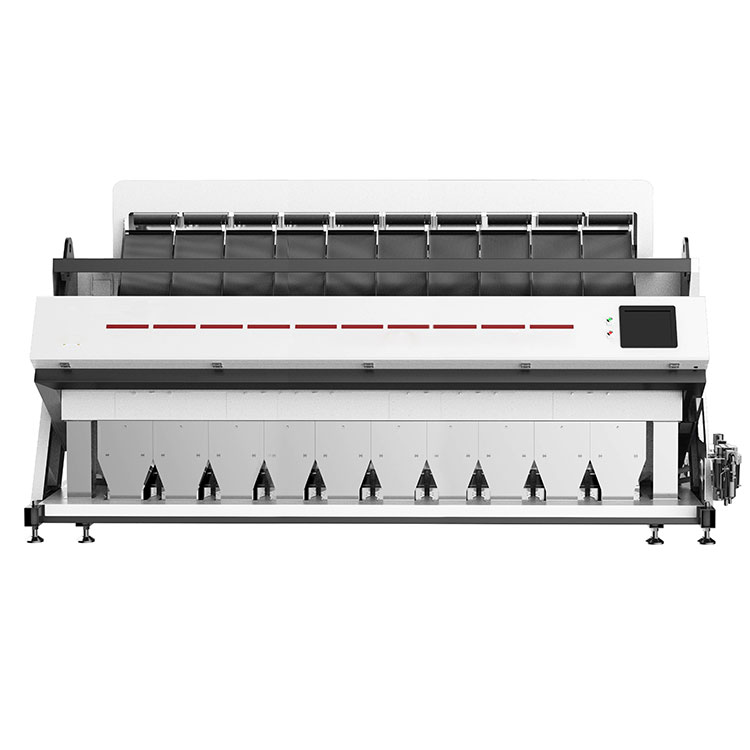

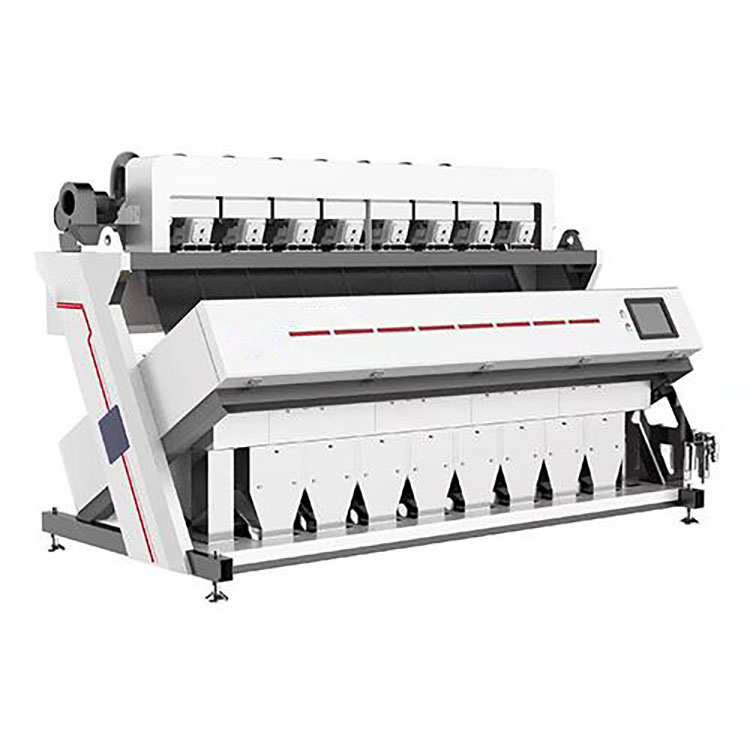

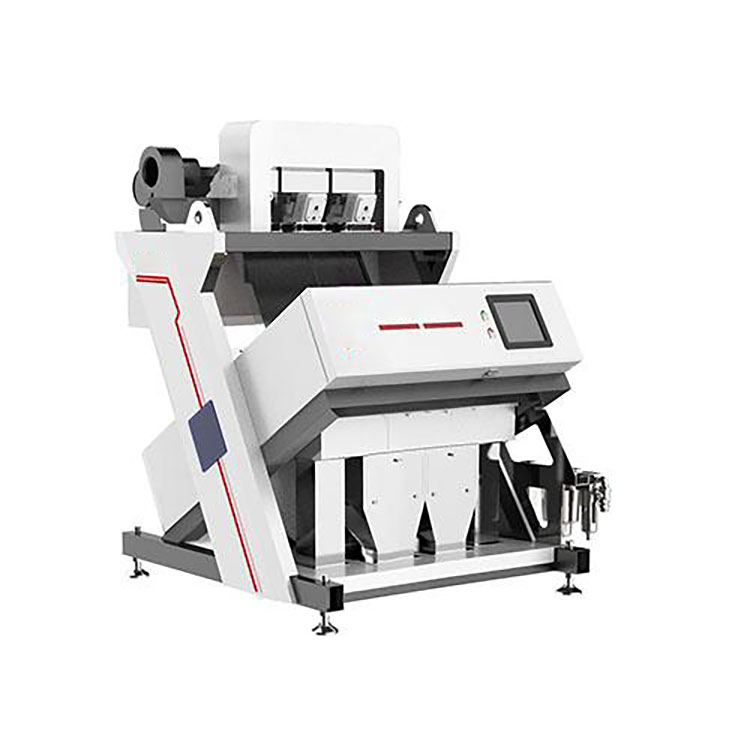

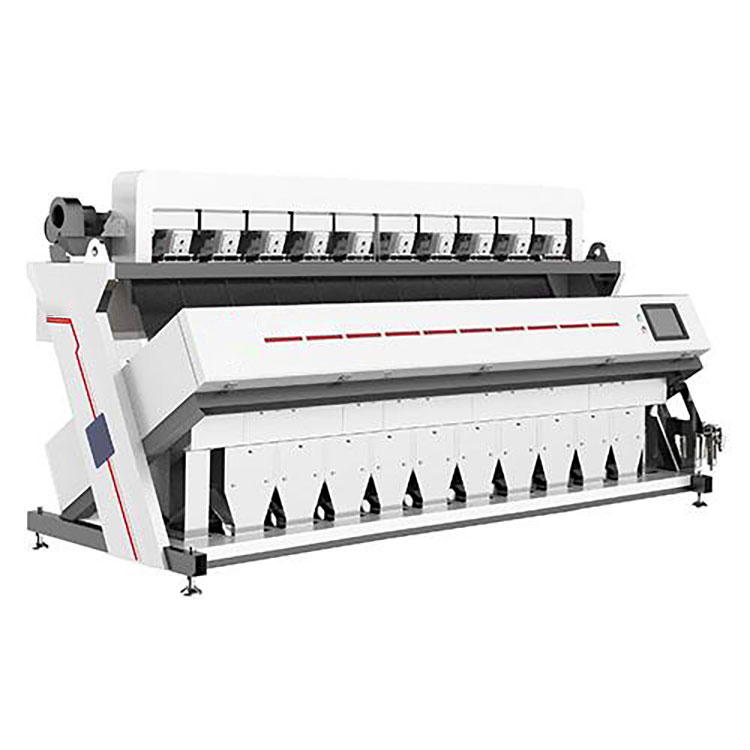

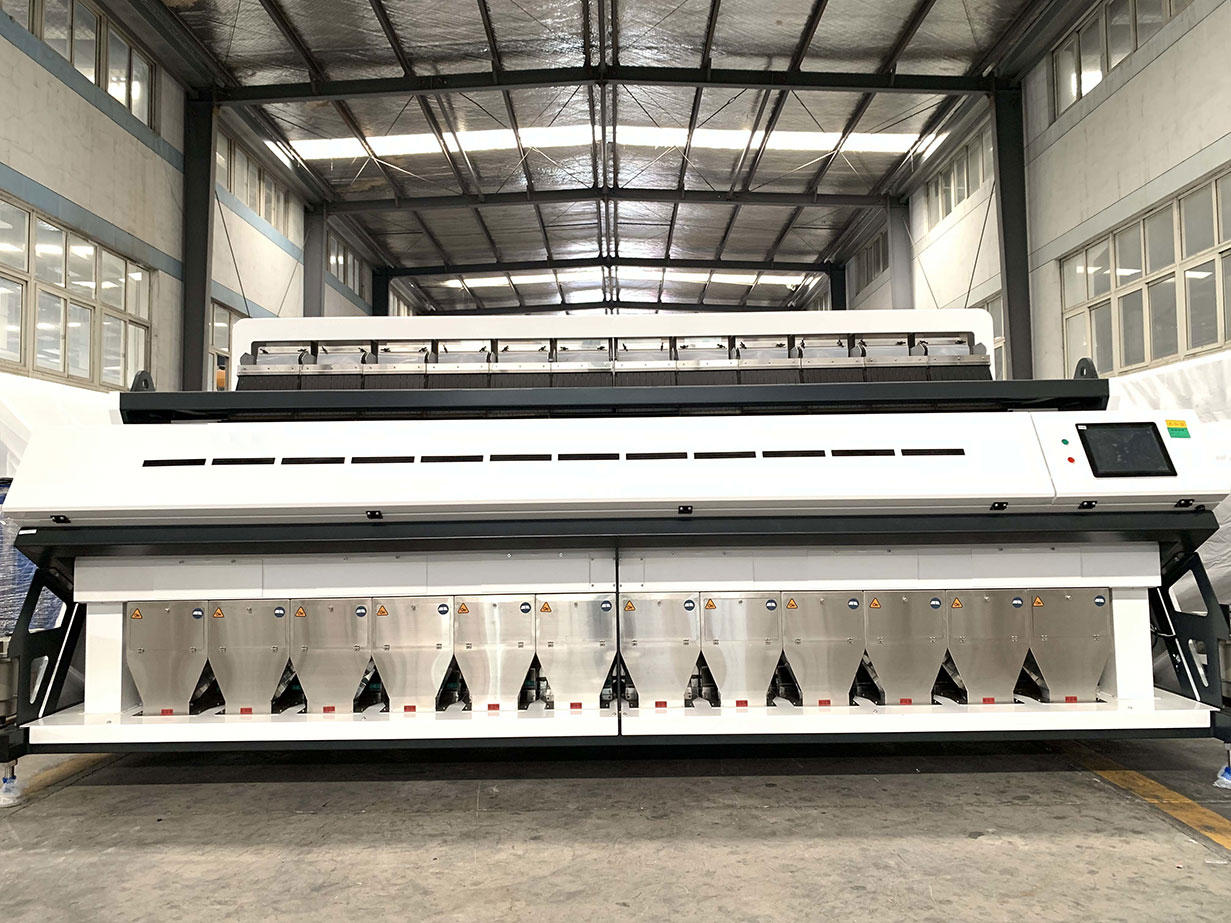

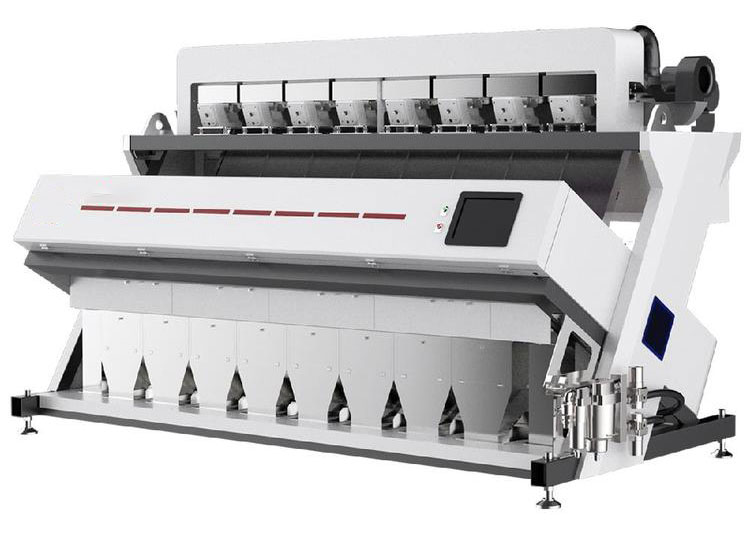

Seeds Color Sorter is suitable for both small and large -scale processing of field seeds and offer precision sorting to maximised yields and profits.

Equipped with latest technological advances,optical sorters range is able to effectively remove both typical and challenging defects such as black tips,spots,discoloration,rotten pieces,dark,diseased kernel,split seeds,unwanted foreign grains,sticks and stones.

For seeds,the machine sorts the dark and diseased kernel,which could lowers the content of Aflatoxin and Fumonnisin

Color Sorter Machine for pumpkin seeds

Sophisticated optical sorting technologies for pulses, spices and seeds.

Leading in optimized pulses,spices and sesame seed color sorting.METKEY delivers yield,performance and efficiency superiority .

The optical sorters offer solutions for all variety of pulses including peas,lentils,beans,seed spices,peas ,natural and hulled sesame.

Suitable for small,medium and large scale processor,METKEY color sorting machines are equipped with the latest inspection,lighting and ejection technologies,efficiently removing challenging defects and can be integrated into a milling process ,enabling a fully automated line.

Color Sorter Machine for

1,the complete pulses:Designed for flexibility,Our color sorters are capable of sorting multiple varieties of whole pulses at varying capacity requirements to match a customer's end product requirements.The machine can efficiently remove dis coloured,splits ,spots and foreign material such as stones,sticks and mud balls.

2,whole and split pulses:The Color Sorter effectively remove subtle dis colouration and challenging close color defects such as brown,yellow,chalky ,green and skin spots,delivering premium final product.

3,Seed Spices:METKEY deliver premium export quality final product and ensure the highest standards of food safety are met for a wide range of seed spices by efficiently rejecting discolored defects and foreign material such as stones,sticks and foreign seeds as well as reducing mycotoxin levels.

4,Sesame seeds:Designed to meet various final product demand,METKEY sorters efficiently remove spot defects,discolored defects and FM.Bringing excellent quality products.

Color Sorter Machine for sunflower seeds

Different varieties of sunflower owner seeds such as black, striped or white have varying defects and processing requirements. Using a combination of
Bühler proprietary technologies including Enhanced InGaAs . The sorting sample shown above successfully removed sclerotic,flower heads, xanthium seeds and sticks.

Seeds Color Sorter Parameters

Model	MSRC-1	MSRC-2	MSRC-3	MSRC-4	MSRC-5	MSRC-6	MSRC-7	MSRC-8	MSRC-10	MSRC-12
Channels	64	128	192	256	320	384	448	512	640	768
Capacity(t/h)	1.0-2.0	1.0-4.0	2.0-6.0	3.0-8.0	5.0-10	7.0-12.0	9.0-17.0	11.0-20.0	14-28	17-35
Power(kw)	0.8	1.4	1.8	2.2	2.6	3	3.5	4	5	6
Voltage(V)	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz	110-250V/ 50-60Hz
Sorting accuracy	99.99%	99.99%	99.99%	99.99%	99.99%	99.99%	99.99%	99.99%	99.99%	99.99%
Rejection rate(bad:good)	≧15:1	≧15:1	≧15:1	≧15:1	≧15:1	≧15:1	≧15:1	≧15:1	≧15:1	≧15:1
Dimension(mm)	960*1630* 2050	1340*1630* 2050	1610*1630* 2050	1965*1630* 2050	2225*1290* 1710	2595*1630* 2050	2980*1630* 2050	3350*1630* 2050	2116*2967* 1985	2595*2967* 1985
Air consumption (L/M)	400-800	600-1000	800-1600	1000-1800	1300-2200	1500-3000	1800-3600	2000-4000	2700-5000	2000-4000
Weight(kg)	210	350	600	750	880	1050	1150	1400	1400	1400

METKEY Seed Color Sorter Advantages

1,Near human eye vision color sorting technology, using 16 million colors, brings the best sorting performances

2,Full-color cameras optical system, with dimensional control of the defects, allows 0.1mm optical resolution

3,Image acquisition allows the easy and accurate setting of the defects to remove. Software adjustment is completely automatic thanks to HSV technology

4,Shape-sizing integrated into the system

5,Most concentrated rejects, thanks to customized hi-tech ejectors

6,Highest production capacities, automatically regulated by a feeder control device

7,Possibility to have simultaneous product resort, even with reverse sorting and third sorting.

8,Possibility to add sloping chutes for sorter upgrading or production increase

9,Possibility to install additional cameras operating in NIR and InGaAs even after machine installation at working premises

10,Led lighting system which is digital control

11,Automatic cleaning system, with adjustable frequency and duration

12,Tilting optical boxes, to allow an easy internal access for maintenance operations

13,Airtight optical boxes with controlled temperature

14,Designed mechanics grants the highest hygiene and prevents product outflow or accumulation

15,Provision with de-dusting suction systems

16,14-inches display with full-color and multilingual touch-screen

17,Flexible and user-friendly

18,Reduced electric and compressed air consumption.

19,CE,CSA certification

20,Use best quality components to ensure excellent quality.

21,From one chute to sixteen chutes to meet any different production capacity requirement
