InGaAs technology for optical sorting plastic ,plastic recycling machine

METKEY InGaAs Plastic Optical Sorting Machine could sorter the plastic by color and material type.PET, PVC, PP, PE, PA, PMMA, PS, ABS resin, PC...Although they are all plastics, they are not all the same and cannot be mixed.

In the recycling process, various plastics mixed that are difficult to distinguish by the naked eye ,because the plastics have the same color.

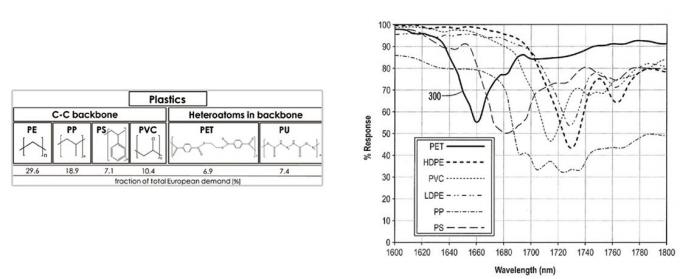

The plastic material sorting machine independently developed by METKEY uses infrared technology to penetrate the plastic deeply, detect the internal composition, and deeply identify various plastics such as PVC and PET. They are classified into categories, and waste is used in an orderly manner. "Green wealth" transformation.

We have optical sorters for plastic by color sorting and material type sorting.

For sorting various of plastic ,we offer four type optical sorter machine for option.

1,RGB chute type optical sorter machine,for example,our RC series which are widely used for sorting plastic flake by color difference.

2,RGB belt type optical sorter machine,we recommend this type machine for plastic granule and irregular shape plastic flake.

3,Infrared type optical sorter.Now this machine are widely used in removing same-in-colour polymer contaminants such as PVC, PP and PE and to reduce other polymers such as PS, PA (Nylon),POM flakes and silicon with unrivalled accept quality and yield for your cleanest and purest PET flake yet.

4,RGB cameras and infrared cameras integrated.The MIGS polymer sorter was graded and has the unique capability to sort PET flake by material and color simultaneously, providing a milestone in the quality and purity of recycled PET output.

Sorting plastic by color and material type,creating green wealth

PET, PVC, PP, PE, PA, PMMA, PS, ABS resin, PC..., they are not all the same and cannot be mixed.In the recycling process, various plastics that are difficult to break with the naked eye are easily mixed and difficult to distinguish.

The plastic material sorting machine independently developed by METKEY uses infrared technology to penetrate the plastic deeply, inspect the internal composition, and deeply identify various plastics such as PVC and PET. "Green wealth"

Our optical sorting solutions maximize your processing capacities and purity of your recycled PET flakes.Our sorters are equipped to remove unwanted colors,metals and foreign materials as well as same-in-color polymer contaminants(PVC,PP and PE)

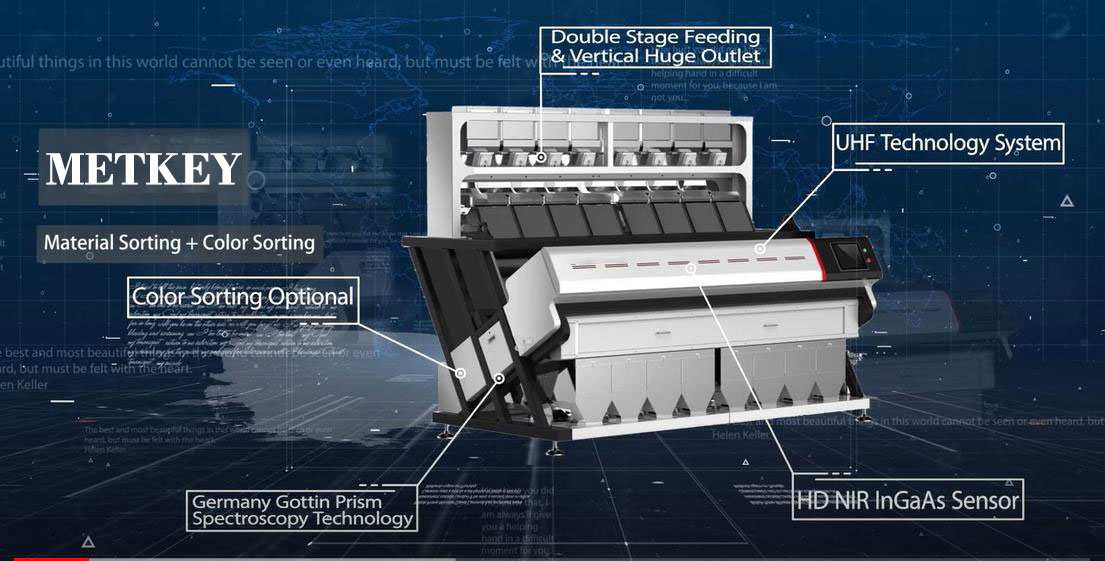

Polymer sorter technical characteristics
1, high-end infrared sorting technology
2, intelligent module design
3. High-speed processing system
4, small difference recognition
5,sort PET flake by material and color simultaneously

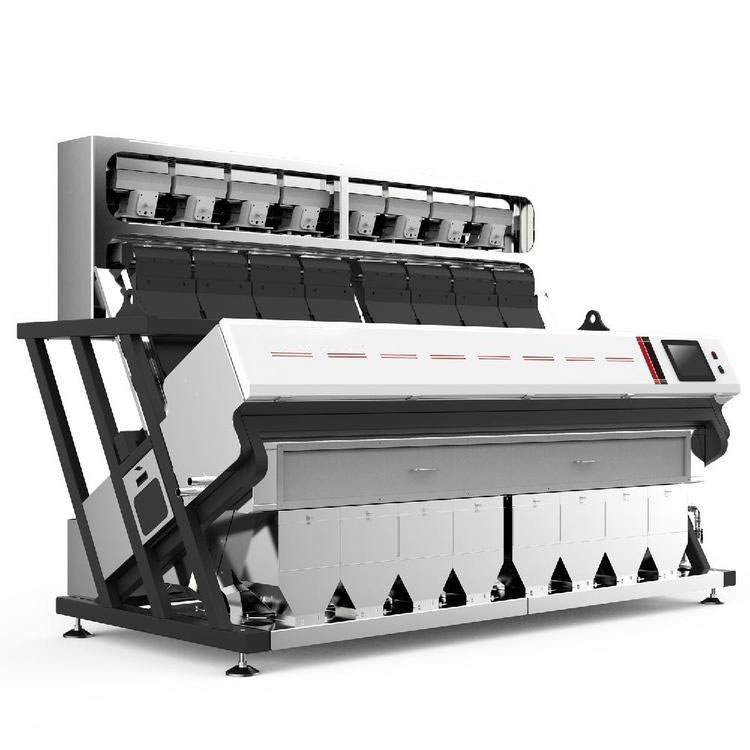

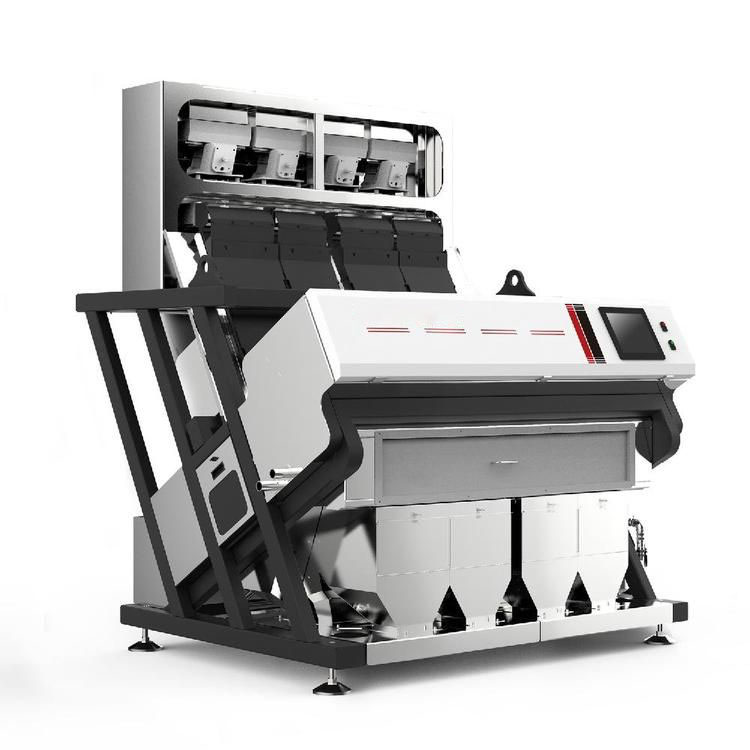

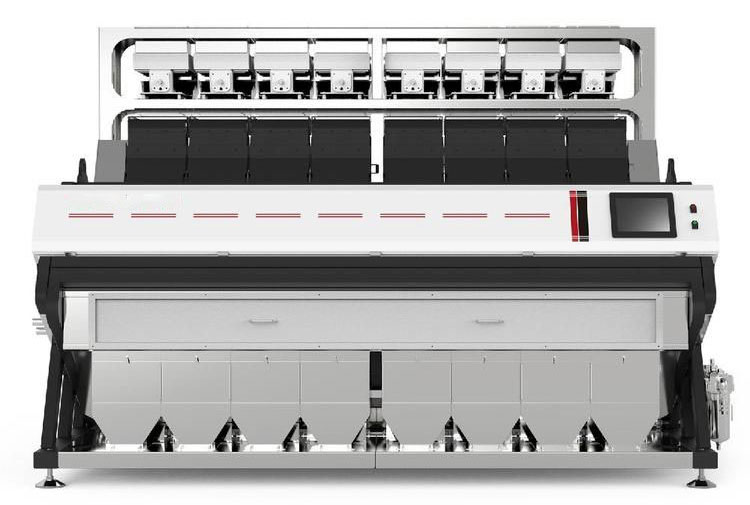

InGaAs Plastic Optical Sorting Specification

Model	MIGS-4	MIGS-5	MIGS-6	MIGS-8
Channels	256	320	384	512
Capacity(t/h)	1.0-2.0	1.3-2..3	1.6-2.6	2.2-3.3
Power(kw)	2.2	2.6	3	4
Voltage(V)	110-250V/50-60Hz	110-250V/50-60Hz	110-250V/50-60Hz	110-250V/50-60Hz
Sorting accuracy	99.99%	99.99%	99.99%	99.99%
Rejection rate(bad:good)	≧10:1	≧10:1	≧10:1	≧10:1
Dimension(mm)	1965*1630*2050	2225*1290*1710	2595*1630*2050	3350*1630*2050
Air consumption(L/M)	1000-1800	1300-2200	1500-3000	2000-4000
Weight(kg)	750	880	1050	1400

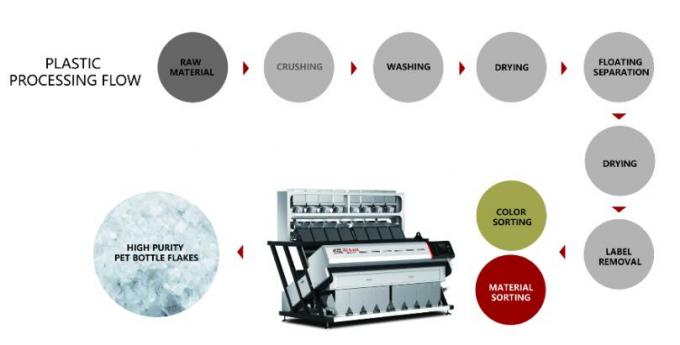

Raw material--Crushing--Washing--Drying--Color Sorting--Infrared optical sorting

If you want a video with your own product ,welcome to send your own sample for testing.
