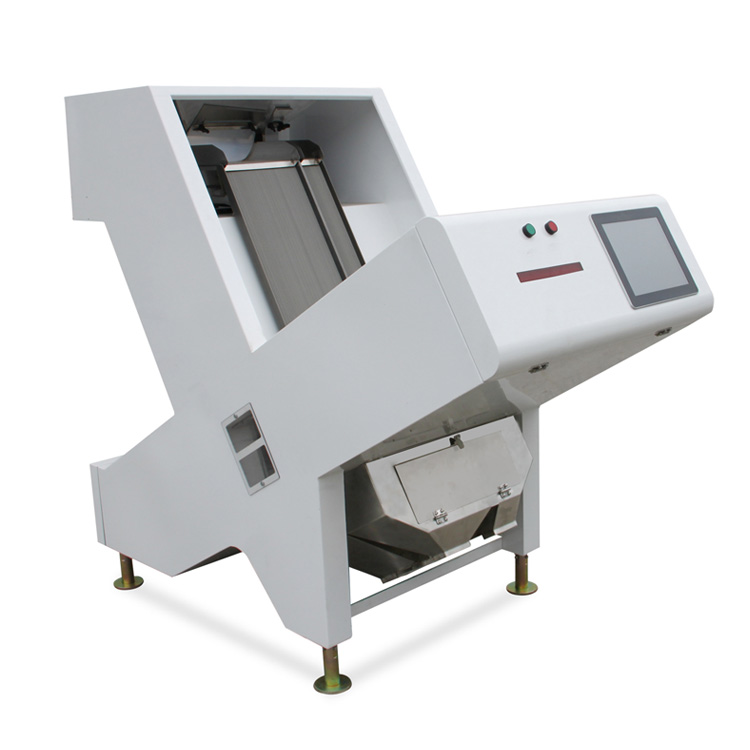

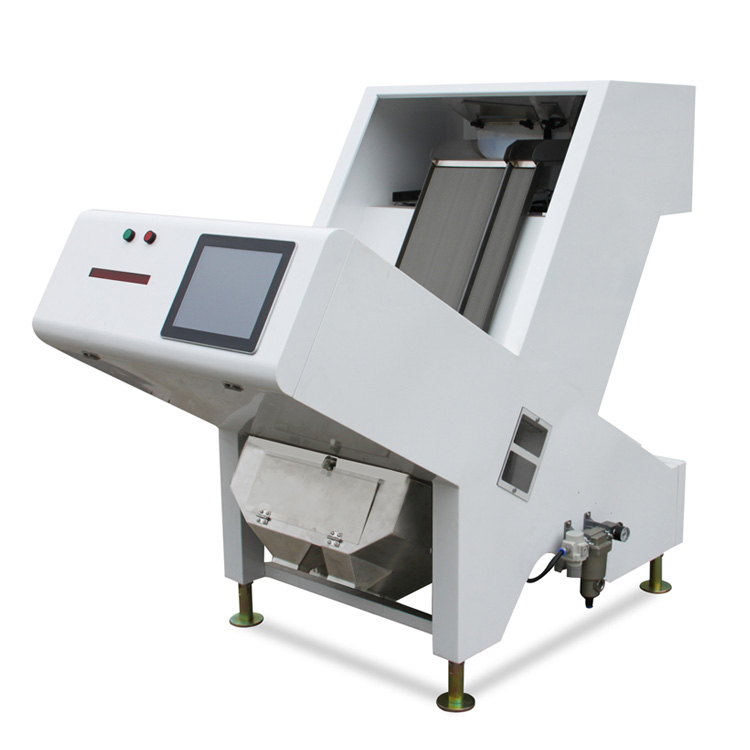

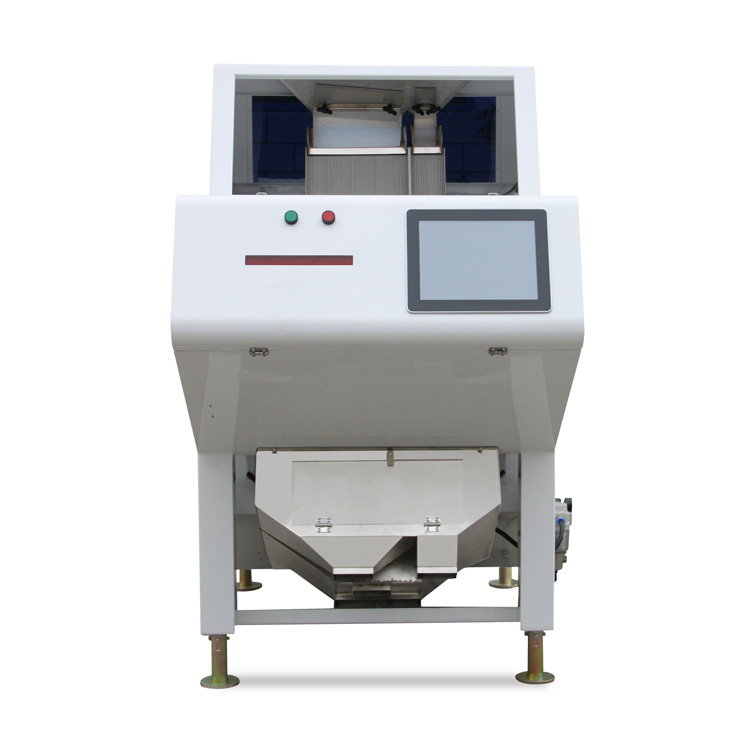

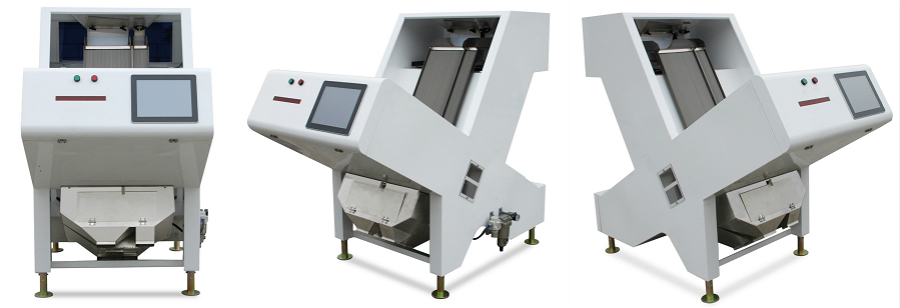

Rice Mini Color Sorter

MKMS 80 is trichromatic intelligent Rice Mini Color Sorter, it can be used for a variety of rice sorting, such as raw rice, parboiled rice, basmati rice, indica rice, japonica rice, broken rice, etc. Equipped with multi-core parallel image processing system, small structure with big ability.

Highlights:

Ultra-wide angle low distortion high speed lens
Super alloy high frequency ejector with 15 billion times working cycles
Size Sorting is available
High performance to cost, friendly to small scale millers

Double sorting is available

Rice Mini Color Sorter Parameter:

Model	Ejector(No.)	Chute(No.)	Power(Kw)	Voltage(V)	Air Pressure(Mpa)	Air Consumption(m³/min)	Weight (Kg)	Dimension(L*W*H,mm)
MKMS 80	80	1	＜0.8	AC220V	0.6~0.8	＜0.8	270	873*1670*1514

Rice Mini Color Sorter Features:

1) The particular light difference sorting model works great on the light yellow, speckled and dark rice. The first time sorting effect can reach 1:1, the recycling carryover can reach 20:1, and it can reject the difference without rejecting the chalky rice. This technique is absolutely the most advanced in this industry.
2) Under the chalky model, the first time sorting carryover is above 1:1, the recycling carryover is above 50:1.

3) The top Altera™ Cyclone V-Gen DSP+FPGA process technique ensures the high working efficiency and accurate calculating, and it is easy to be ungraded and maintained.
4) Top international 5400 high-speed HD CCD image sensors and tailor-made Japanese cameras make sure that 0.02mm tiny scab can be precisely identified.

5) The newest smart adjustable LED cold light sources with no shadow make the recognition easier and the sorting more precise, and it is endowed with long serving life and no need to preheat.
6) The LED air cooling system significantly increases the service life of LED.

7) The only one in this industry who own intellectual property on the ejectors, our ejectors are made of special high strength super alloy, it has the advantages of strong sucking ability, no residual magnetism, linear flow, precise blow, high consistency, the t working frequency can reach 1250HZ per second, and the service life can reach 15 billion times. They can greatly decrease the carryover, cut 20%-30% of air consumption.

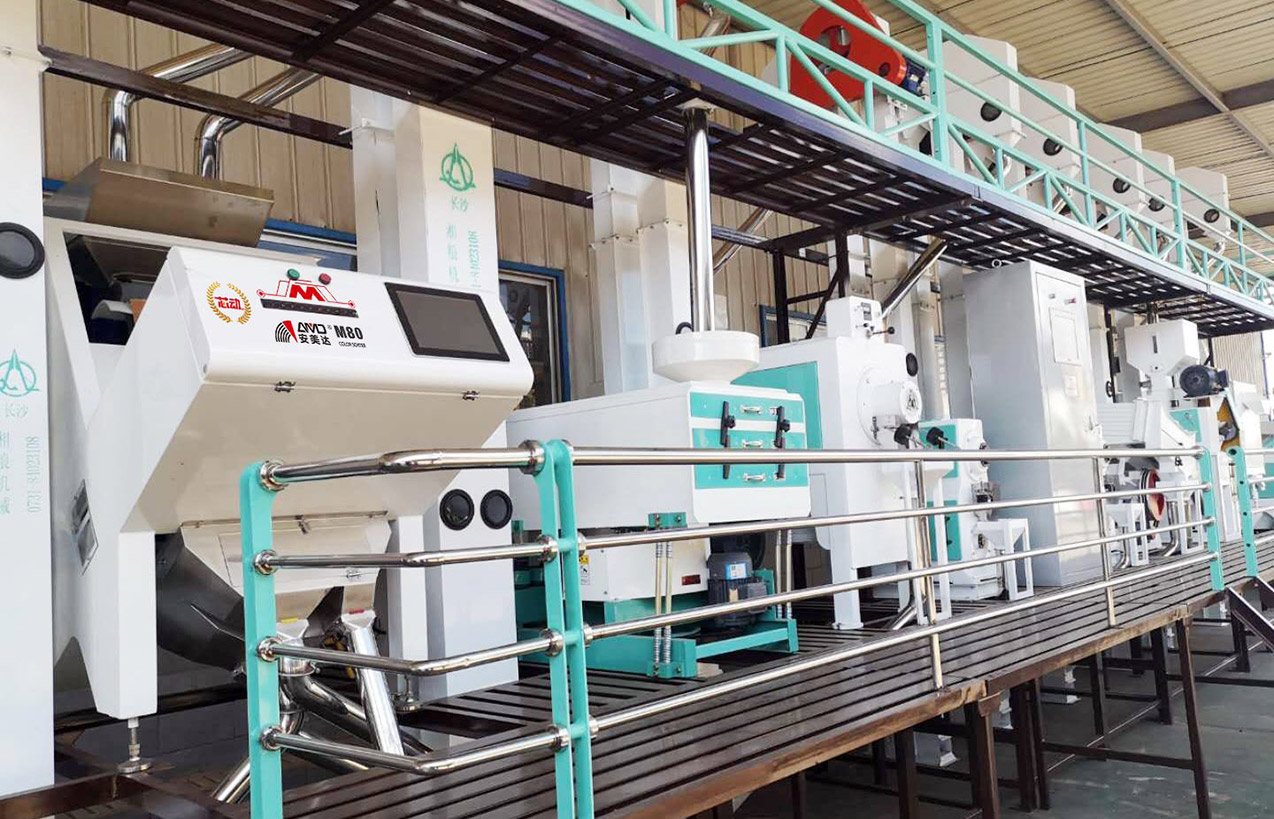

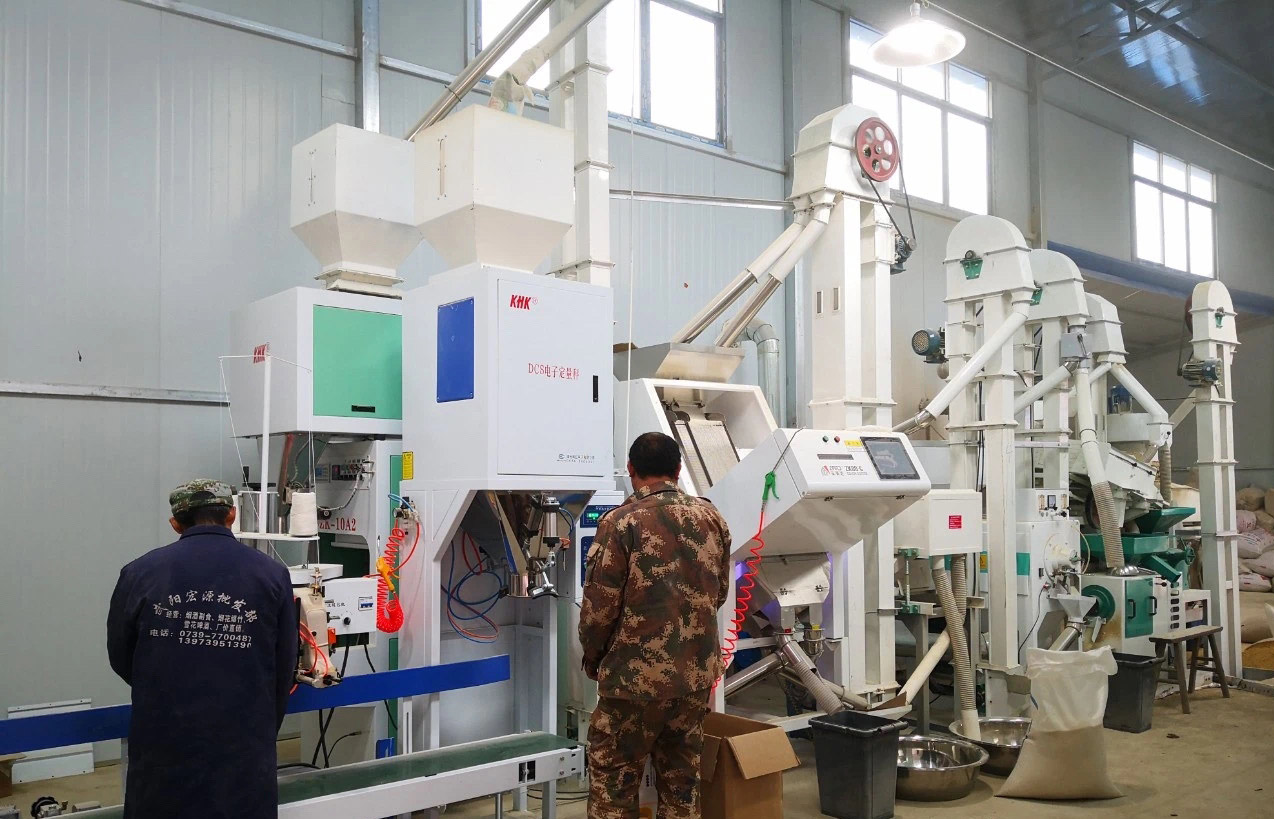

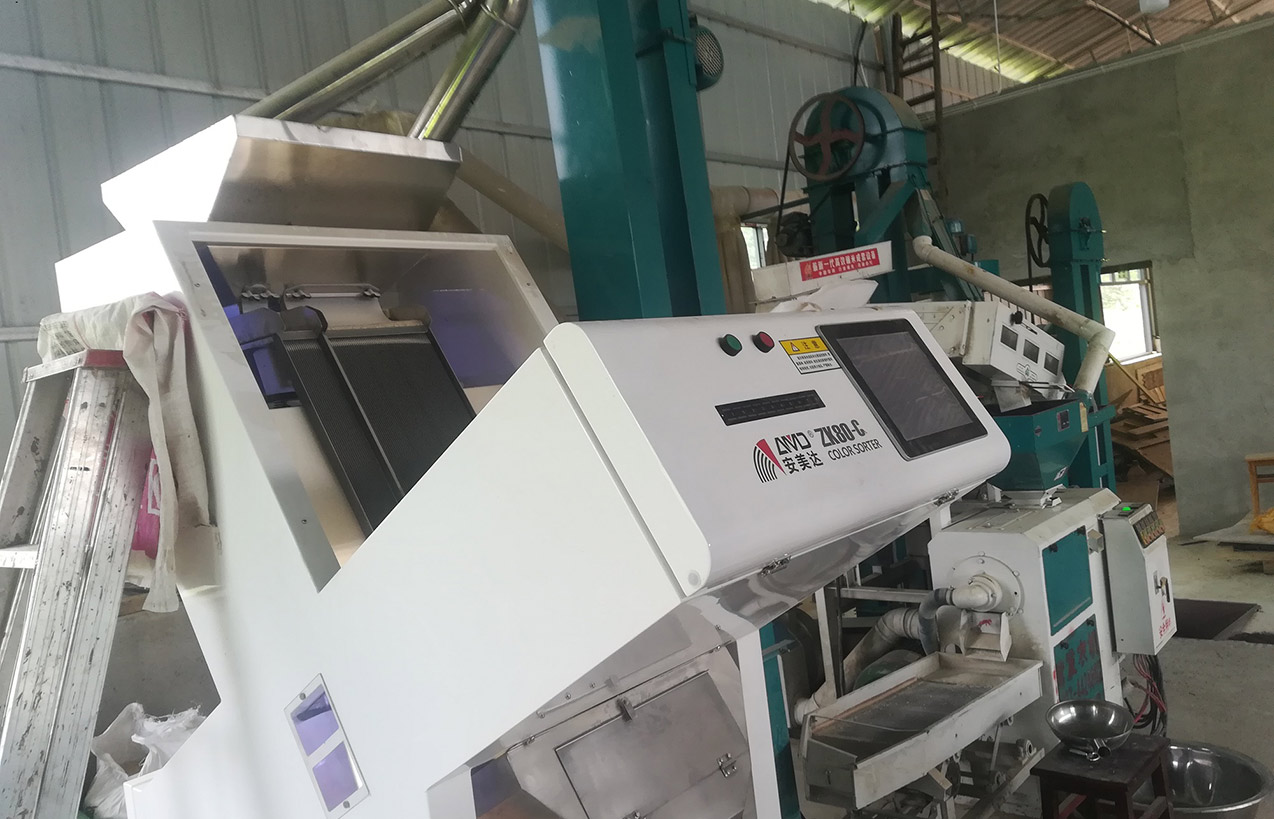

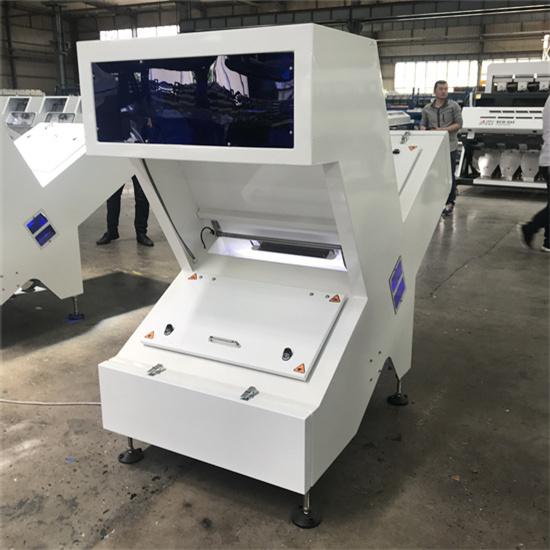

Customer Choose METKY Rice Mini Color Sorter

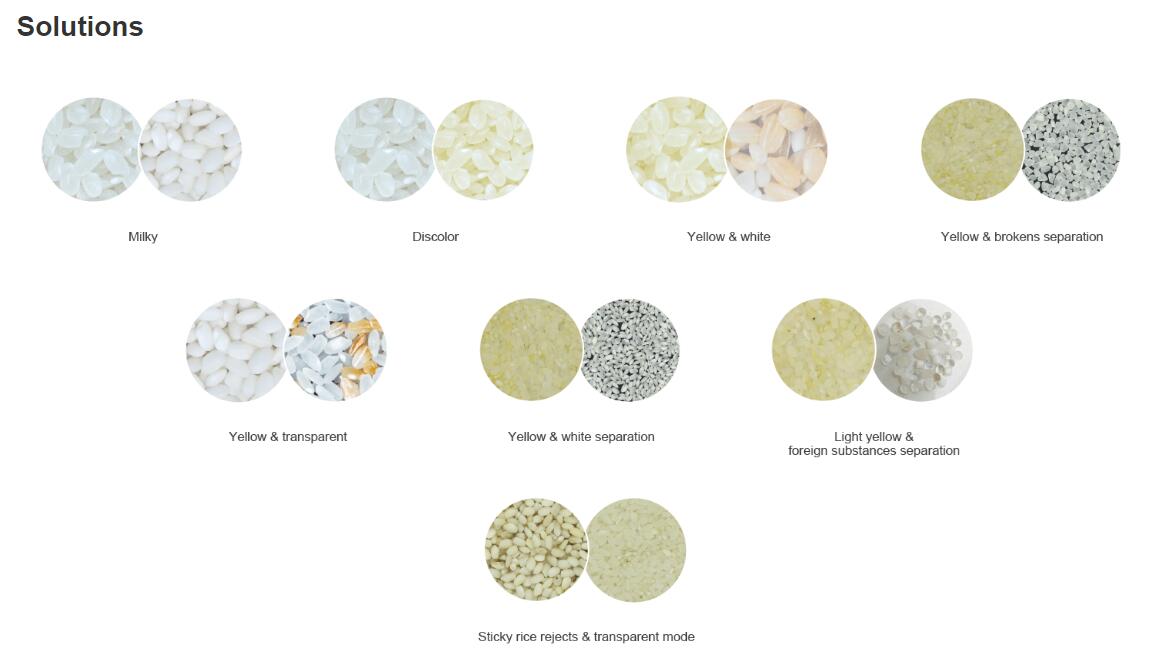

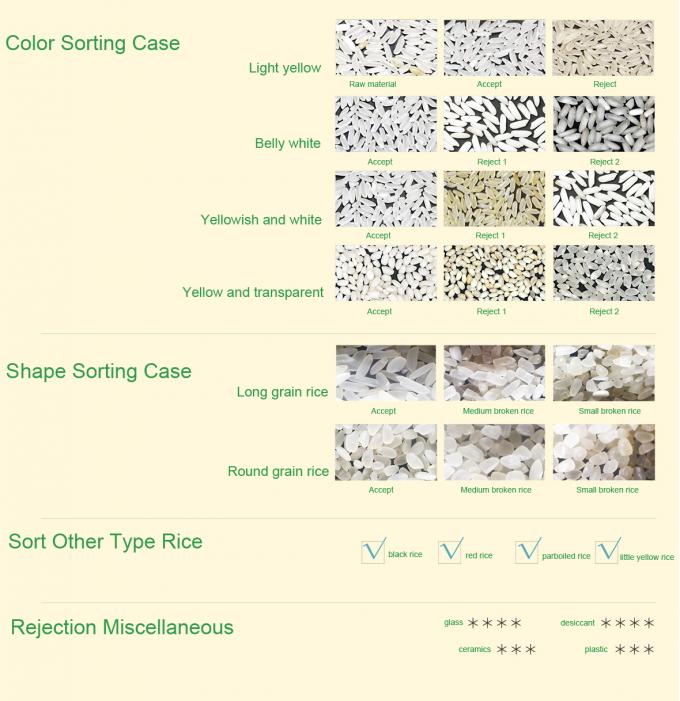

Customer Material Sorting With METKY Rice Mini Color Sorter
